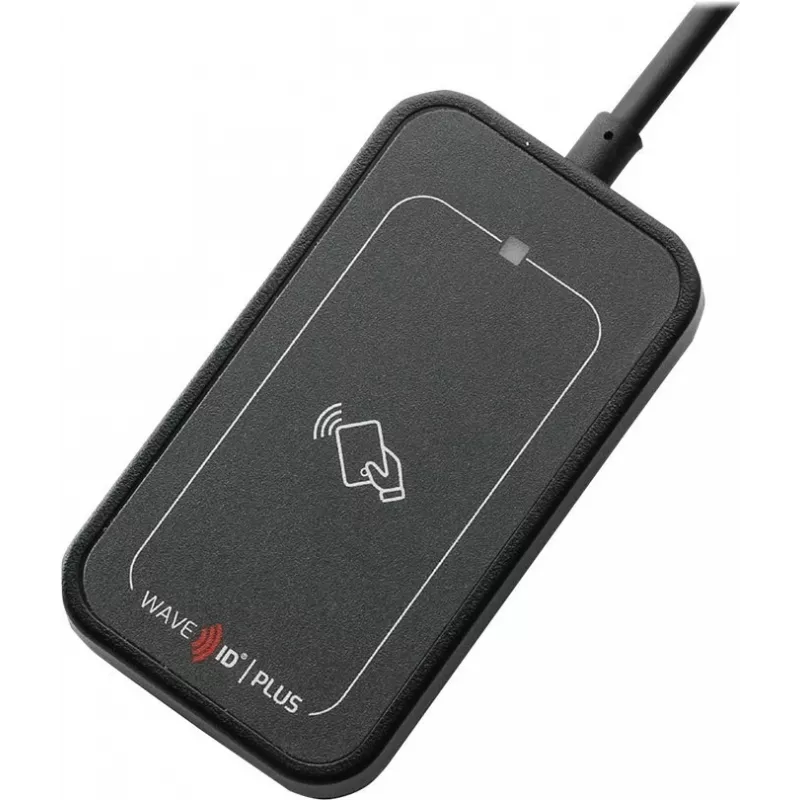

RF IDeas WAVE ID Plus Mini Keystroke iClass ID/SE/SEOS Lector USB negro

In a busy hospital ward, a nurse taps an iCLASS SE badge on a compact black reader mounted at a workstation, and the patient record instantly appears on the screen. That’s the RF IDEAS WAVE ID Plus Mini in action—a keystroke emulation reader that turns contactless smart cards into keyboard input, eliminating manual logins and boosting workflow efficiency.

Key specifications

• Reader type: Contactless smart card reader with keystroke emulation (keyboard wedge)
• Interface: USB 2.0, bus-powered (no external power supply needed)
• Supported frequencies: 13.56 MHz
• Card compatibility: iCLASS SE, Seos, iCLASS, MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa, PIV, CAC
• Form factor: Mini desktop or mountable, black ABS plastic housing
• Indicators: Dual-color LED and audible beeper
• Read range: Up to 3 inches (7.6 cm)
• Operating systems: Windows, macOS, Linux, Android (driverless)
• Operating temperature: 0°C to 60°C (32°F to 140°F)
• Storage temperature: -30°C to 65°C (-22°F to 149°F)
• Humidity: 5% to 95% relative humidity, non-condensing
• Certifications: FCC, CE, RoHS, IC, RCM
• Mounting: Adhesive pads included

Why choose it

This reader is built for reliability and simplicity. Its keystroke emulation means no special software or drivers—just plug it in and it works like a keyboard, typing card data directly into any application. The compact, durable design fits tight spaces, and the dual-color LED plus beeper give clear feedback for every read. Field-upgradeable firmware ensures compatibility with evolving card technologies.

Ideal use cases

• Healthcare: Secure single sign-on for electronic medical records at nursing stations and carts.
• Enterprise: Employee badge authentication for Windows workstations and shared computers.
• Government: PIV/CAC card login for secure access to federal systems.
• Retail & hospitality: Time and attendance tracking at point-of-sale terminals.
• Education: Library and lab access control with student ID cards.

Good to know

The WAVE ID Plus Mini supports a wide range of 13.56 MHz credentials, including high-security Seos and iCLASS SE, making it future-proof for organizations migrating to more secure card technologies. Since it’s USB bus-powered, there’s no extra cable clutter. For mounting, adhesive pads are included, allowing quick installation on monitors, desks, or medical carts.
