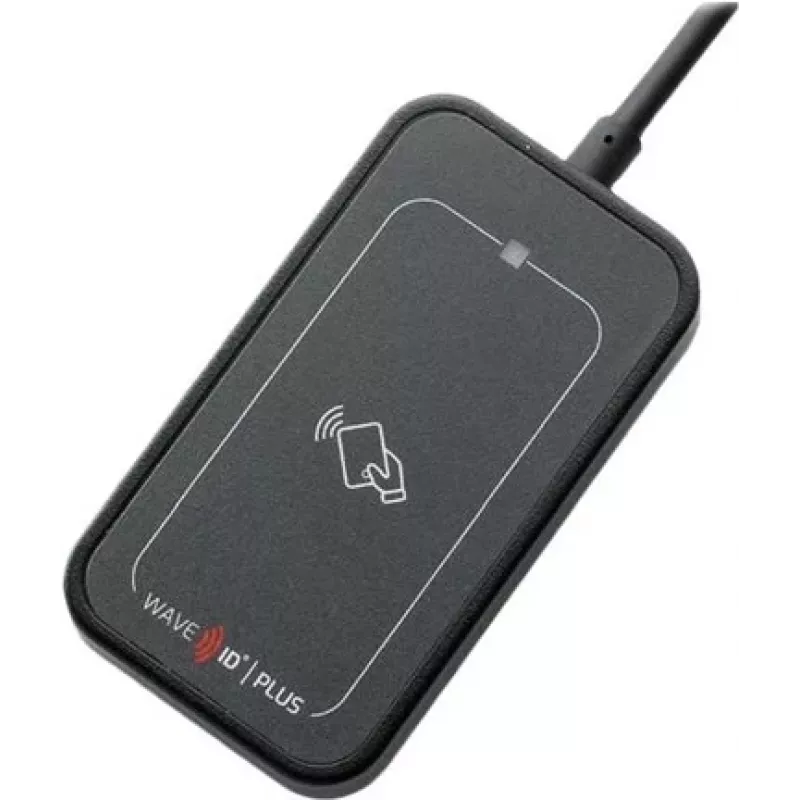

RF IDeas WaveID Plus con Mifare Secure Black Keystroking USB

Equipped with an integrated MIFARE Secure Access Module (SAM), this reader delivers hardware-grade encryption and mutual authentication for contactless smart cards, making it a standout choice for high-security environments. The RF IDeas WaveID Plus supports both 125 kHz proximity and 13.56 MHz smart card technologies, covering HID Prox, MIFARE Classic, DESFire, and more, all through a simple USB keyboard emulation interface.

Overview

The WaveID Plus is a multi-technology reader that bridges legacy proximity cards and modern smart cards. It connects via USB and emulates a keyboard, so card data appears as typed text in any application—no drivers or software installation required. The black ABS housing is durable and discreet, with a multi-color LED and audible buzzer for clear user feedback. Power is drawn entirely from the USB port, eliminating the need for external power supplies.

What stands out

• MIFARE Secure Access Module (SAM) for encrypted card authentication
• Dual-frequency support: 125 kHz proximity and 13.56 MHz contactless smart cards
• Keyboard emulation works with Windows, macOS, Linux, and even Android/iOS with OTG
• Configurable output modes (keyboard, serial ASCII, CCID) via free utility
• Compact, rugged design with integrated cable and mounting options

Technical details

• Supported cards: HID Prox, AWID, EM410x, Indala, GE/CASI ProxLite, Pyramid, MIFARE Classic, MIFARE DESFire, MIFARE Ultralight, FeliCa, ISO 14443 A/B, ISO 15693, NFC Forum Tag Types 1-4
• Interface: USB 2.0 (keyboard emulation, serial ASCII, or CCID)
• Read range: up to 7.6 cm (3 inches) depending on card type and environment
• LED indicators: multi-color (red/green/amber) for status
• Buzzer: integrated audible feedback
• Housing: ABS plastic, black
• Operating temperature: 0°C to 60°C (32°F to 140°F)
• Operating humidity: 5% to 95% non-condensing
• Certifications: FCC, CE, IC, RoHS
• Firmware upgradable via RF IDeas Universal Configuration Utility

Our verdict

The WaveID Plus is a versatile and secure card reader that bridges legacy and modern credentials. Its keyboard emulation makes integration effortless, while the SAM support adds a layer of security rarely found in similar devices. Ideal for enterprise single sign-on, logical access, and time & attendance applications.
