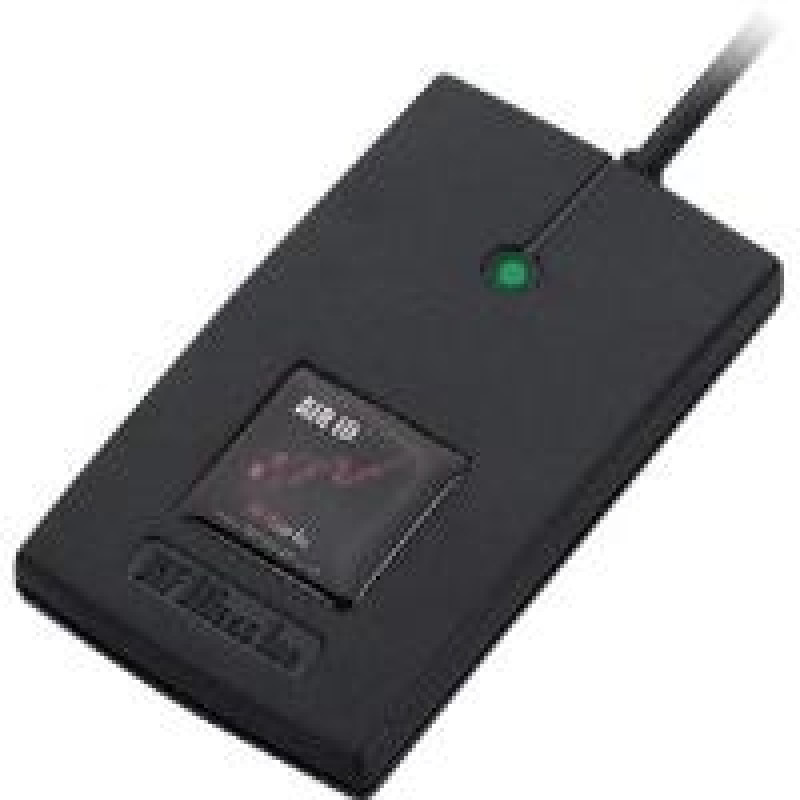

RF IDeas WAVE ID Solo Keystroke CSN negro lector

In a busy hospital ward, a nurse taps an employee badge on a small black reader attached to a workstation. Instantly, the computer logs in—no typing, no delays. That's the RF IDeas WAVE ID Solo Keystroke CSN Reader in action. This compact USB device reads the card serial number (CSN) from contactless smart cards and sends it to the computer as keystrokes, making it compatible with virtually any application that accepts keyboard input. It's a simple, secure way to add badge authentication to your existing systems.

Key specifications

• Reader type: Contactless smart card reader (CSN/UID only)
• Output format: Keystroke (keyboard emulation)
• Interface: USB HID (plug-and-play, no drivers needed)
• Supported frequencies: 13.56 MHz (HF)
• Card technologies: MIFARE Classic, MIFARE DESFire, FeliCa, ISO 14443 A/B, ISO 15693, iCLASS (CSN only)
• Read range: Up to 5 cm (2 inches)
• Indicators: Multi-color LED and audio beeper
• Colour: Black
• Form factor: Desktop or mountable
• Power: USB bus powered
• Cable length: 1.8 m (6 ft)
• Operating temperature: 0°C to 60°C (32°F to 140°F)
• Operating humidity: 5% to 95% non-condensing
• Certifications: FCC, CE, IC, RoHS, WEEE
• OS compatibility: Windows, macOS, Linux, Android (HID)
• Housing material: ABS plastic

Why choose it

This reader eliminates the need for complex middleware or custom software. Because it emulates a keyboard, it works with any application that accepts typed input—from electronic health records to time and attendance systems. The multi-color LED and beeper provide clear user feedback, while the rugged ABS housing ensures durability in high-traffic areas. Whether mounted on a wall or placed on a desk, it blends seamlessly into any environment.

Ideal use cases

• Healthcare: Secure single sign-on for clinicians at workstations
• Manufacturing: Employee logon for shop floor terminals
• Retail: Cashier identification at point-of-sale systems
• Education: Library or lab access control
• Corporate: Visitor management and secure printing

Good to know

The WAVE ID Solo reads only the card's serial number, not encrypted data, making it ideal for applications where a simple unique identifier is sufficient. It requires no external power adapter and is fully USB powered. Installation is truly plug-and-play: connect it, and it's ready to read cards. For mounting, the device includes slots for screws or adhesive pads (not included).
