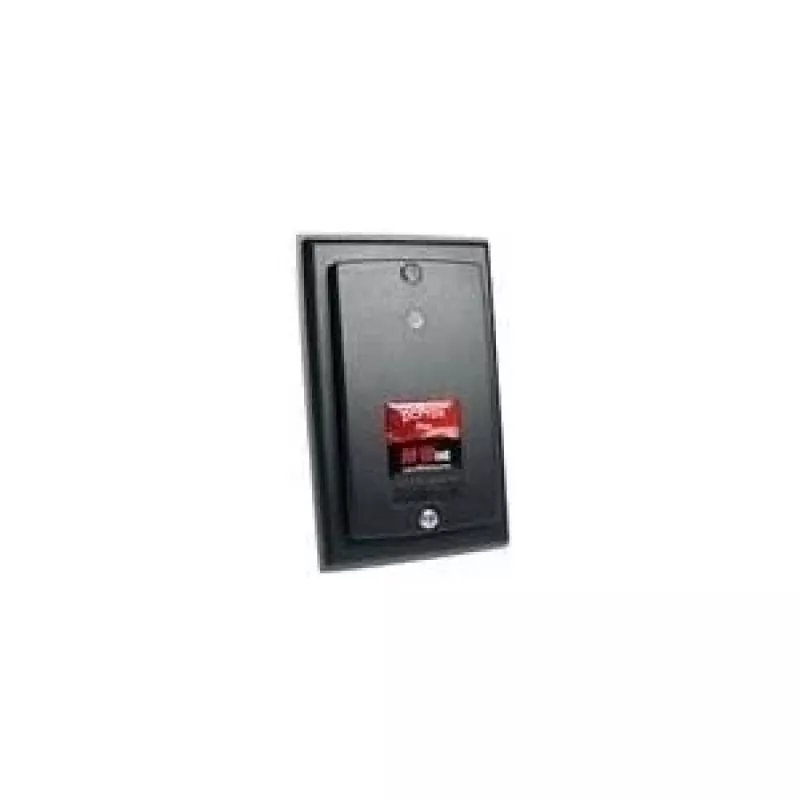

RF IDeas WAVE ID Plus Keystroke RA FactoryTalk negro montaje en superficie IP67 lector

For industrial environments where dust, moisture, and rough handling are daily realities, this reader stands apart by combining IP67-rated protection with native Rockwell Automation FactoryTalk integration. Unlike generic USB badge readers, it delivers keystroke emulation that works instantly with any HID-compatible software—no drivers, no middleware—while supporting both 125 kHz proximity and 13.56 MHz contactless smart card technologies in a single compact unit.

Highlights

• IP67 sealed housing: dust-tight and protected against temporary immersion, ideal for factory floors, warehouses, and outdoor kiosks.
• Dual-frequency multi-technology: reads HID Prox, EM410x, Indala, AWID at 125 kHz, plus MIFARE Classic, MIFARE DESFire, iCLASS, FeliCa, and NFC at 13.56 MHz.
• USB keyboard emulation: plug into any Windows, macOS, Linux, or Android host and card data appears as keystrokes in your existing application.
• Rockwell Automation FactoryTalk ready: seamless integration with FactoryTalk View, AssetCentre, and other RA software for badge-based authentication and data capture.
• Rugged surface-mount design with integrated 1.8 m (6 ft) USB cable and multi-color LED plus audible buzzer for clear user feedback.

In daily use

Mount the reader at a machine control station, time clock, or secure access point. Operators simply present their existing corporate badge—whether HID Prox, iCLASS, or MIFARE DESFire—and the reader instantly sends the badge ID to the host as if typed on a keyboard. The multi-color LED and buzzer confirm a successful read, even in noisy environments. Because the unit is IP67-rated, it withstands washdowns, dust, and temperature swings from -30°C to 65°C, making it a reliable choice for demanding industrial automation and access control applications.

Full specifications

• Brand: RF IDEAS
• Model: KT-805W1AKU-RA-IP67
• MPN: KT-805W1AKU-RA-IP67
• Reader type: Multi-technology proximity and smart card reader
• Output interface: USB (keystroke emulation / HID keyboard)
• Integration: Rockwell Automation FactoryTalk
• Mounting type: Surface mount
• Environmental protection: IP67 (dust-tight, protected against temporary immersion)
• Product colour: Black
• Supported frequencies: 125 kHz, 13.56 MHz
• Supported 125 kHz technologies: HID Prox, EM410x, Indala, AWID
• Supported 13.56 MHz technologies: MIFARE Classic, MIFARE DESFire, iCLASS, FeliCa, NFC
• Operating voltage: 5V DC (via USB)
• Operating temperature: -30°C to 65°C (-22°F to 149°F)
• Operating relative humidity: 5% to 95% non-condensing
• Indicators: Multi-color LED, audible buzzer
• Firmware: Field upgradable
• Cable type: Integrated USB cable
• Cable length: 1.8 m (6 ft)
• Compatibility: Windows, macOS, Linux, Android (any OS supporting USB HID)
• Certifications: FCC, CE, RoHS, IC
• Security features: Secure communication protocols

Final note

Engineered for harsh industrial settings and seamless Rockwell Automation integration, the WAVE ID Plus IP67 reader delivers reliable, driver-free badge reading with dual-frequency flexibility—backed by RF IDEAS' proven expertise in secure identification.
