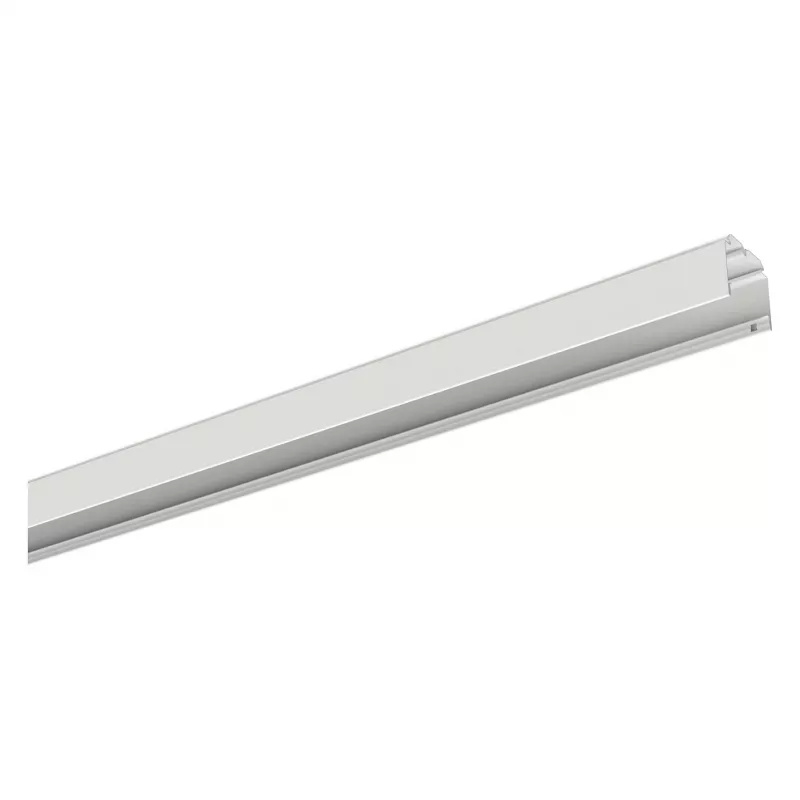

Carril eléctrico RIDI VL2TM 3000-7 para sistemas de luminarias continuas, 7 polos, 2,5 mm², blanco, 3000 mm

Conventional per-luminaire wiring adds time and clutter to long light lines. This 3000 mm continuous-row trunking rail from RIDI changes that with an integrated 7-pole busbar and 2.5 mm² conductors running the entire length. Compatible VL2TM luminaires simply click into place and connect electrically without individual cabling, cutting on-site installation time dramatically.

Highlights

• Integrated 7-pole busbar with 2.5 mm² conductors for reliable power delivery
• Pre-wired design eliminates per-luminaire cabling and speeds up installation
• Compatible with the RIDI VL2TM continuous-row lighting system
• White powder-coated steel sheet for corrosion resistance and a neutral look
• IP20 rating for indoor use; supports surface-mounted and suspended configurations with accessories
• 3000 mm length covers large spans with fewer joints; low profile of 64 x 54 mm

In daily use

This trunking rail is the backbone for long, uninterrupted light lines in offices, retail spaces, and workshops. Its pre-wired 7-pole system means a single rail can feed multiple luminaires, and the 3000 mm length minimizes the number of joints required. The white finish blends with most ceiling types, and the steel construction holds up to daily wear. For suspended installations, compatible mounting accessories (sold separately) allow the rail to be hung at the desired height. The rail is rated for 230/400 V and carries CE certification.

Full specifications

• Product Type: Trunking Rail / Continuous-Row Lighting System Rail
• System Compatibility: RIDI VL2TM Continuous-Row Lighting System
• Number of Conductors: 7-pole
• Conductor Cross-section: 2.5 mm²
• Color: White
• Material: Steel Sheet
• Surface Finish: Powder-coated
• Mounting Type: Surface-mounted, Suspended (with accessories)
• Length: 3000 mm
• Width: 64 mm
• Height: 54 mm
• Protection Class (IP): IP20
• Rated Voltage: 230/400 V
• Application: Indoor Lighting Installations
• Pre-wired: Yes
• Connection Type: Internal wiring for luminaire insertion
• System Design: For creating continuous light lines
• Certification: CE

Final note

For efficient continuous-row lighting, this RIDI trunking rail delivers a pre-wired, click-in solution that saves time and reduces wiring complexity.
