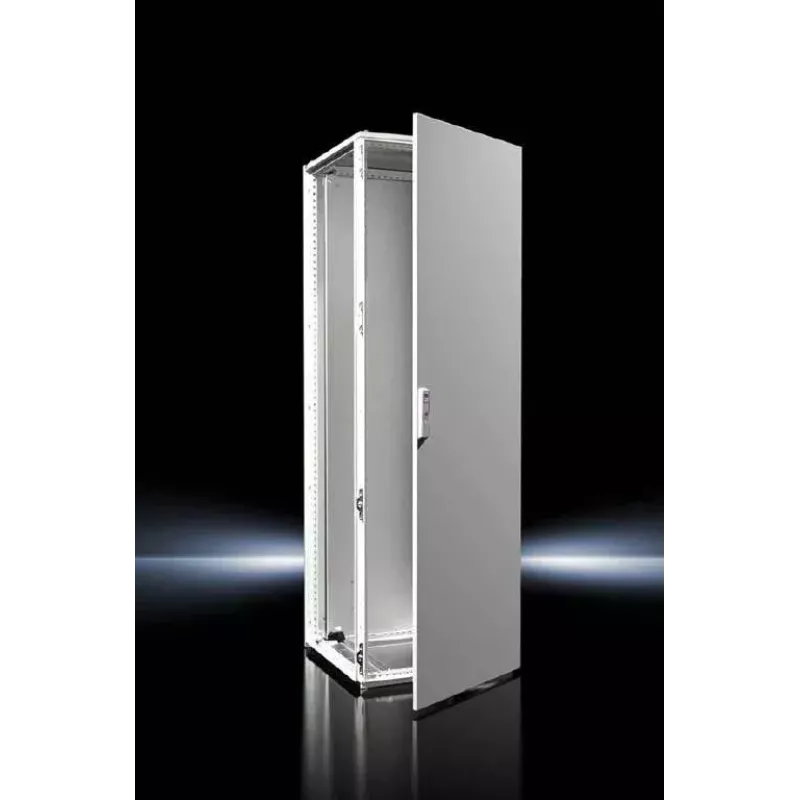

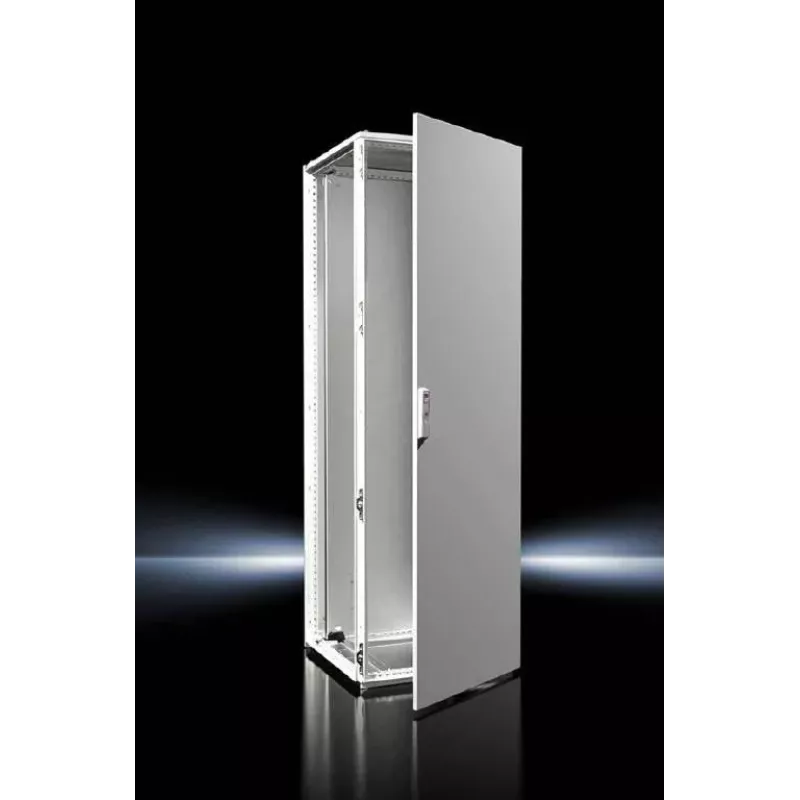

Rittal 8686.000 - marco de carcasa exento - 92,3 kg - gris claro (RAL 7035)

The Rittal 8686.000 is a high-quality freestanding enclosure frame from the TS 8 system, designed for industrial automation, IT infrastructure, and power distribution applications. This robust frame provides a solid foundation for building customized enclosures with IP55/NEMA 12 protection when fully assembled with compatible panels.

Advantages

Welded frame construction with symmetrical profile ensures maximum stability and load capacity. The frame is dip-primed and powder-coated for excellent corrosion resistance. Two internal mounting levels (front and rear) with adjustable vertical mounting rails offer flexible equipment installation. Integrated transport eyes simplify handling and positioning.

Suitable for

• Industrial automation control cabinets
• IT and network infrastructure enclosures
• Power distribution and electrical systems
• Server and data center applications

Key specifications

• Product Type: Freestanding Enclosure Frame
• Series: Rittal TS 8
• Material: Sheet steel
• Colour: Light Grey (RAL 7035)
• Static Load Capacity: 1500 kg (surface-mounted)
• Weight: 92.3 kg
• Surface Finish: Frame: dip-primed; Roof: dip-primed, powder-coated
• Supply Includes: Frame, roof plate, 4 transport eyes
• Compatibility: Rittal TS 8 system accessories, doors, side panels, plinth systems (sold separately)
• Certifications (System): UL, cUL, TÜV, Germanischer Lloyd

Recommendations

For a complete enclosure, combine this frame with Rittal TS 8 doors, side panels, and plinth systems. Ensure proper grounding and ventilation according to your application requirements.
