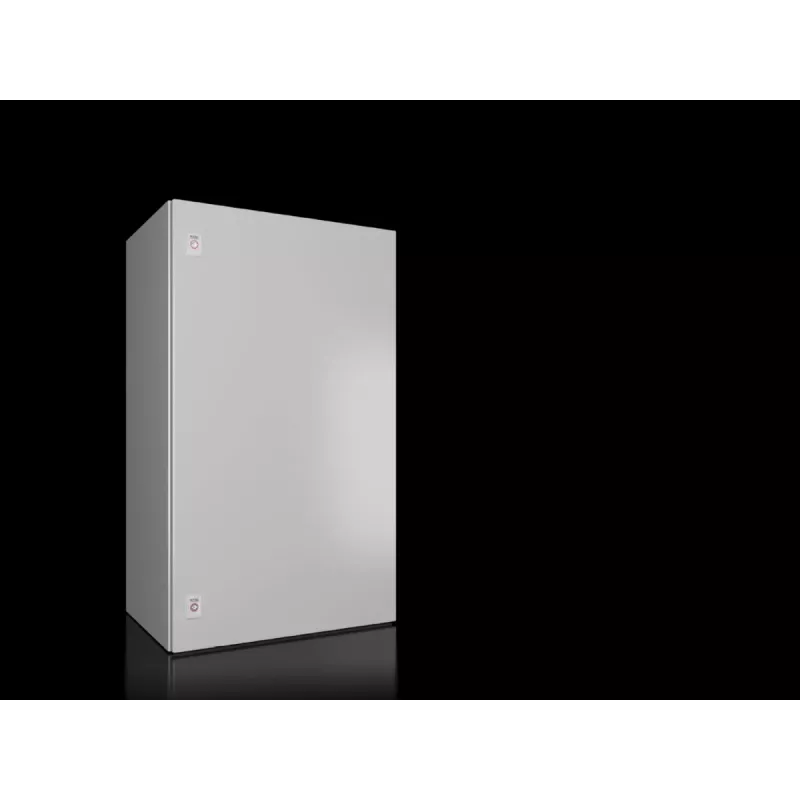

RITTAL AX 1091.000 caja compacta, montaje en pared, chapa de acero, IP66, 1000x600x210 mm, gris claro

Compact enclosure with wall-mounting capability, offering robust protection for electrical components in industrial environments. The single-door design provides convenient access while maintaining a secure seal against dust and water ingress.

Advantages

Constructed from sheet steel with a dip-primed, powder-coated finish in RAL 7035 light grey, this enclosure delivers durability and corrosion resistance. The included zinc-plated mounting plate simplifies component installation, and the multi-variable gland plate allows flexible cable entry.

Suitable for

• Industrial control systems
• Electrical distribution
• Machine building
• Automation applications

Key specifications

• Material: Sheet steel, 1.25 mm enclosure, 1.5 mm door
• Mounting plate: Zinc-plated, 2.5 mm thickness, included
• Lock type: 3 mm double-bit
• Door opening angle: 130°
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, EAC, VDE

Recommendations

Ideal for wall-mounted installations requiring a compact, high-protection enclosure with easy component mounting and flexible cable management.
