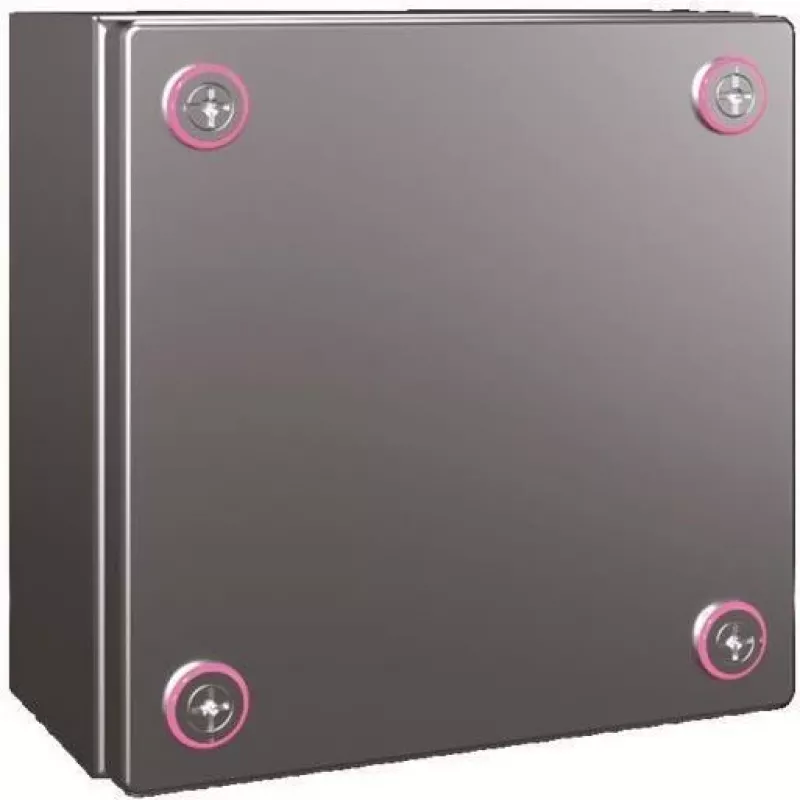

Rittal KX 1565.000 caja de pared, 200 x 200 x 120 mm, acero, gris claro

In industrial control panels and machine wiring, a compact sealed enclosure is essential to protect electrical components from dust and moisture. The Rittal KX 1565.000 provides a robust steel housing for wall-mounted installations in factories, workshops, and outdoor applications where space is limited.

Key specifications

• External dimensions: 200 x 200 x 120 mm (W x H x D)
• Material: Sheet steel, 1.25 mm thick
• Protection rating: IP66 / NEMA 4
• Colour: RAL 7035 light grey, powder-coated
• Door: Hinged right, reversible, with cam lock (3 mm double-bit)
• Mounting plate included, zinc-plated, 2.0 mm thick
• Gland plate included in base

Why choose it

This enclosure offers high protection against dust and water jets, making it suitable for harsh environments. The reversible door and included mounting plate simplify installation and component layout. Its compact size fits tight spaces while still providing ample room for terminal blocks, small controllers, or relays.

Ideal use cases

• Housing small electrical controls and instrumentation
• Protecting connections in outdoor or washdown areas
• Wall-mounted distribution points in machinery

Good to know

The enclosure is part of the Rittal KX series, known for its modular design and compatibility with a wide range of accessories. It meets international approvals including UL, cUL, and TÜV.
