Rittal PLS Conector de expansión SV 9320.060 Conector de expansión de cobre para barra colectora PLS 800

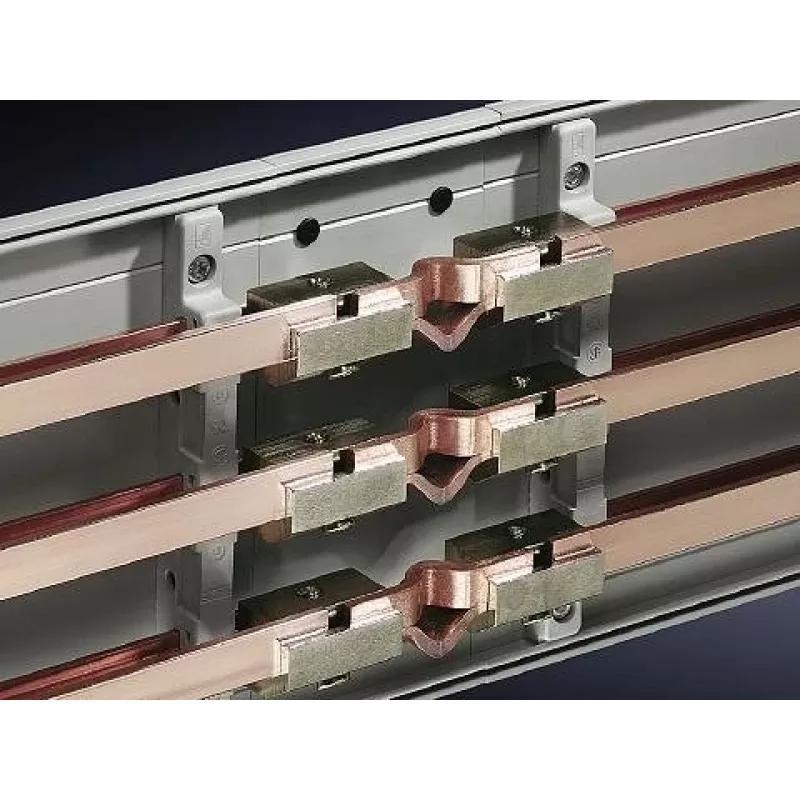

Rittal PLS Dehnverbinder SV 9320.060 copper expansion connector for PLS 800 busbar is a precision-engineered metallic link intended to accommodate thermal expansion and maintain reliable electrical continuity in PLS 800 busbar systems. Designed for use in switchgear, distribution enclosures and industrial panel assemblies, this copper expansion connector provides a stable mechanical and conductive connection between busbar segments while allowing controlled movement under temperature variation.

Advantages

The copper construction ensures good electrical conductivity and corrosion resistance for long-term performance. The expansion connector design compensates for thermal expansion and mechanical stresses, reducing mechanical strain on busbar joints and helping to preserve alignment. Its form factor suits compact enclosure layouts and enables straightforward integration with PLS 800 busbar components.

Suitable for

Key specifications

How to use

Install the expansion connector inline between PLS 800 busbar segments at the designated joint location following standard electrical assembly procedures. Ensure correct alignment and secure mechanical fastening to both busbar ends, observing recommended torque values and insulating clearances specified for the PLS 800 system. Verify electrical continuity and mechanical movement allowance after installation, and perform routine inspections as part of panel maintenance.

Recommendations

Use this copper expansion connector only with compatible PLS 800 busbar components and within the environmental and current-carrying limits of the overall installation. Follow relevant electrical safety standards and the PLS system installation guidelines to ensure proper mechanical fixation, torque settings and sufficient creepage/clearance distances.
