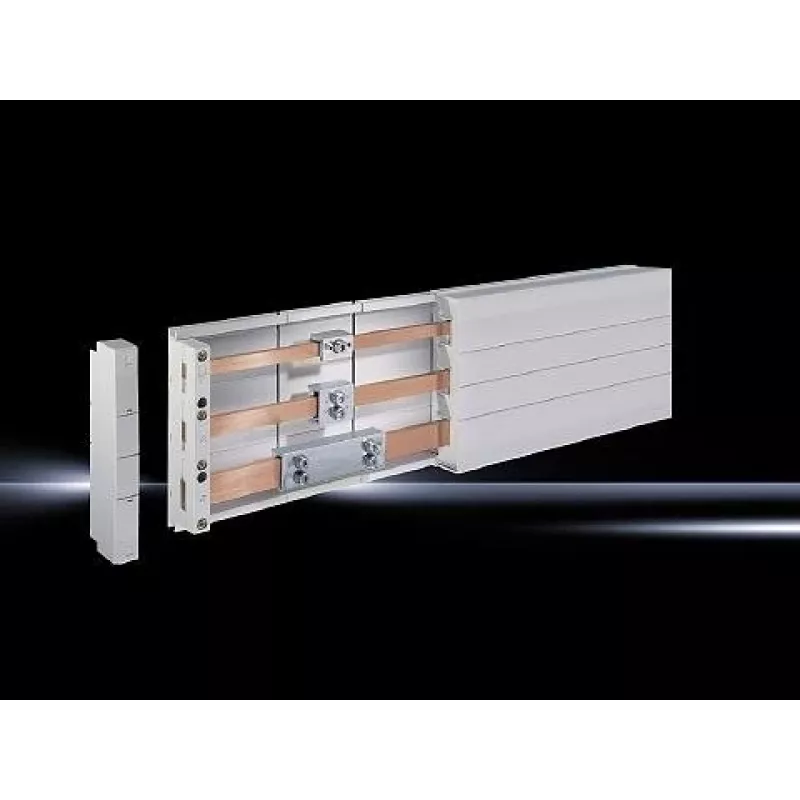

Soportes de barras colectoras para barras planas de cobre Rittal SV 9340.004, RAL 7035

Rittal busbar supports for flat copper busbars in RAL 7035 are mounting brackets engineered to provide stable mechanical support and defined spacing for flat copper conductors in switchgear and distribution panels. Designed for industrial and commercial electrical enclosures, these supports secure busbars during installation and maintenance while maintaining alignment and minimizing mechanical stress on connections.

Advantages

The supports offer robust mechanical fixation and consistent spacing for flat copper busbars, helping to maintain clearances and improve assembly repeatability. Finished in RAL 7035, they integrate visually with standard enclosures and resist routine handling during installation. Their design simplifies mounting and reduces the need for additional spacers or custom fabrication, supporting reliable electrical distribution structures.

Suitable for

Key specifications

How to use

Position the busbar support at the required location along the busbar run to achieve the necessary spacing and clearance. Secure the support to the panel or mounting rail using appropriate fasteners for the enclosure, then place the flat copper busbar into the support and fasten the busbar according to the conductor manufacturer’s torque and connection requirements. Verify alignment and mechanical stability before energizing the system and perform routine inspections to confirm fasteners and supports remain secure.

Recommendations

Ensure compatibility with the flat copper busbar dimensions and follow applicable electrical clearance and insulation standards. Use correct fastening hardware and tighten connections to specified torque values. Inspect supports periodically for mechanical integrity and replace any damaged components to maintain safe operation.
