Rittal tapa de zócalo VX con cepillo para An/Pr 600mm 8660.092

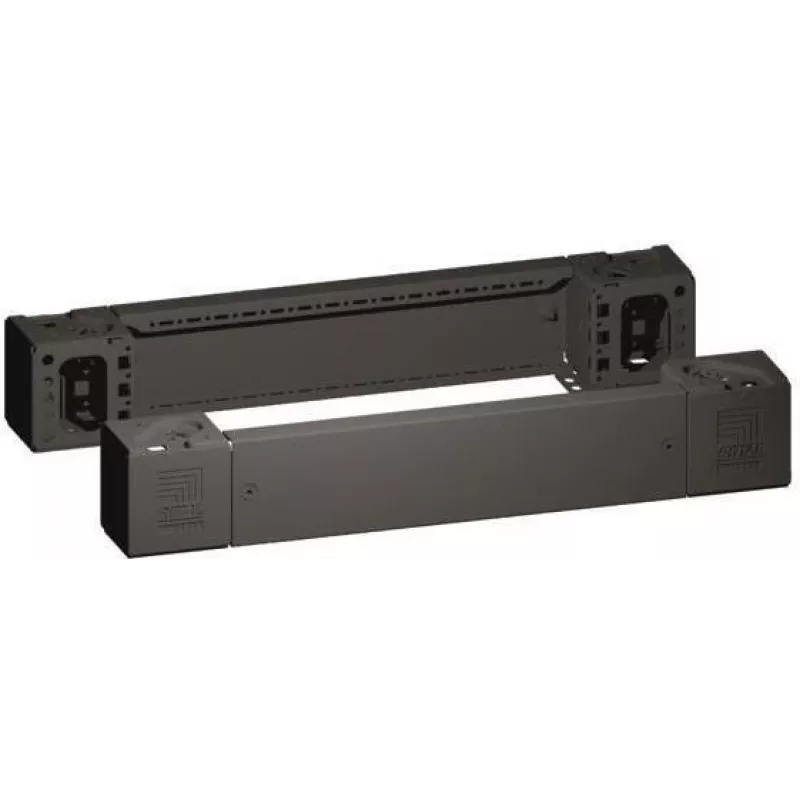

The Rittal Sockelblende VX with Brush Strip for B/T 600mm 8660.092 is a front plinth panel designed for enclosures with a base depth and width configuration of 600 mm. It integrates a brush strip to enable tidy cable routing through the plinth area while limiting dust and debris ingress. The panel is intended to complement Rittal VX enclosures by providing a finished appearance at the cabinet base and improving accessibility for cable entries without leaving large gaps.

Advantages

The integrated brush strip allows cables of various diameters to pass through while maintaining a visual barrier against dust. The panel contributes to a neater installation by concealing cables and structural openings at the enclosure base. As a purpose-built accessory for 600 mm B/T configurations, it fits standard VX baseframes and helps preserve the enclosure’s airflow characteristics by reducing uncontrolled openings.

Suitable for

Key specifications

How to use

Position the Sockelblende VX panel on the enclosure base aligned to the VX baseframe opening for B/T 600 mm. Secure the panel following the enclosure manufacturer’s flange and fastener points so that the brush strip sits flush with the floor-facing opening. Route cables through the brush strip, ensuring the bristles surround cables to limit dust ingress while allowing necessary movement. Check that the panel does not obstruct ventilation paths specified for the enclosure model.

Recommendations

Inspect the brush strip periodically for wear or accumulation of debris; replace the panel if bristles are damaged or no longer provide an effective seal. When routing high-volume or large-bundle cabling, verify that the brush strip capacity is sufficient and, if needed, distribute cables across multiple entry points to avoid compression that could reduce sealing effectiveness.
