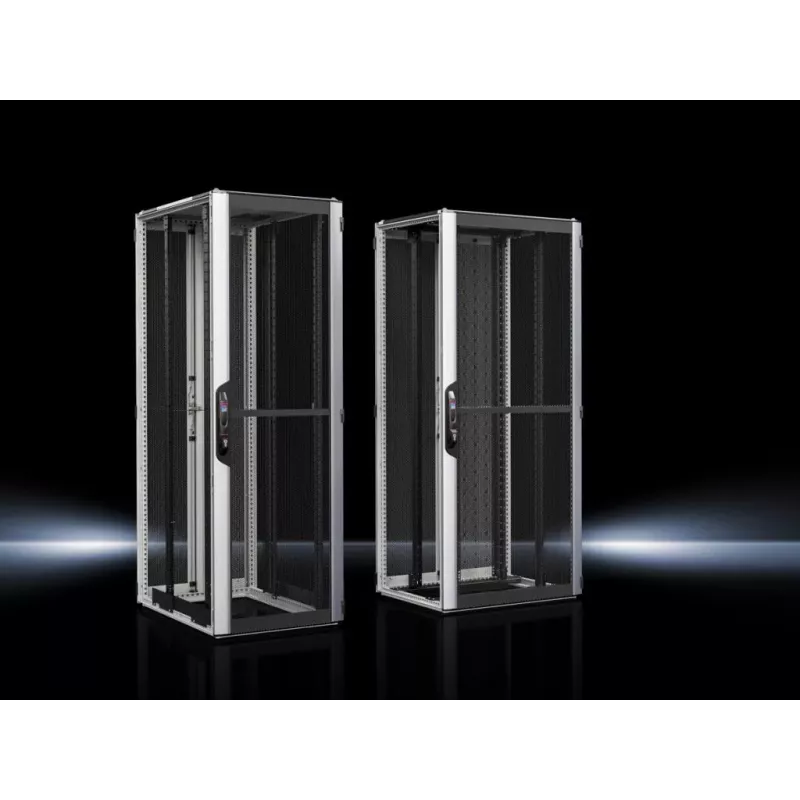

Rittal VX IT rack armario de red para servidores 42U 19" 800x1000x2000mm plata/negro

The Rittal VX IT network server rack cabinet offers a robust and flexible housing solution for 19-inch IT equipment. Designed for high-density server and network installations, this 42U freestanding rack combines superior load capacity with efficient passive ventilation. Its perforated front and rear doors provide 85% airflow, ensuring optimal cooling for active components. The cabinet is constructed from sheet steel and aluminium, finished in a durable two-tone colour scheme: frame in RAL 7035 (light grey/silver) and doors in RAL 9005 (jet black). With a static load capacity of 1500 kg, it supports heavy server loads and network hardware. Depth-adjustable 19-inch mounting frames at front and rear allow flexible equipment installation. Cable entry is provided at top and bottom, and the 180° door opening facilitates easy access. The comfort handle accepts profile half-cylinder locks (3524 E) for security. This rack is IP20 rated and suitable for data centres, server rooms, and network closets.

Advantages

High load capacity of 1500 kg supports heavy equipment. Perforated doors with 85% perforation ensure excellent airflow for passive cooling. Depth-adjustable mounting frames accommodate various equipment depths. Robust sheet steel and aluminium construction ensures long-term durability. Two-tone colour scheme (silver frame, black doors) provides a professional appearance. 180° door opening allows full access for installation and maintenance.

Suitable for

• Server and network equipment installation in data centres
• IT infrastructure for enterprise and SMB environments
• Housing 19-inch rack-mountable servers, switches, patch panels, and UPS systems
• Passively cooled environments where perforated doors aid ventilation

Key specifications

• Rack Units: 42U
• Rack Standard: 19 inch (48.3 cm)
• External Dimensions (W x D x H): 800 mm x 1000 mm x 2000 mm
• Static Load Capacity: 1500 kg
• Material: Sheet steel, aluminium
• Front Door: Perforated (85% perforation)
• Rear Door: Perforated (85% perforation)
• Frame Colour: RAL 7035 (Light Grey / Silver)
• Door/Panel Colour: RAL 9005 (Jet Black)
• Protection Category: IP20
• Cable Entry: Top and bottom
• Mounting Levels: Front and rear 19" mounting frames, depth-adjustable
• Door Opening Angle: 180°
• Lock Type: Comfort handle for profile half-cylinder (3524 E)
• Cooling Type: Passive ventilation

Recommendations

For optimal cooling, ensure adequate room ventilation and consider adding optional fan units if deploying high-density equipment. Use cable management accessories to maintain airflow and organisation. The rack is compatible with all standard 19-inch equipment.
