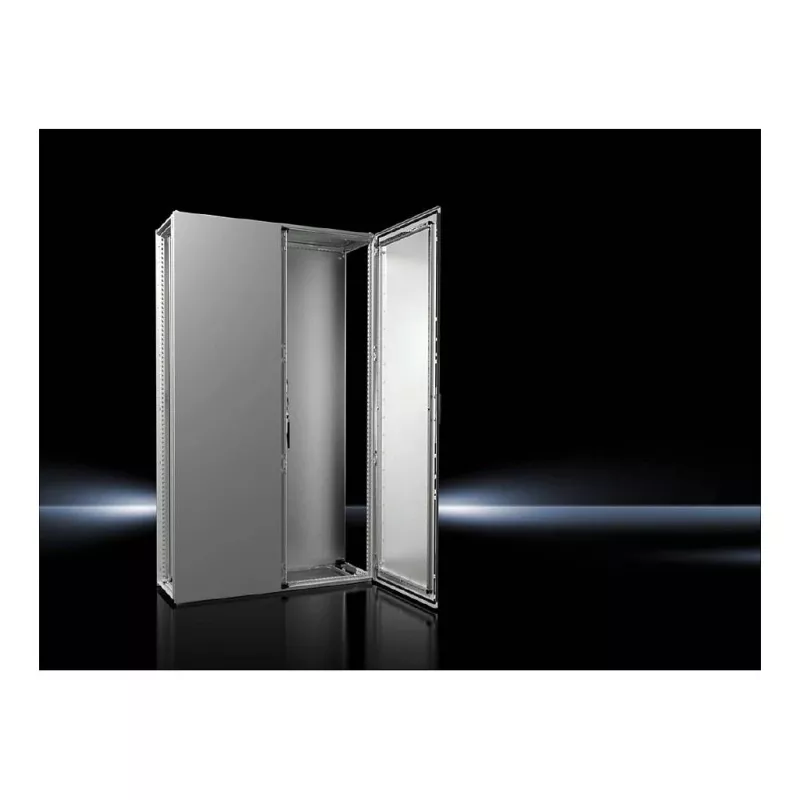

Rittal VX sistema de armario modular, 2 puertas, 1200x2000x400mm

This Rittal VX baying enclosure system delivers robust, flexible housing for industrial automation, IT infrastructure, and electrical installations. With two front doors and spacious 1200 x 2000 x 400 mm dimensions, it offers generous internal volume while maintaining a compact footprint. Engineered for demanding environments, the enclosure provides reliable protection and easy access.

Advantages

Constructed from sheet steel with a powder-coated exterior and dipcoat-primed frame, this enclosure ensures durability and corrosion resistance. The IP 55 protection rating guards against dust and water jets, while the IK10 impact protection withstands mechanical stress. The included mounting plate, rear panel, roof plate, and base plates simplify installation and customization, making it a versatile solution for various applications.

Suitable for

• Industrial automation control systems
• IT and network infrastructure
• Electrical distribution and switchgear
• Machine building and plant engineering

Key specifications

• Dimensions: 1200 x 2000 x 400 mm (W x H x D)
• Material: Sheet steel
• Protection: IP 55, IK10
• Colour: RAL 7035 (light grey)
• Number of doors: 2
• Lock system: 3 mm double-bit
• Included: enclosure frame, 2 front doors, rear panel, roof plate, base plates, mounting plate, 4 transport eyes, lock system

Recommendations

For optimal performance, use Rittal VX system accessories to enhance cable management, cooling, and mounting options. Ensure proper grounding and ventilation according to local regulations.
