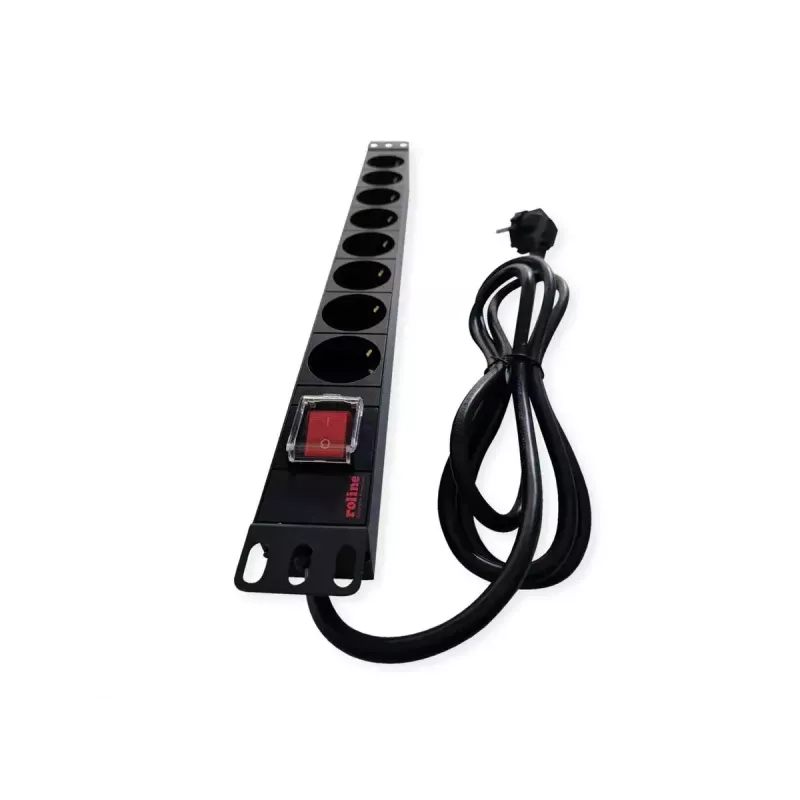

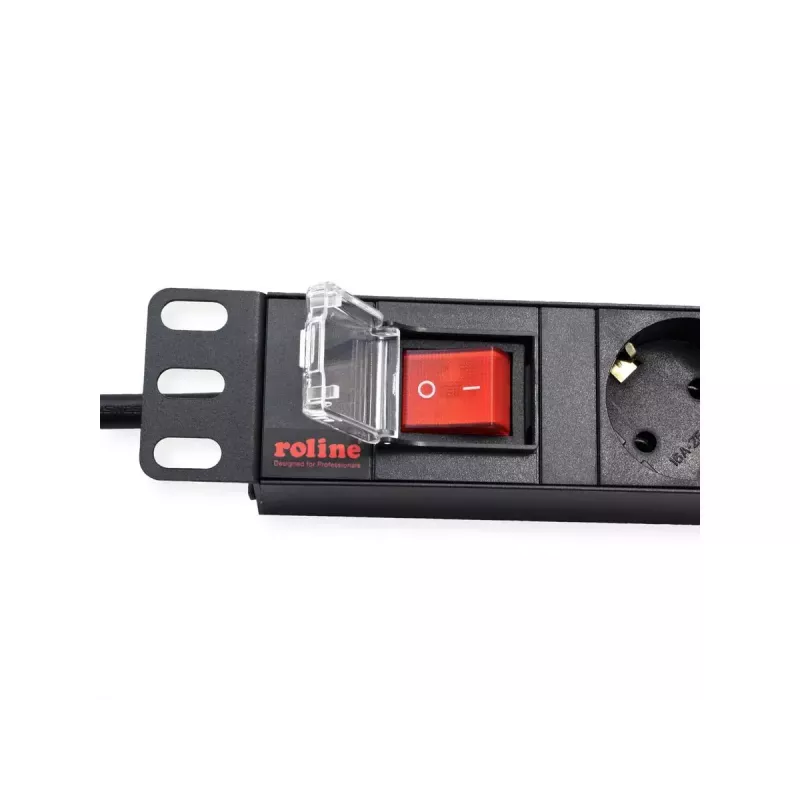

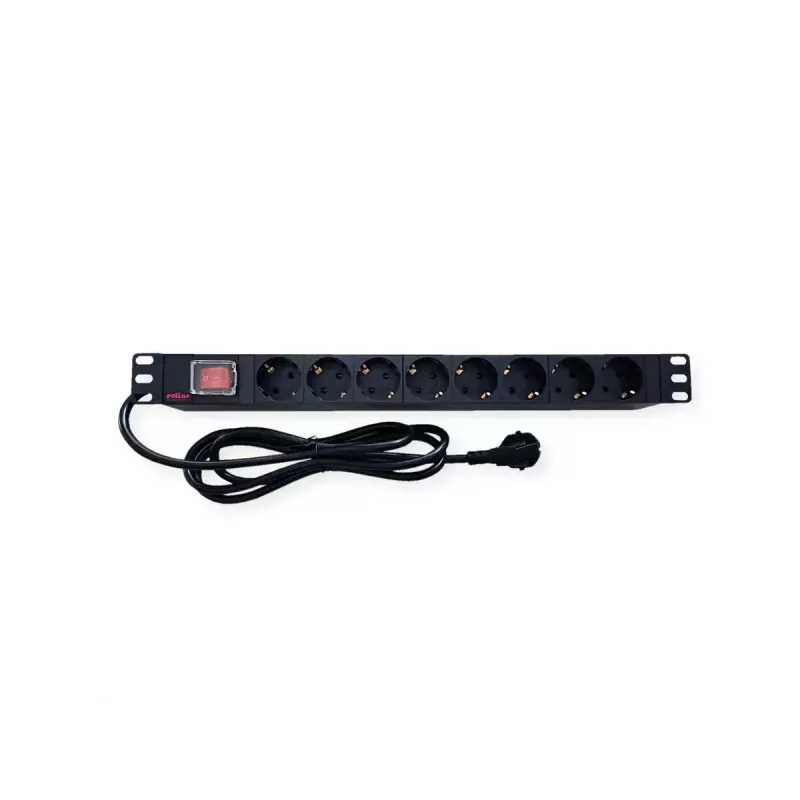

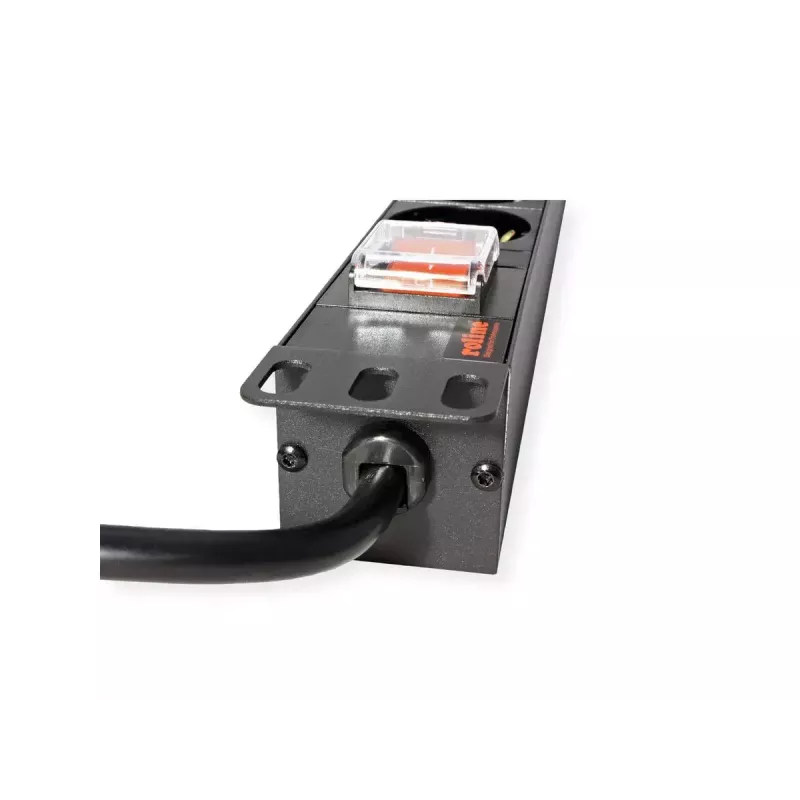

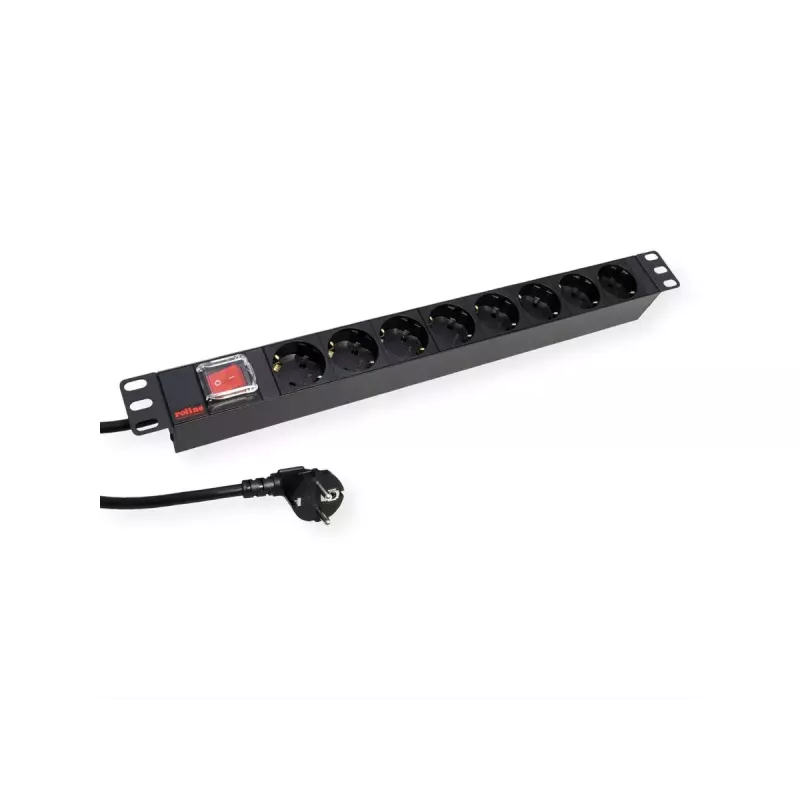

ROLINE 19.07.1619 unidad de distribución de corriente (PDU) 8 salidas de CA 1U negro

The ROLINE 19.07.1619 is a 1U rack-mountable power distribution unit (PDU) with a front-mounted switch and eight AC outlets. Designed for installation in standard 19" racks, it provides centralized power distribution for servers and network equipment, supporting a nominal input voltage of 250 V, a maximum current of 16 A and a total power capacity of 3600 W. The unit has a compact footprint (487 mm × 44 mm) and comes with installation brackets and a 2 m power cable with a Type F plug.

Advantages

This PDU offers eight AC outlets in a 1U form factor, enabling efficient use of rack space while delivering reliable power to multiple devices. Dual-compatible outlet sockets (Type E and Type F) increase compatibility with different plug types. The integrated power switch allows convenient control of connected equipment, and the included mounting brackets simplify installation in 19" racks. With a maximum current rating of 16 A and a power capacity of 3600 W, the unit is suitable for many rack power distribution needs.

Suitable for

• Powering servers and network switches in 19" server racks
• Small to medium data center racks and IT closets
• Workshops or labs with rack-mounted equipment

Key specifications

• Brand: ROLINE
• Model / MPN: 19.07.1619
• Form factor: 1U, 19" rack-mount
• AC outlets: 8 (Type E / Type F compatible)
• Nominal input voltage: 250 V
• Maximum current: 16 A
• Maximum power: 3600 W
• Cable length: 2 m
• Power plug: Type F
• Colour: Black
• Dimensions (W×H): 487 mm × 44 mm
• Weight: 0.834 kg

How to use

Mount the PDU in a standard 19" rack using the supplied installation brackets. Connect the unit to the facility mains using the attached 2 m cable with the Type F plug. Plug equipment into the front AC outlets as required and use the front-mounted power switch to turn connected devices on or off. Ensure the total connected load does not exceed the maximum current of 16 A or the total power rating of 3600 W.

Recommendations

Do not exceed the rated current and power; distribute high-draw devices across multiple PDUs if necessary. Verify local mains voltage compatibility before installation and ensure proper rack ventilation to prevent overheating of connected equipment.
