ROLINE armario de pared 19" Basic Plus 6U, 600x450 mm, gris

Supporting up to 60 kg of equipment, this 6U wall-mount cabinet provides a secure and space-saving enclosure for 19-inch network and server components in constrained environments.

Overview

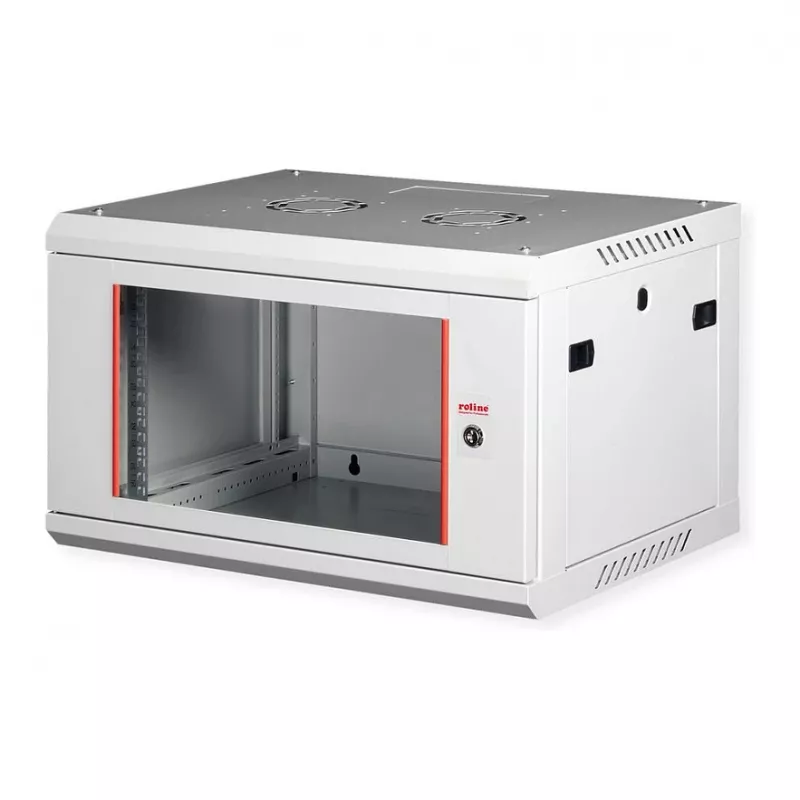

The ROLINE 19" Wall-Mount Cabinet Basic Plus offers a robust and secure enclosure for network and server components. Designed for wall mounting, it provides 6U of rack space with external dimensions of 600 mm width and 450 mm depth. The cabinet is constructed from sheet steel with a grey (RAL 7035) finish, ensuring durability and a professional appearance. The front door is made of safety glass and includes a lock with key, while the side panels are removable and lockable for easy access and security. Cable entry is provided at the top and bottom, and the rack profiles are adjustable in depth to accommodate various equipment. Passive ventilation slots ensure adequate airflow. The door opens up to 180 degrees and features a reversible hinge for flexible installation. The cabinet has an IP20 protection rating, suitable for indoor use.

What stands out

• Sturdy steel construction with 60 kg load capacity
• Reversible safety glass door with lock
• Removable and lockable side panels
• Adjustable rack profiles in depth
• Top and bottom cable entry
• Passive ventilation for heat dissipation
• Wall-mount design saves floor space

Technical details

• Rack units: 6U
• Rack standard: 19 inch
• External dimensions (WxDxH): 600 x 450 x 370 mm
• Colour: Grey (RAL 7035)
• Material: Sheet steel
• Front door: Safety glass, lockable, 180° opening, reversible

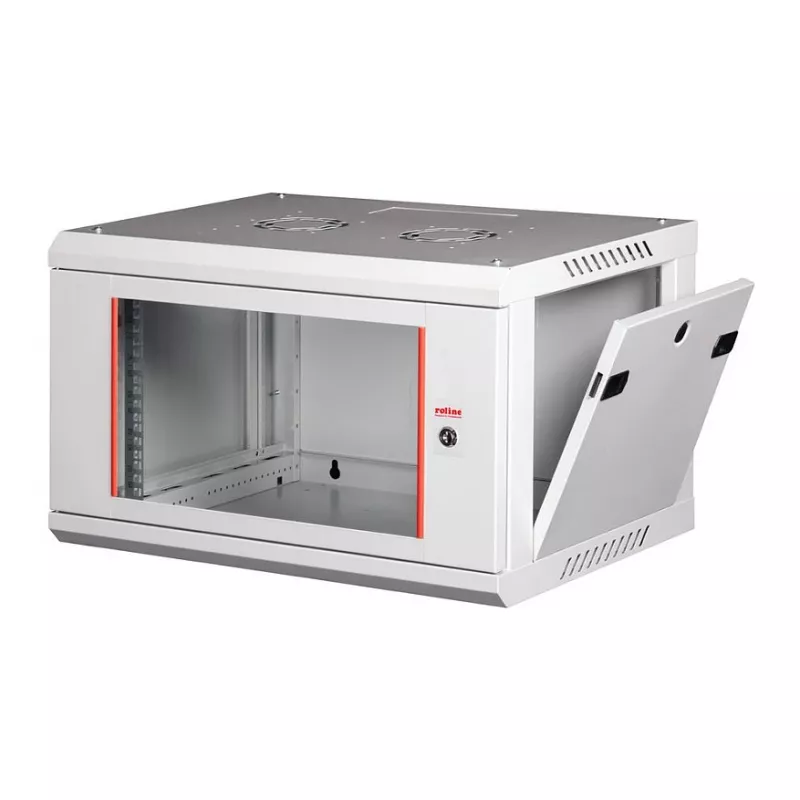

• Side panels: Removable and lockable
• Cable entry: Top and bottom

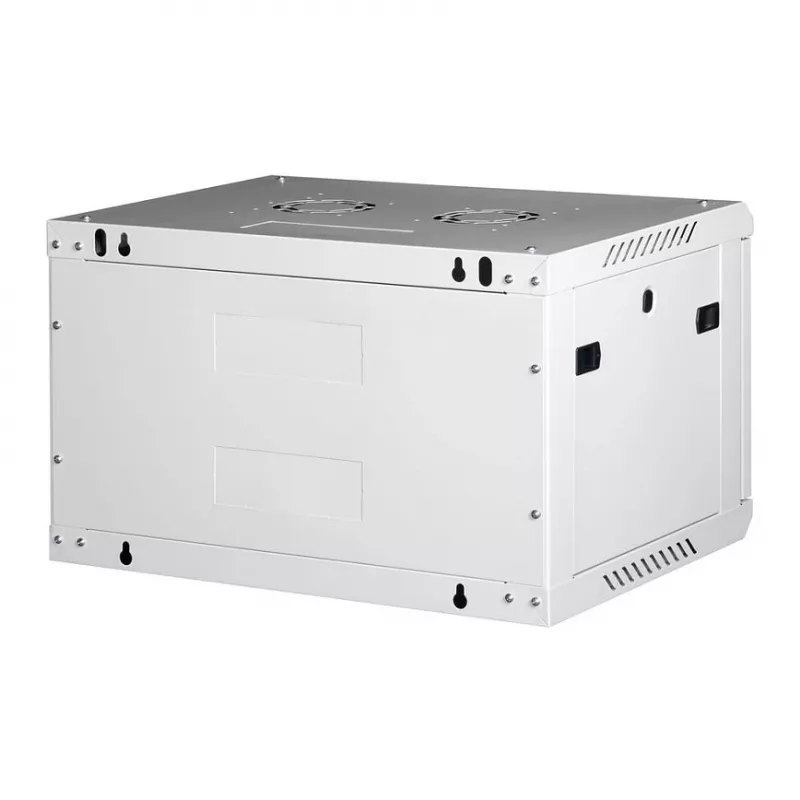

• Mounting type: Wall mount
• Load capacity: Up to 60 kg
• Protection class: IP20

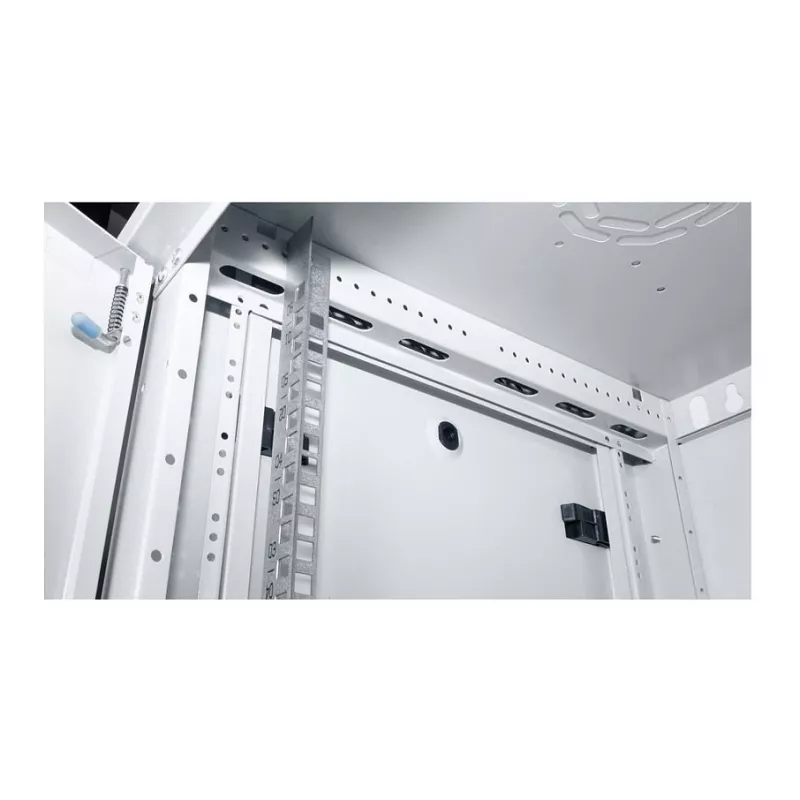

• Rack profiles: Adjustable in depth

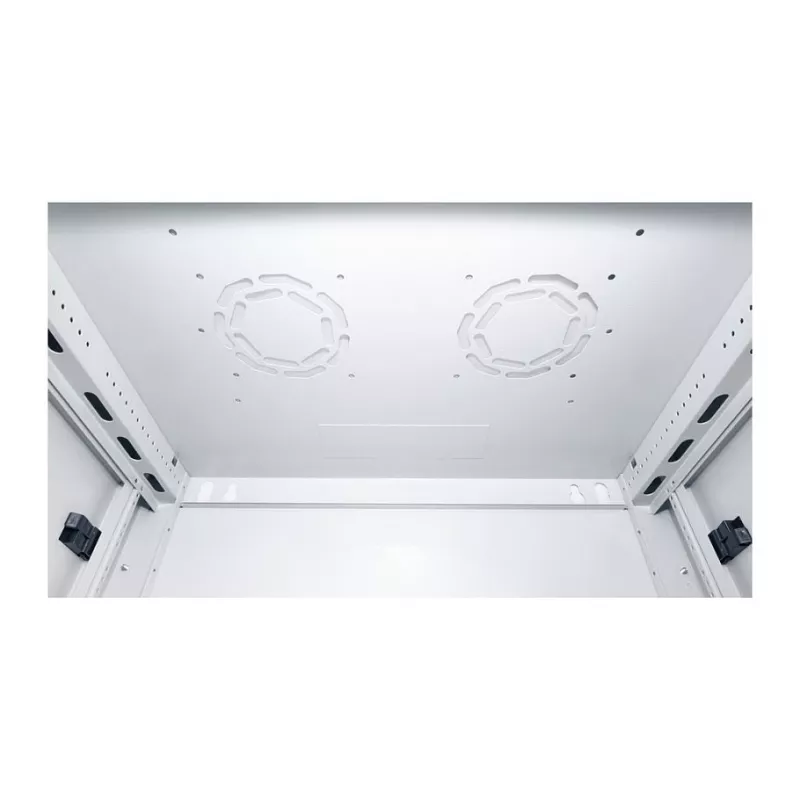

• Ventilation: Passive ventilation slots
• Door opening angle: 180 degrees
• Door hinge: Reversible (left/right)

Our verdict

A reliable and flexible wall-mount cabinet that combines security, durability, and easy access, making it an excellent choice for small to medium installations.
