Rack independiente/pared/suelo DELOCK 43422 6U capacidad de carga 30 kg IP20, negro, cerradura con llave

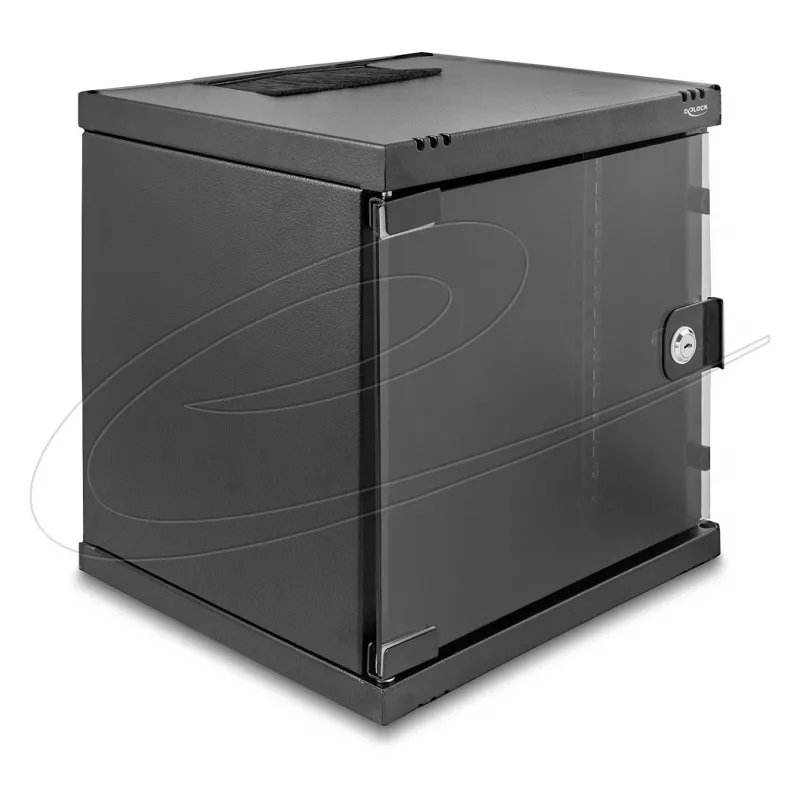

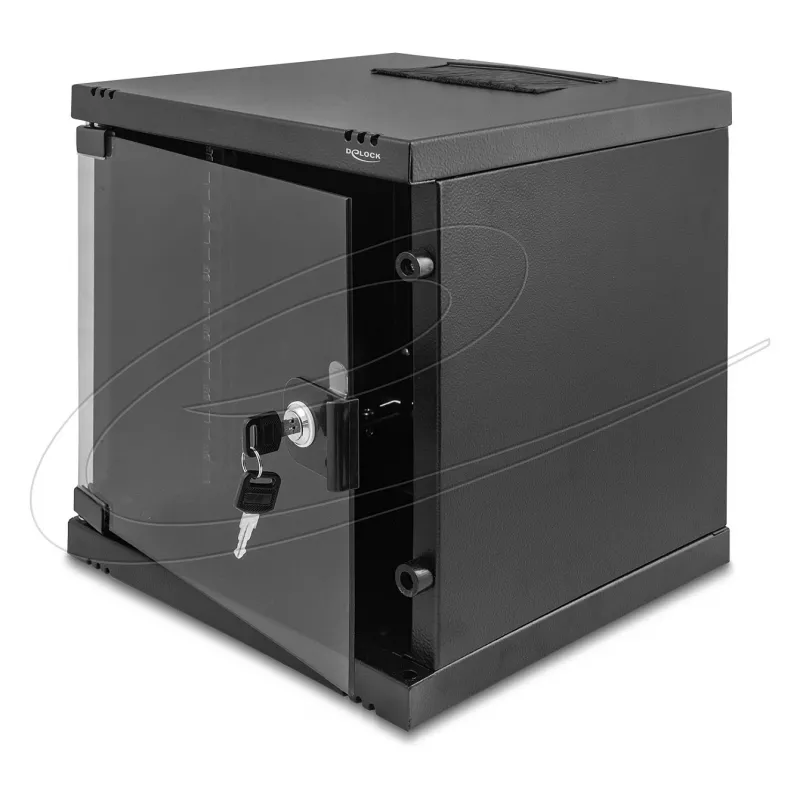

DELOCK 43422 is a compact 6U network cabinet for freestand, wall or floor mounting, designed to house 10" devices such as patch panels, small switches or other compact network equipment. The cabinet supports a maximum load of 30 kg and provides IP20 protection class for indoor installations. A lockable front door with a viewing window lets you monitor installed devices while restricting access.

Advantages

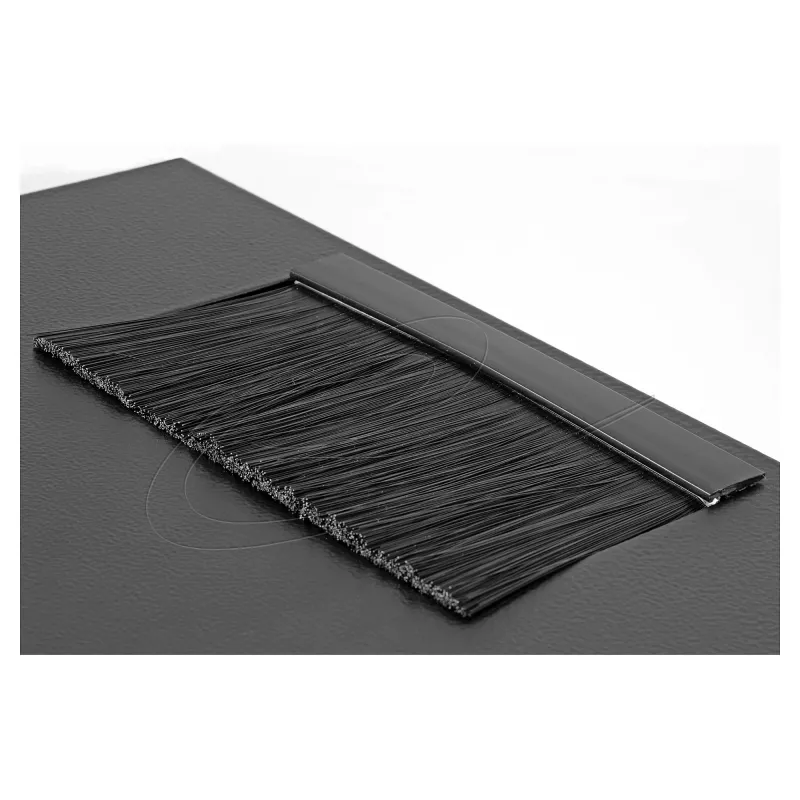

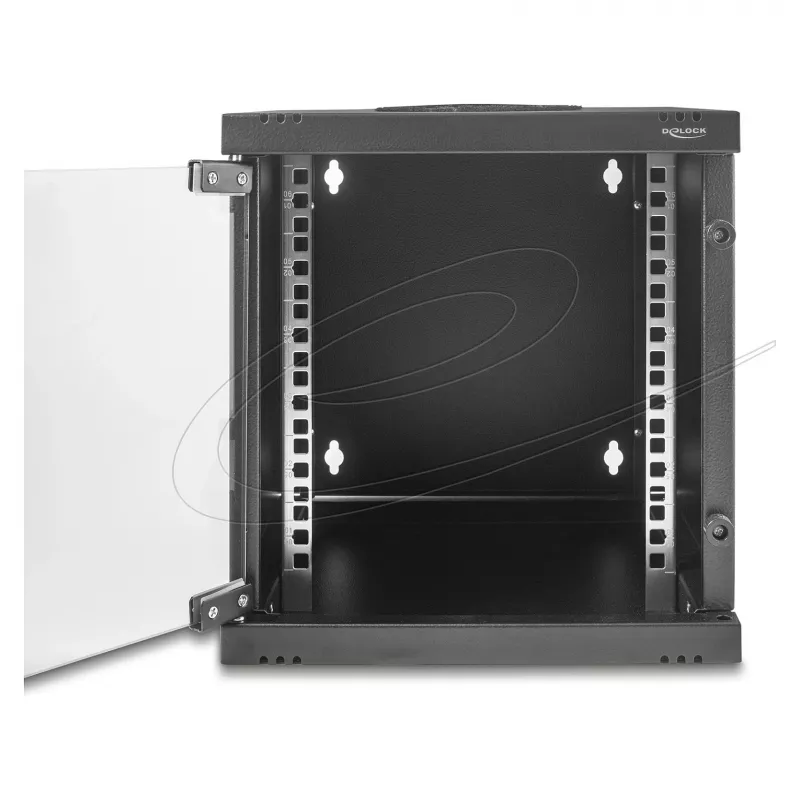

The enclosure combines multiple mounting options (freestand, wall or floor) with adjustable front profile rails to accommodate different device depths. Integrated cable bushings with nylon brush inserts on the top and an additional bushing in the floor enable tidy cable entry while reducing dust ingress. Ventilation slots promote passive airflow to help dissipate heat from installed equipment.

Suitable for

• Small office or home network installations
• Mounting 10" patch panels and compact switches
• Telecommunication or server closets with limited space
• Environments requiring a lockable, visible front door

When it may not be suitable

This cabinet is intended for small, low-weight installations and has a maximum load capacity of 30 kg; it is not suitable for heavy server equipment or fully populated racks. The IP20 protection rating means it is designed for dry indoor use and does not provide protection against water or outdoor conditions.

Key specifications

• Rack height: 6U
• Supported device size: 10" (inch) equipment
• Maximum load capacity: 30 kg
• Material: steel (SPCC)
• Colour: black

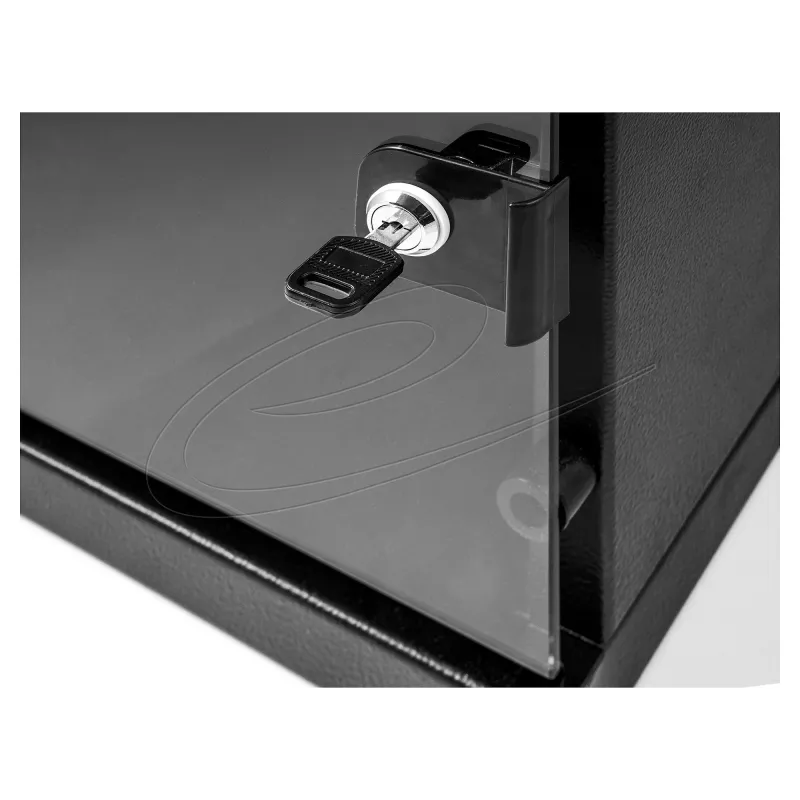

• Front door: lockable with viewing (safety) glass
• Cable entries: top and floor bushings with brush insert (top feed-through approx. 145 x 70 mm)
• Ventilation: slots for passive airflow
• Mounting options: freestand, wall or floor mounted
• Protection class: IP20

How to use

Install the cabinet at the chosen location using the appropriate mounting option (wall or floor) and ensure it is securely fixed. Adjust the front profile rails to match the depth of your 10" devices, then mount patch panels, switches or other compatible equipment into the rails. Route cables through the top or floor feed-throughs and use the nylon brush inserts to minimise dust entry. Close and lock the front door to restrict access while the viewing window allows visual inspection.

What to consider before purchase

• Confirm that the combined weight of installed equipment does not exceed 30 kg.
• Verify device compatibility with 10" rack mounting and the available 6U height.
• Ensure IP20 protection and indoor use match your installation environment.
• Measure available space and mounting surface to accommodate freestand, wall or floor installation and the cabinet dimensions.

Recommendations

For neat and secure installation, plan device placement to balance weight across the rails, leave clearance for airflow at ventilation slots, and route cables through the brush-equipped openings to maintain a dust-reduced interior. Use the key lock to control physical access in shared or public areas.
