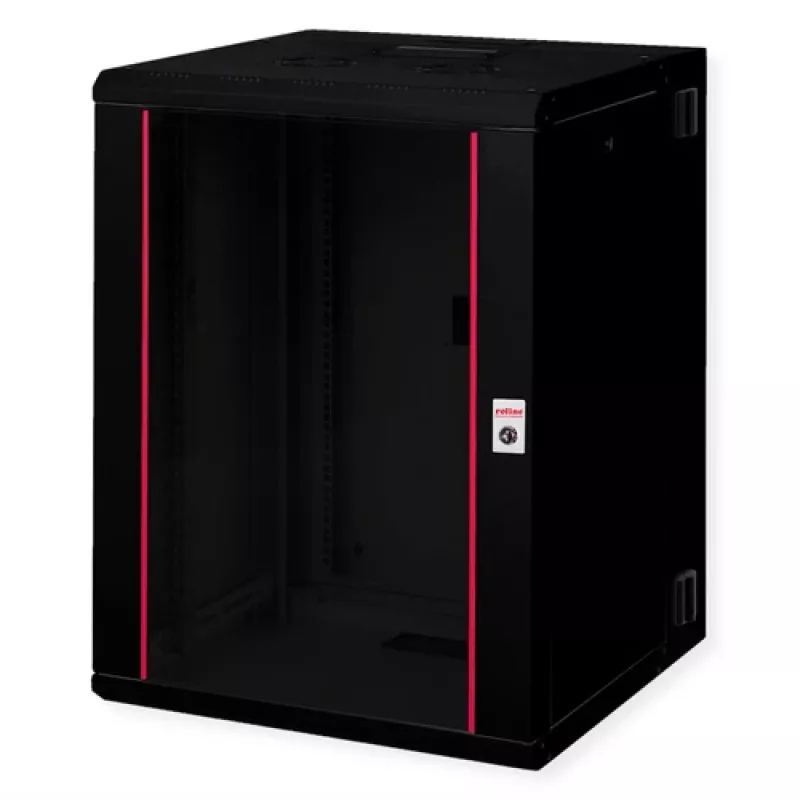

ROLINE armario de pared 19" Pro 16U 600x600 AnxPr dos piezas abatible negro (26.21.0183)

Wall-mount cabinets often force a compromise between accessibility and space, but the ROLINE Pro 16U swiveling model eliminates that trade-off. Its two-part construction lets the front section swing open a full 180°, giving you unrestricted access to rear cabling and equipment without removing the cabinet from the wall. Built from powder-coated steel with a tempered glass door, it combines durability with a professional look, ready for structured cabling in offices, retail, or industrial environments.

Highlights

• 16U height, 600x600 mm footprint, 19-inch mounting
• Two-part swiveling design: front section opens 180° for rear access
• Tempered glass front door with lock, removable and lockable side panels
• Passive ventilation prepared for fan unit, cable entry top and bottom with brush strips
• Static load capacity 60 kg, IP20 protection, black RAL 9005 powder coating

In daily use

Mount the rear section to the wall, route cables through the brush-sealed openings, then attach the front section and swing it open whenever you need to patch or troubleshoot. The depth-adjustable mounting rails accept standard 19-inch equipment, and the included cage nuts and mounting hardware speed up installation. The lockable glass door keeps unauthorized hands away while allowing visual status checks at a glance.

Full specifications

• Rack units: 16U
• Form factor: 19-inch wall-mount
• Design: Two-part, swiveling
• Material: Steel sheet, welded frame, powder-coated
• Colour: Black (RAL 9005)
• Front door: Tempered glass, lockable, 180° opening
• Side panels: Removable and lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, prepared for fan unit
• Static load capacity: 60 kg
• Protection class: IP20
• Mounting rails: Two pairs, depth-adjustable
• Included accessories: Keys, cage nuts (M6), mounting material

Final note

For installers who need rear access in tight spaces, this swiveling cabinet delivers practical value without sacrificing security or build quality.
