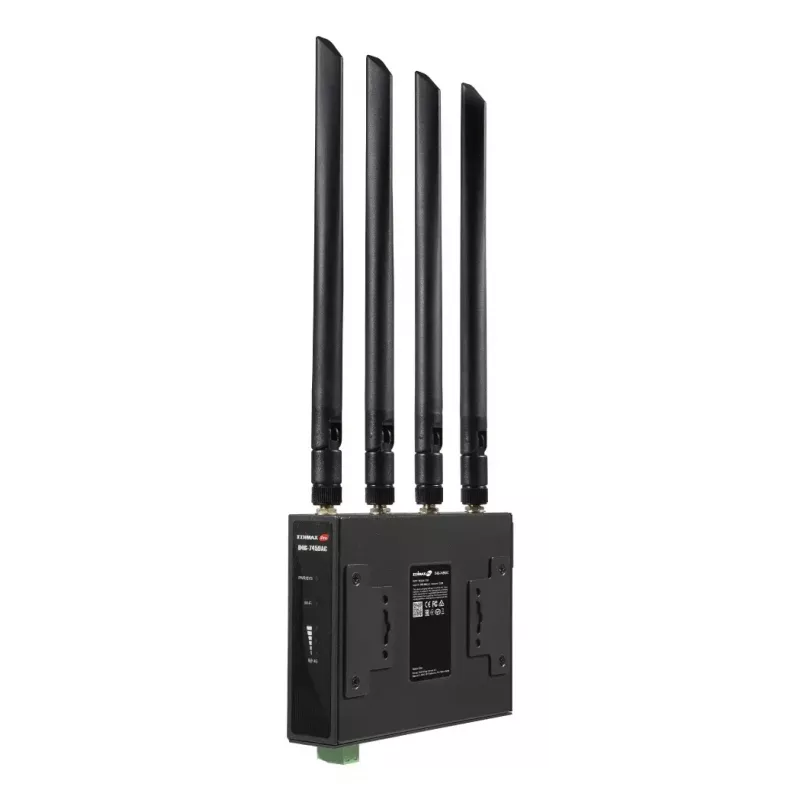

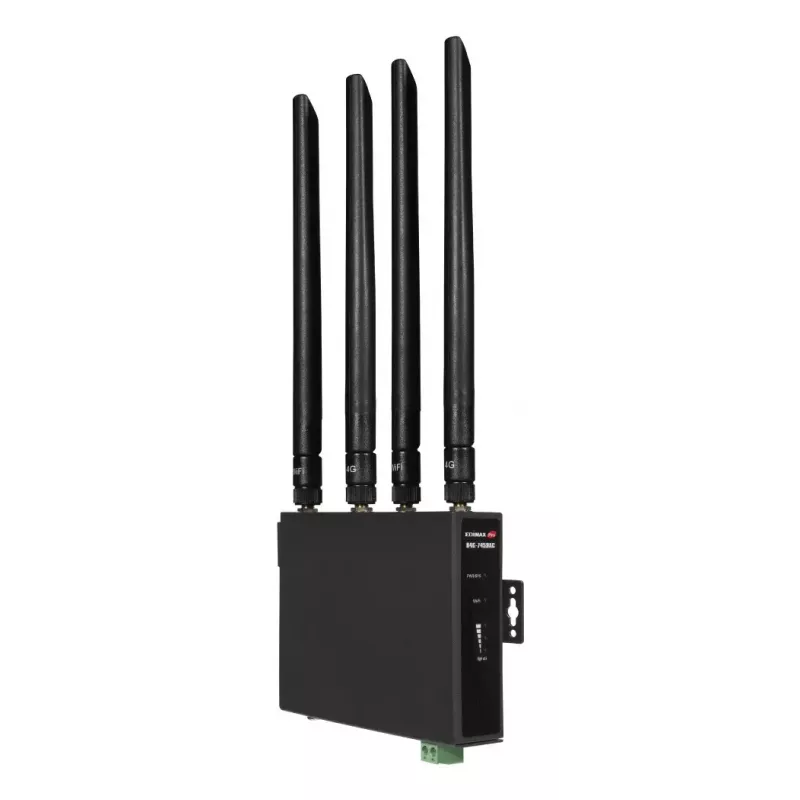

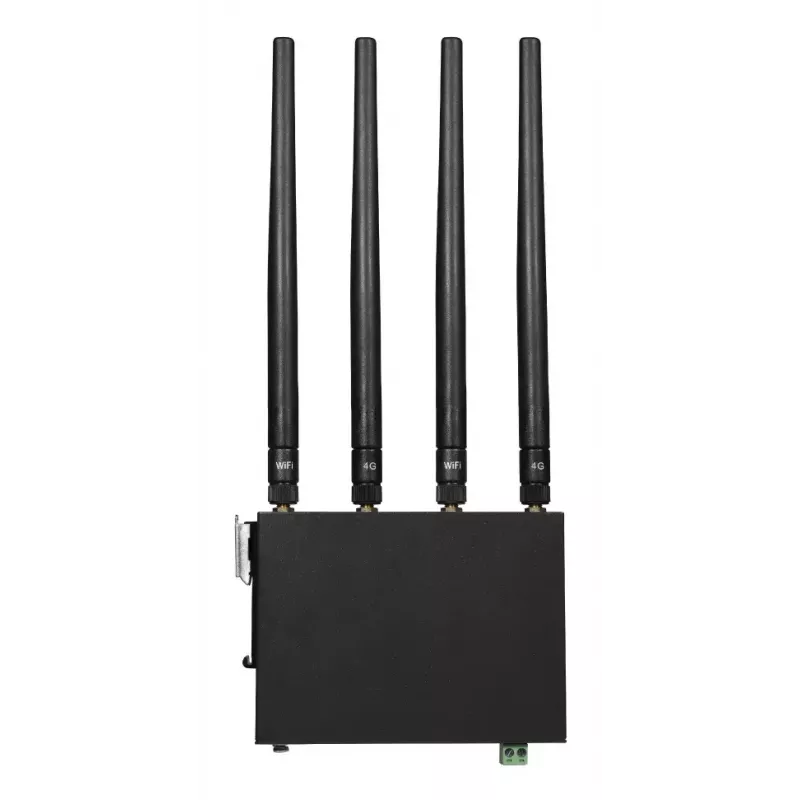

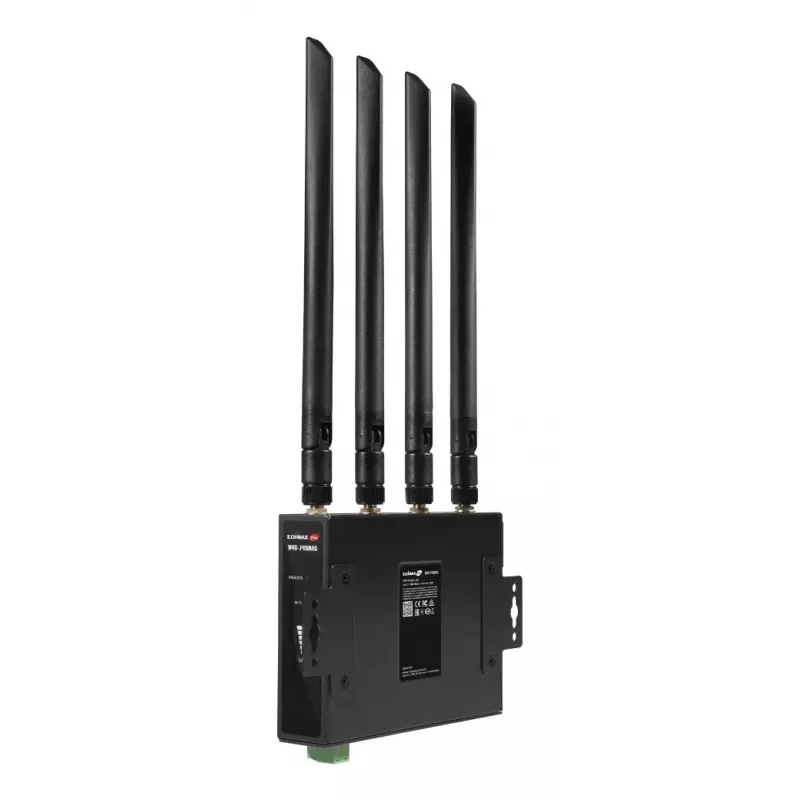

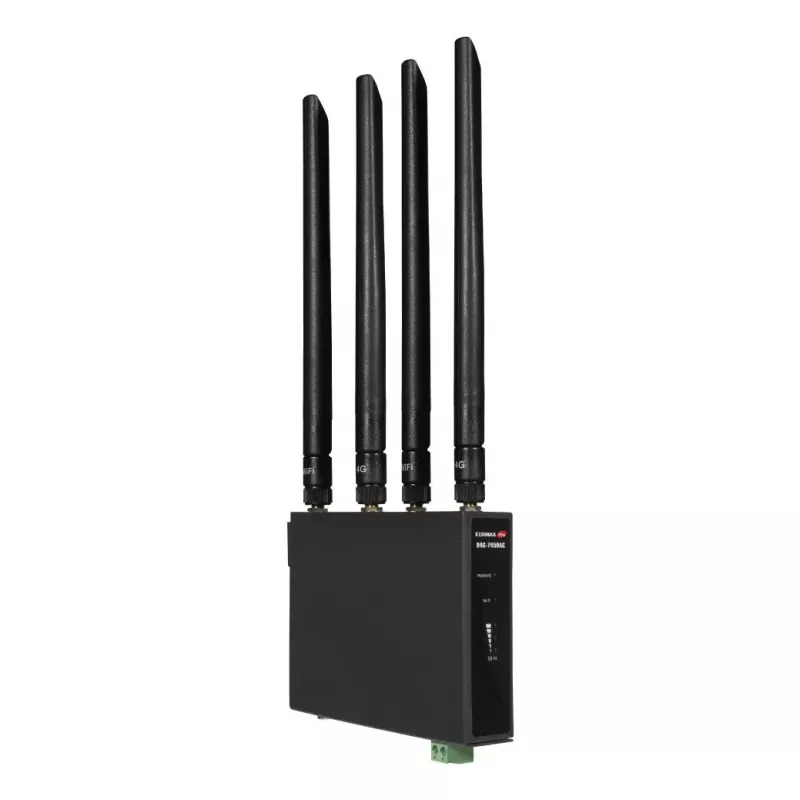

Router Edimax D4G-7459AC Dualband 2,4 GHz 5 GHz Wi-Fi 5

The EDIMAX D4G-7459AC Industrial 4G LTE Wi‑Fi router provides dual-band Wi‑Fi 5 (802.11ac) and wired Ethernet connectivity using 4G LTE mobile networks. With support for dual‑band 2.4 GHz and 5 GHz operation and a maximum WLAN throughput of up to 1167 Mbit/s (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz), the router is built for industrial and business environments where fixed broadband is unavailable or continuous connectivity is required. It accepts a SIM card for immediate 4G LTE access and includes DIN‑Rail mounting and an industrial temperature range for deployments in harsh environments.

Advantages

The D4G-7459AC combines wireless and wired internet access with rapid plug‑and‑play deployment via a SIM card, eliminating the need for fixed broadband installation. Its industrial‑hardened design supports a wide operating temperature range and provides surge and power protection, while the integrated EC25 (Qualcomm MDM9207) solution ensures reliable modem performance. The router supports redundant power inputs and failover between fixed broadband and 4G LTE, and offers standard security (WPA2‑AES) and management features for business use.

Suitable for

• Temporary offices, construction sites and events requiring fast internet deployment
• Remote or mobile locations without fixed broadband coverage
• Industrial installations needing wide temperature range and DIN‑Rail mounting
• Business use cases requiring redundant connectivity (payment systems, remote data transfer, online meetings, video streaming)

Key specifications

• Model: EDIMAX D4G-7459AC (MPN: D4G-7459AC, EAN: 4717964705495)
• Wi‑Fi standard: Wi‑Fi 5 (802.11ac); dual‑band 2.4 GHz / 5 GHz
• Maximum WLAN data rate: 1167 Mbit/s (300 Mbps @2.4 GHz; 867 Mbps @5 GHz)

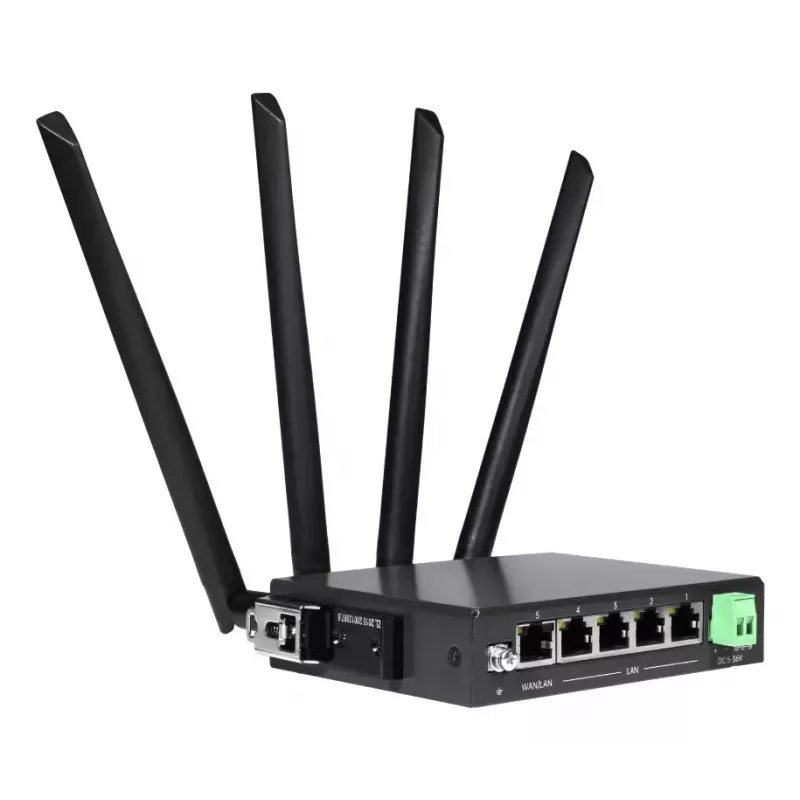

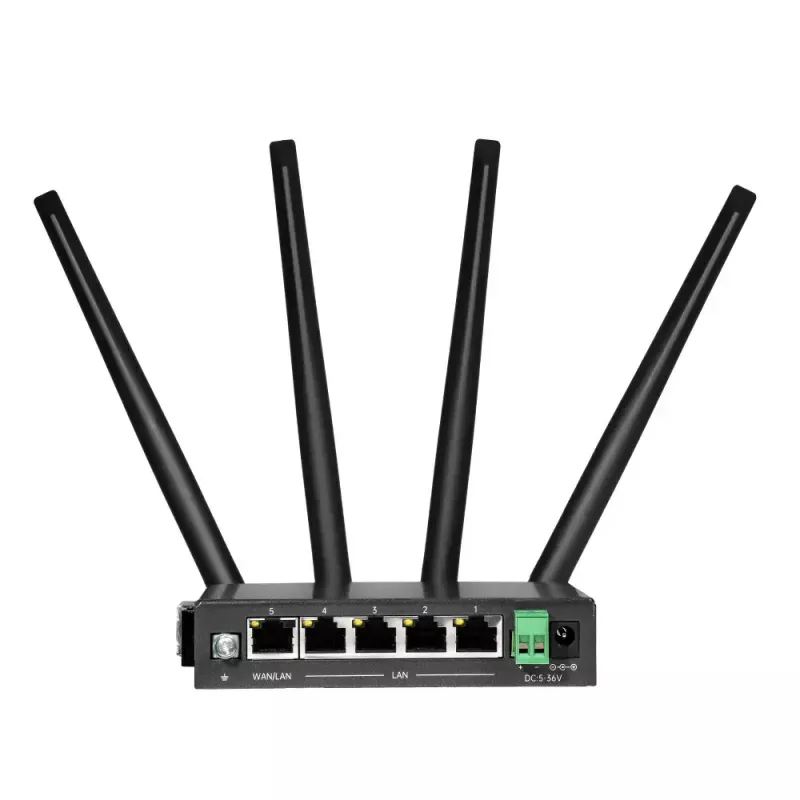

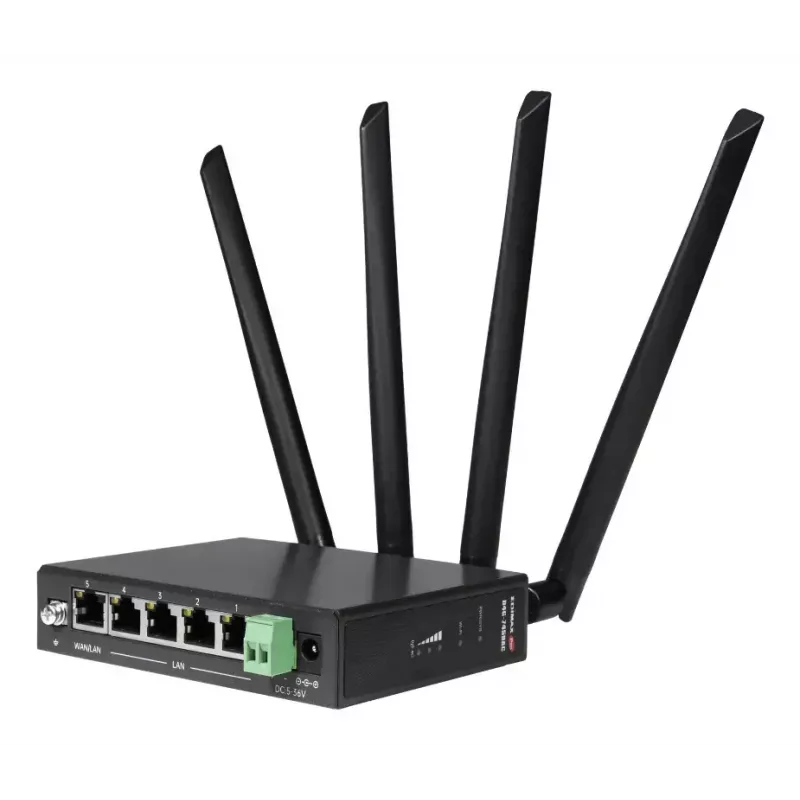

• Ethernet: RJ‑45 WAN and 4 x LAN ports, 10/100 Mbit/s

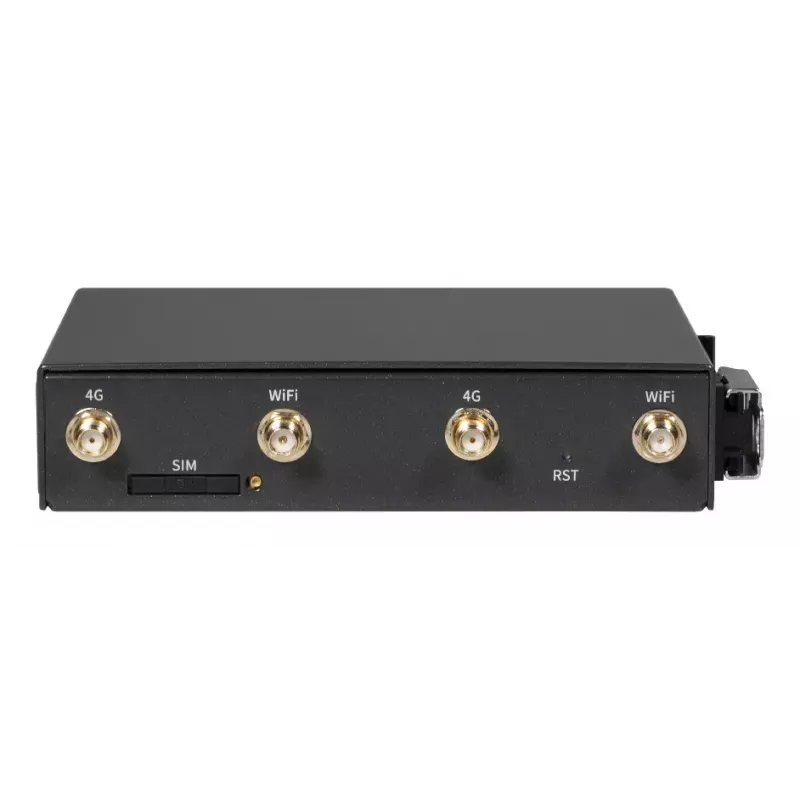

• Cellular: 4G LTE (FDD/TDD) with SIM card slot; EC25 (Qualcomm MDM9207) integrated modem
• Security: WPA2‑AES and standard network access controls

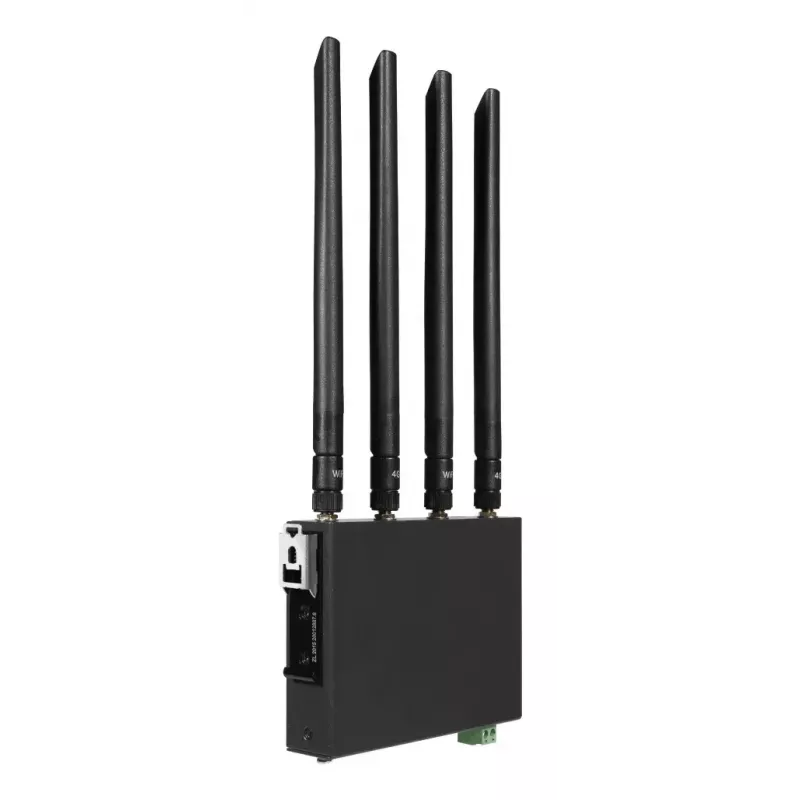

• Mounting: DIN‑Rail bracket
• Operating temperature: -20°C to 70°C
• Color and weight: Black, approx. 0.47 kg

How to use

Install the router on a DIN‑Rail or suitable mounting surface and connect the power supply. Insert a compatible SIM card to enable 4G LTE connectivity, or connect a wired WAN link via the RJ‑45 port if fixed broadband is available. Access the web‑based management interface to configure SSIDs, security (WPA2‑AES), network settings, and failover preferences. Connect devices via Wi‑Fi or Ethernet ports. For power redundancy, connect the secondary power input as backup according to the product manual.

Recommendations

For stable industrial deployment, place the router where it receives adequate 4G LTE signal strength or connect a reliable wired WAN as primary. Configure failover settings to switch automatically between wired and cellular connections and enable power redundancy if uninterrupted operation is required. Keep firmware up to date and use strong WPA2‑AES credentials and access control lists for network security.
