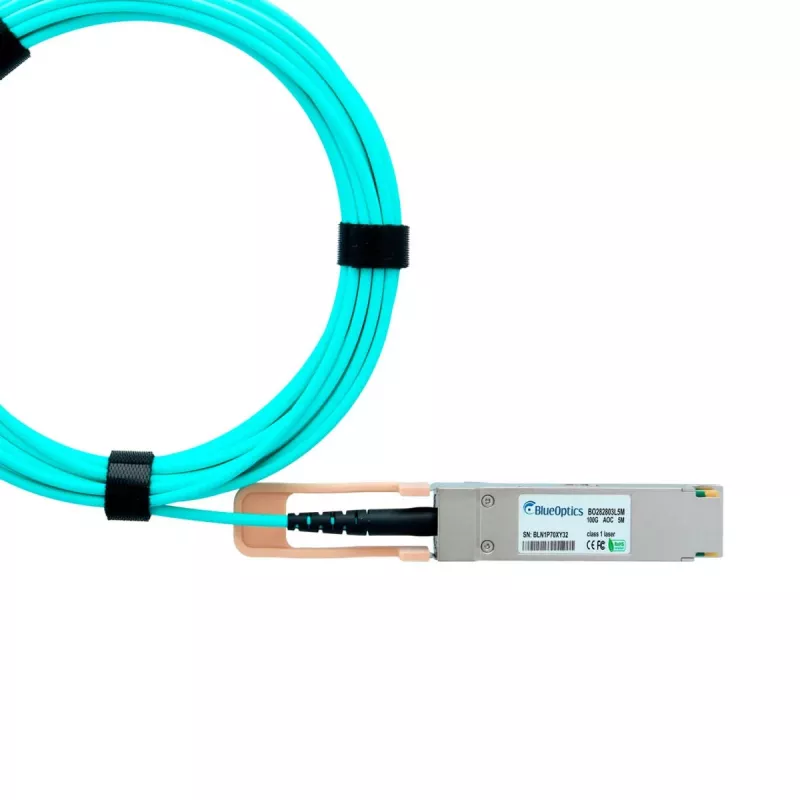

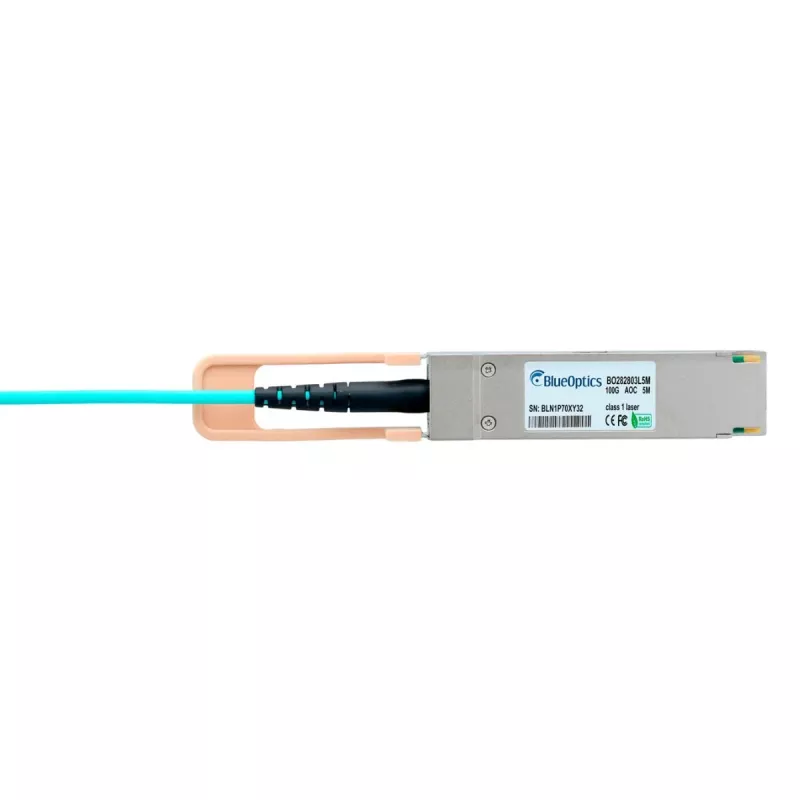

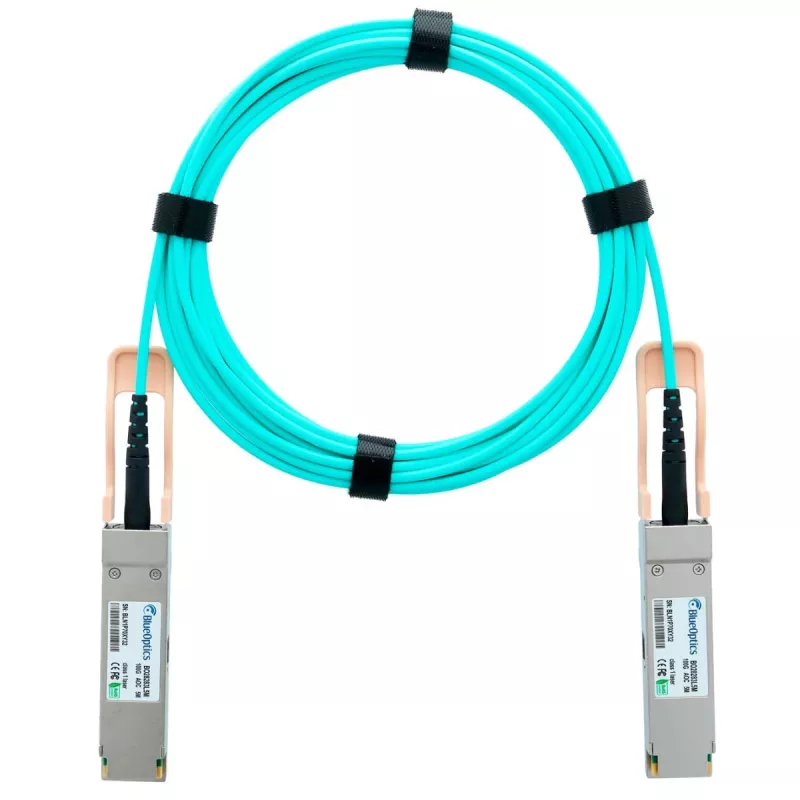

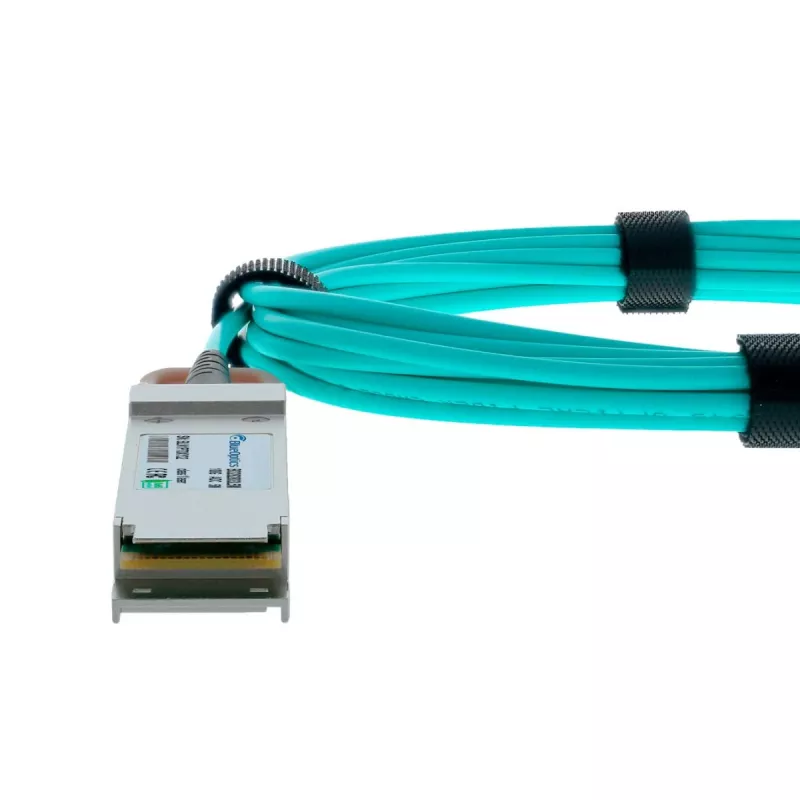

Ruckus QSFP28-100G-AOC-5M AOC QSFP28 BlueOptics BO282803L5M compatible

The BlueOptics BO282803L5M is a high-performance active optical cable (AOC) designed for 100 Gigabit Ethernet connectivity. It is fully compatible with Ruckus QSFP28-100G-AOC-5M, providing a reliable and cost-effective solution for data center interconnects, high-performance computing, and enterprise networking. This plug-and-play cable eliminates the need for external transceivers and offers low power consumption, high bandwidth, and excellent signal integrity over a 5-meter distance.

Advantages

This AOC delivers several key benefits: it is hot-pluggable for easy installation, supports digital diagnostic monitoring (DDM) for real-time performance tracking, and consumes less than 2.5W, reducing overall power costs. The LSZH jacket ensures safety in enclosed spaces, and the cable is MSA compliant, guaranteeing interoperability with standard QSFP28 ports.

Suitable for

• Data center interconnects (DCI)
• High-performance computing (HPC) clusters
• Enterprise network backbone connections
• Top-of-rack to server or switch links
• Storage area networks (SAN)

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-SR4
• Cable Length: 5 meters
• Wavelength: 850 nm
• Fiber Type: Multi-mode Fiber (MMF)
• Number of Fibers: 8 (4 Tx, 4 Rx)
• Power Consumption: < 2.5 W
• Voltage: 3.3 V
• Hot-Pluggable: Yes
• Digital Diagnostic Monitoring (DDM): Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: MSA Compliant, RoHS, CE, FCC
• Compatibility: Ruckus QSFP28-100G-AOC-5M
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Protocol Support: Ethernet, InfiniBand EDR

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP28-compatible ports. This cable is ideal for short-reach, high-speed links within racks or between adjacent racks. Always handle the cable with care to avoid damaging the optical fibers.
