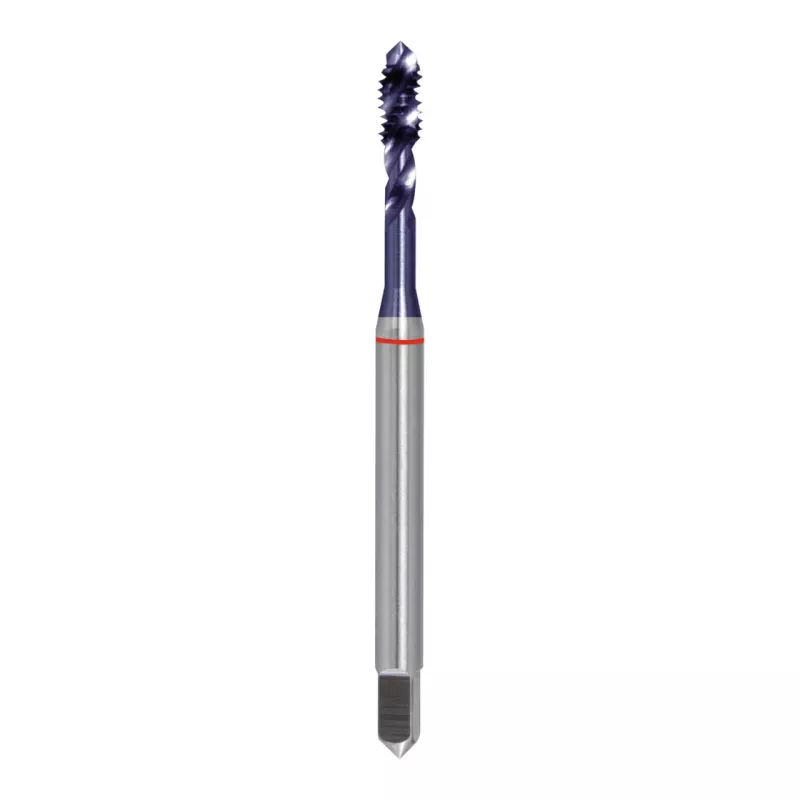

RUKO MGB-DIN371-HSS-TiAlN-60°-M2x0.40mm macho de roscar a máquina

Machining precise M2 threads in through holes demands a tap that resists wear and maintains sharpness. The RUKO MGB-DIN371-HSS-TiAlN-60°-M2x0.40mm machine tap answers that need with a TiAlN coating on a high-speed steel body, built for reliable threading in steel and non-ferrous metals.

Who is it for

Machinists and manufacturing professionals who thread small metric holes in production environments. It suits workshops that need consistent thread quality and longer tool life when working with steel or non-ferrous metals.

Main features

• TiAlN coating reduces friction and heat, extending tool life.
• High-speed steel body provides toughness and wear resistance.
• DIN 371 standard with reinforced shank for stability.
• Ground thread for accurate thread form and pitch.
• Right-hand cutting direction for standard threading operations.

Specifications

• Tool Type: Machine Tap
• Standard: DIN 371
• Material: High-Speed Steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Thread Type: Metric (M)
• Nominal Thread Diameter: M2
• Thread Pitch: 0.40 mm
• Thread Angle: 60°
• Application: Through Holes
• Shank Type: Reinforced Shank
• Cutting Direction: Right-Hand Cut
• Tolerance Class: ISO 2 / 6H
• Flute Type: Straight Flute
• Shank Diameter: 2.8 mm
• Square Drive Size: 2.1 mm
• Overall Length: 40 mm
• Thread Length: 7 mm
• Recommended Material Group: Steel, Non-ferrous metals
• Manufacturing Process: Ground Thread

Tips

Use a suitable cutting fluid to maximize tool life and thread quality. Ensure the tap is aligned perpendicular to the workpiece to prevent breakage.
