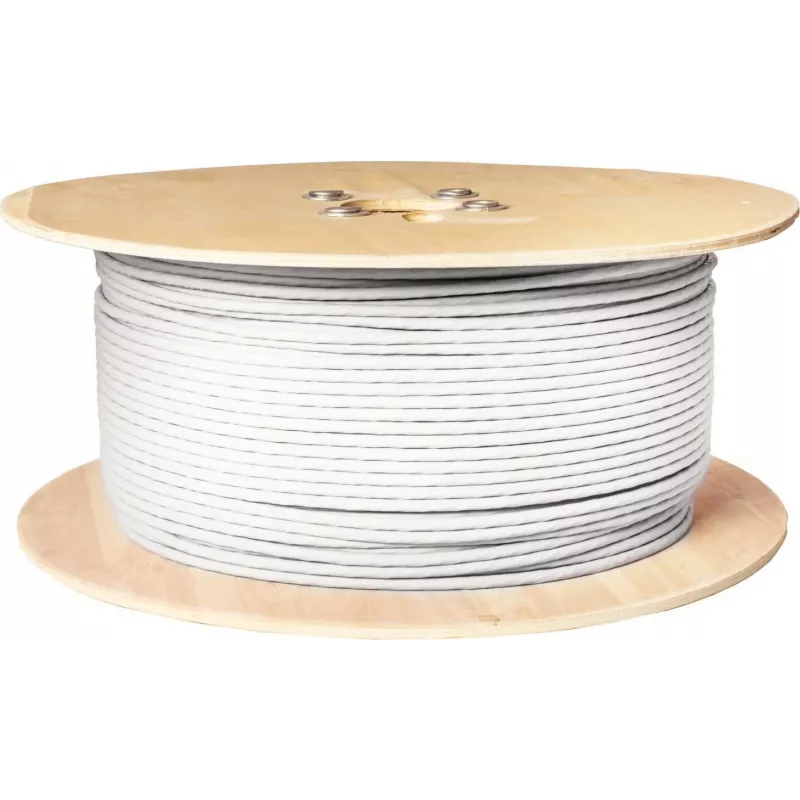

S CONN MAXIMUM CONNECTIVITY cable coaxial SAT 0,9/4,6 triple blindado CCS 100 dB 500m blanco 15-39005006

SAT coaxial cable with triple shielding and copper-clad steel inner conductor, delivering shielding effectiveness above 100 dB for interference-free signal transmission over 500 m.

Advantages

Triple shielding (aluminium foil, aluminium braid, aluminium foil) ensures excellent protection against electromagnetic interference. The copper-clad steel conductor provides high tensile strength and reliable signal integrity. Low attenuation values maintain signal quality over long distances.

Suitable for

• Satellite TV installations
• CATV distribution networks
• Long cable runs in residential and commercial buildings

Key specifications

• Inner conductor: copper-clad steel, 0.9 mm diameter
• Dielectric: foamed polyethylene, 4.6 mm diameter
• Shielding: triple (AL/PET foil + aluminium braid 64x0.12 mm + AL/PET foil)
• Shielding effectiveness: >100 dB (30-1000 MHz)
• Impedance: 75 Ohm
• Attenuation: 6.0 dB/100m @100 MHz, 20.0 dB/100m @1000 MHz, 34.0 dB/100m @2400 MHz
• Return loss: >20 dB (5-2400 MHz)
• Velocity of propagation: 85%
• Jacket: PVC, white, outer diameter 6.8 mm
• Length: 500 m
• Operating temperature: -20°C to +75°C

Recommendations

Ideal for professional installers requiring a high-performance, long-run coaxial cable with superior shielding for satellite and CATV applications.
