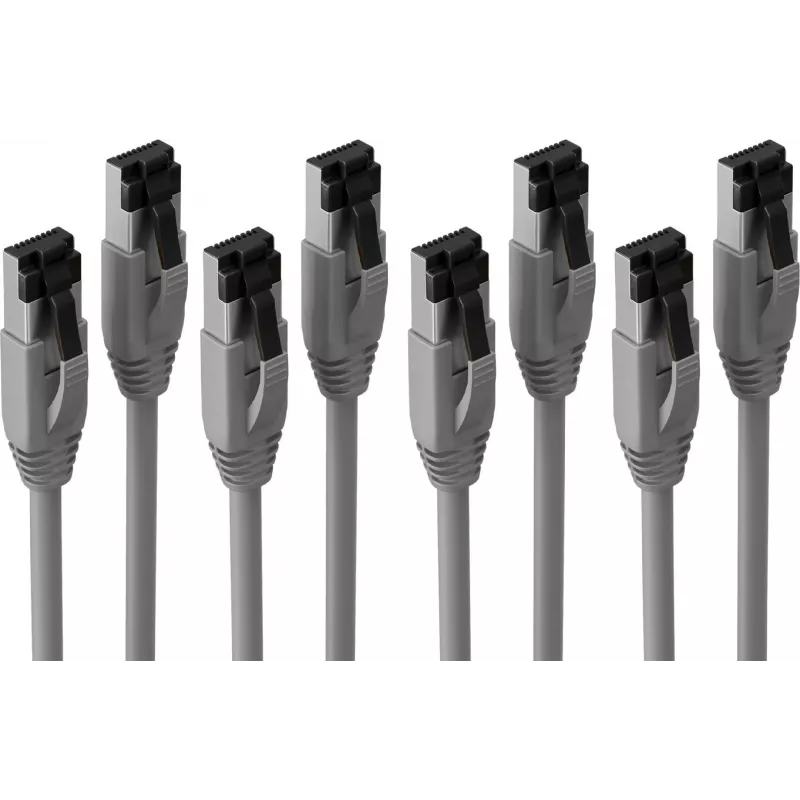

S CONN MAXIMUM CONNECTIVITY Cable de conexión Cat. 8.1 F/FTP PIMF LSZH, gris, 0,5m, pack de 4 SC08-41010-4

High-performance Cat. 8.1 patch cable for 25GBASE-T and 40GBASE-T Ethernet networks, delivering data transfer rates up to 40 Gbps and bandwidth up to 2000 MHz. Its F/FTP shielding with PIMF (pairs in metal foil) ensures superior protection against alien crosstalk and electromagnetic interference, making it ideal for data centers and high-density installations.

Advantages

This cable features a low-smoke zero-halogen (LSZH) jacket, which reduces toxic smoke and corrosive gases in the event of fire, enhancing safety in confined spaces. Gold-plated RJ45 connectors provide reliable connectivity and corrosion resistance. The stranded copper conductors (AWG 26/7) offer flexibility for easy routing in tight spaces.

Suitable for

• 25GBASE-T and 40GBASE-T Ethernet applications
• Data centers and server rooms
• High-performance workstation connections
• Network backbone cabling

Key specifications

• Category: Cat. 8.1 (Class I)
• Shielding: F/FTP (foiled/foiled twisted pair) with PIMF
• Jacket material: LSZH (low smoke zero halogen)
• Length: 0.5 m
• Connectors: RJ45 male to RJ45 male, gold-plated
• Data transfer rate: up to 40 Gbps
• Bandwidth: up to 2000 MHz
• Conductor: stranded copper, AWG 26/7
• Operating temperature: -20°C to 60°C
• Compliance: ISO/IEC 11801-1, TIA-568.2-D
• Pack size: 4 cables

Recommendations

For optimal performance, pair with Cat. 8.1 compatible equipment and ensure proper grounding of shielded connectors. Ideal for short, high-speed links in data center environments.
