S CONN MAXIMUM CONNECTIVITY Caja de extensión de red LSA Cat.6A 75001-1

Extend a Cat.6A network link with up to 10 Gigabit Ethernet and 500 MHz bandwidth using this shielded LSA connection box.

Overview

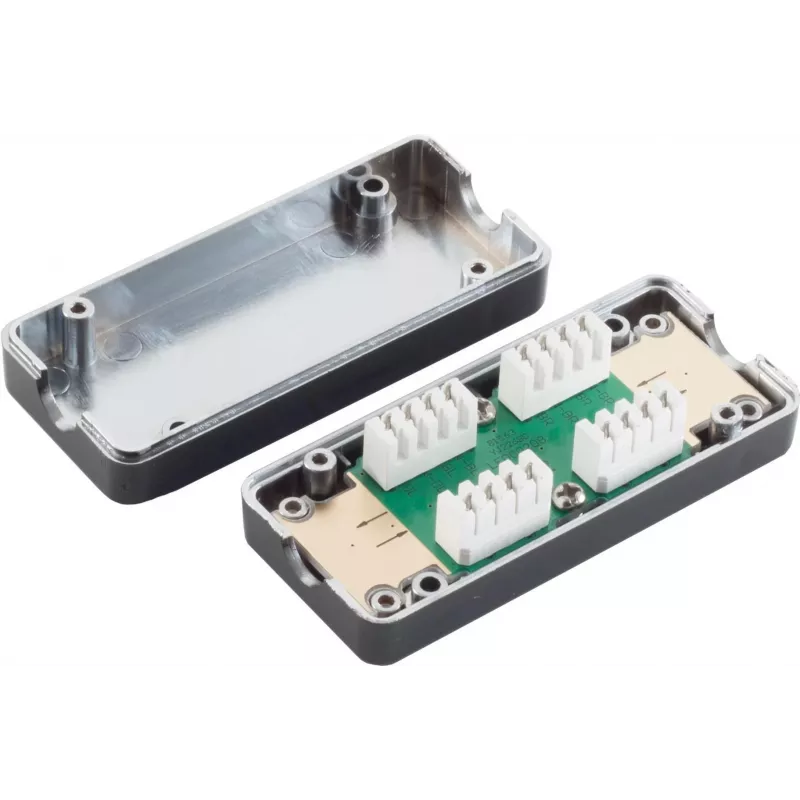

The S CONN MAXIMUM CONNECTIVITY 75001-1 is a network extension box that joins two Cat.6A cables using LSA insulation displacement connectors. It supports 10GBASE-T transmission up to 500 MHz, making it suitable for high-speed network extensions and repairs. The shielded housing protects signal integrity in electrically noisy environments.

What stands out

• Supports 10 Gigabit Ethernet over Cat.6A cabling
• LSA punch-down termination for solid or stranded wires, AWG 22-26
• Shielded FTP/STP design reduces electromagnetic interference
• Compact surface-mount plastic housing in light grey

Technical details

• Network standard: Cat.6A
• Transmission speed: up to 10 Gbit/s
• Frequency bandwidth: up to 500 MHz
• Connection technology: LSA (insulation displacement)
• Shielding: shielded (FTP/STP)
• Wire compatibility: solid and stranded, AWG 22-26
• Housing material: plastic
• Colour: light grey
• Mounting: surface mount
• Requires LSA punch-down tool (not included)

Our verdict

A reliable, high-performance solution for extending Cat.6A network runs without signal loss, ideal for professional installers.
