S CONN MAXIMUM CONNECTIVITY Set de cables de extensión PV4, 4 mm², 2x 15 m, negro 02-32085

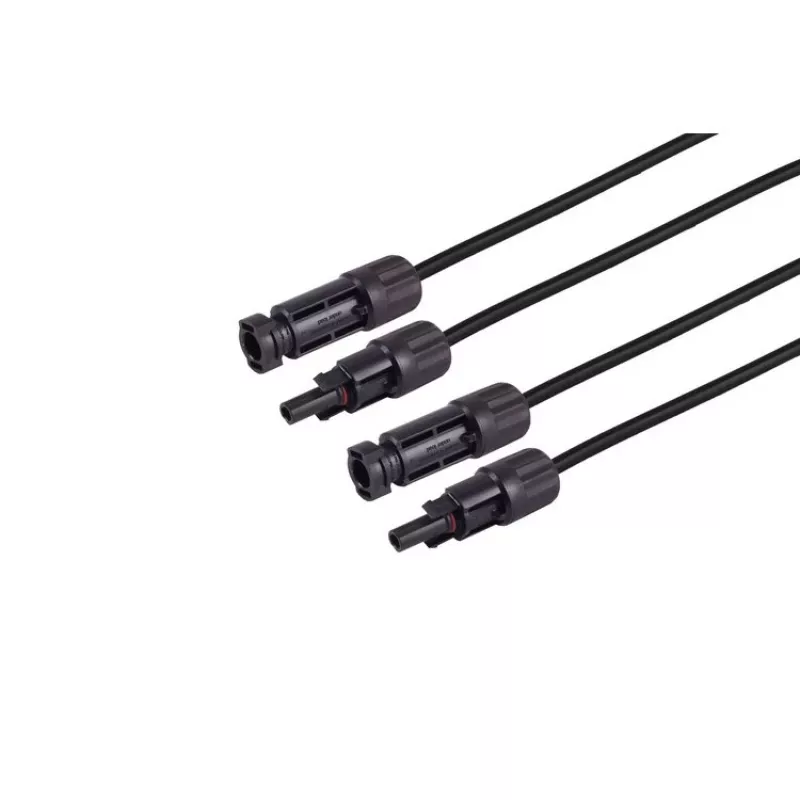

Solar extension cable set with PV4 connectors, 4 mm² cross-section, 15 m length, supplied as a pair of black cables. Delivers reliable DC power transmission for photovoltaic installations.

Advantages

Pre-assembled PV4 male and female connectors enable quick, tool-free connection of solar modules and inverters. Tinned copper conductors and XLPE insulation ensure durability and resistance to UV and weathering.

Suitable for

• Extending solar panel cables in residential and commercial PV systems
• Connecting solar modules to inverters or combiner boxes
• Outdoor installations requiring UV-resistant and weatherproof cabling

Key specifications

• Product Type: Solar Extension Cable Set
• Cable Type: PV4 (MC4 Compatible)
• Cable Cross-Section: 4 mm²
• Cable Length: 15 m
• Quantity: 2 Cables
• Connector Type (End 1): PV4 Male
• Connector Type (End 2): PV4 Female
• Color: Black
• Rated Voltage (DC): 1000 V
• Rated Current: 30 A
• Conductor Material: Tinned Copper
• Insulation Material: XLPE (Cross-linked Polyethylene)
• Jacket Material: XLPE (Cross-linked Polyethylene)
• UV Resistance: Yes
• Weather Resistance: IP67 (for connectors)
• Temperature Range: -40°C to +90°C
• Fire Performance: Flame Retardant
• Certification: TÜV Rheinland, CE

Recommendations

For best results, ensure connectors are fully seated and protected from direct water immersion. Use appropriate cable management to avoid strain on connections.
