SATEL BE WAVE Contacto magnético en carcasa hermética - blanco OPXM ABAX2

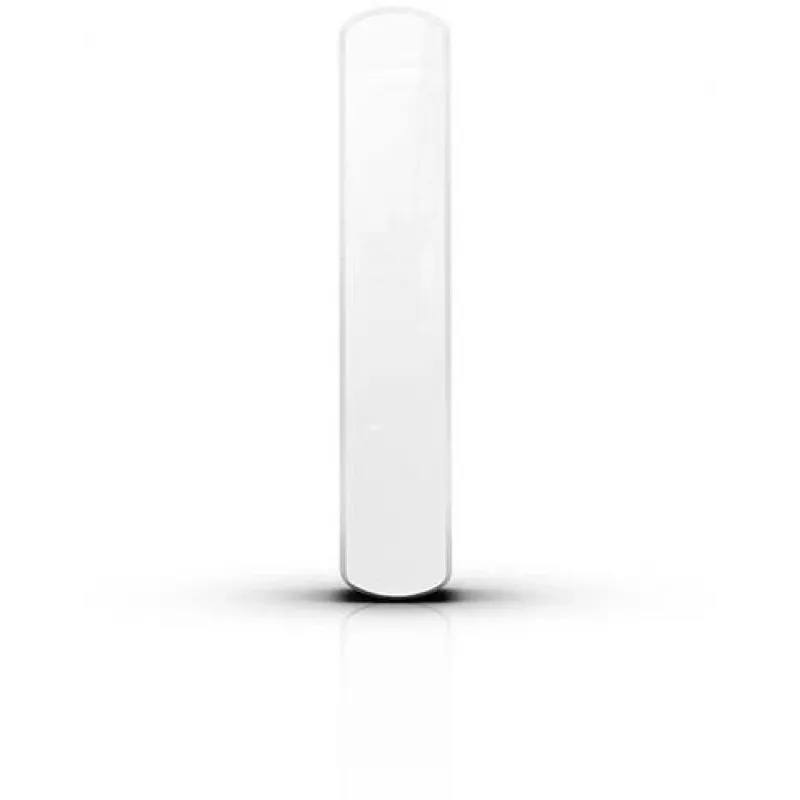

The SATEL OPXM-1 is a wireless magnetic contact detector designed for the ABAX2 two-way communication system. It features a reed switch sensor and a hermetic enclosure, making it suitable for indoor and outdoor use in security and alarm systems. The device operates at 868 MHz with a range of up to 2000 m in open areas and is powered by a CR123A lithium battery with up to 2 years of life. It includes tamper protection against enclosure opening and detachment from the mounting surface.

Advantages

Reliable magnetic contact detection with a maximum gap of 20 mm. Hermetic enclosure ensures protection against environmental factors. Two-way communication with the ABAX2 system provides status feedback and remote configuration via DLOADX software. Low power consumption extends battery life. Tamper protection enhances security.

Suitable for

• Perimeter and door/window monitoring in residential and commercial security systems
• Integration with SATEL ABAX2 wireless alarm systems
• Outdoor applications requiring weather-resistant detectors

Key specifications

• Detector Type: Magnetic Contact (Reed Switch)
• Wireless System: ABAX2
• Communication: Two-way
• Frequency: 868 MHz
• Range (Open Area): Up to 2000 m
• External Input: 1x NC
• Power: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 2 years
• Tamper Protection: Enclosure opening, detachment from mounting surface
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Security Grade: Grade 2 (EN 50131-1)
• Color: White
• Max Magnetic Gap: Approx. 20 mm
• Remote Configuration: Yes (via DLOADX)
• Signal Strength Indication: LED
• Standby Current: 20 µA
• Max Current: 22 mA
• Enclosure Material: ABS Plastic
• Mounting: Surface

Recommendations

For optimal performance, install the detector on a clean, dry surface and ensure the magnet is aligned within 20 mm of the sensor. Use only CR123A lithium batteries. Configure the device using DLOADX software for integration with the ABAX2 system.
