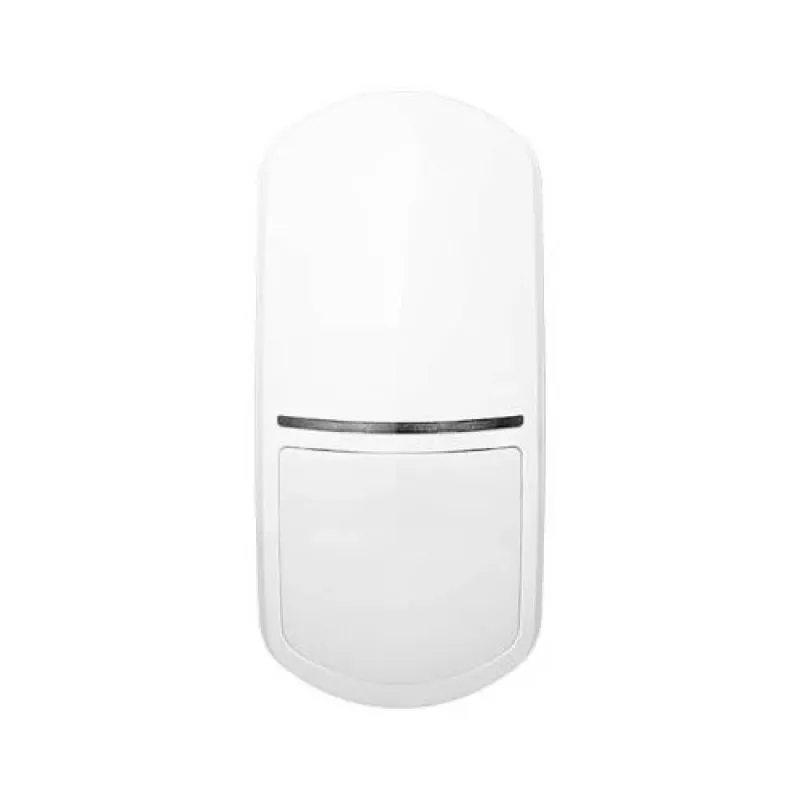

SATEL SLIM-DUAL-LUNA-PET-BUS detector de movimiento de doble tecnología con PIR y microondas, inmunidad a animales y luz blanca LUNA

Dual technology motion detector combining passive infrared (PIR) and microwave sensing for high reliability intrusion detection. The standout feature is its integrated LUNA white light illuminator, which can be triggered upon alarm or pre-alarm, deterring intruders and aiding CCTV identification. Pet immunity up to 20 kg prevents false alarms caused by animals, while the slimline enclosure blends unobtrusively into any interior.

Advantages

Dual PIR and microwave detection with digital signal processing significantly reduces false alarms while maintaining high catch performance. The active IR anti-masking function detects attempts to cover or obstruct the detector, and the anti-creep function protects the area directly beneath the device. Independent sensitivity adjustment for PIR and microwave channels allows precise tuning to the environment. Remote configuration and firmware updates via the SATEL BUS simplify installation and maintenance, with no need for physical access to the detector.

Suitable for

• Residential and commercial intrusion alarm systems requiring high security and low false alarm rates
• Installations with pets up to 20 kg, avoiding nuisance alarms
• Areas where visual deterrence or illumination upon alarm is desired, such as entrances, corridors, and large rooms
• SATEL alarm control panels with BUS communication (e.g., INTEGRA, PERFECTA series)

Key specifications

• Detection technology: PIR (passive infrared) + microwave (MW)
• Communication interface: SATEL BUS
• Detection range: 15 m x 24 m, 90° wide angle
• Microwave frequency: 24.125 GHz
• Pet immunity: up to 20 kg
• Power supply: 12 V DC from BUS, max current consumption 20 mA
• Security grade: EN 50131 Grade 2
• Operating temperature: -10°C to +55°C
• Tamper protection: front cover tamper
• Anti-masking: active IR
• Anti-creep: yes
• Digital signal processing: yes
• Sensitivity adjustment: independent PIR and MW
• LED indicators: alarm, pre-alarm, LUNA (white illumination)
• Remote configuration and firmware update via BUS
• Enclosure type: slimline

Recommendations

For optimal performance, mount the detector at a height of 2.4 m using the adjustable bracket (available separately). Configure the LUNA illumination duration and trigger conditions via the control panel. Perform a walk test after installation to verify coverage and adjust sensitivity as needed. Ensure the BUS wiring is properly terminated and the detector is enrolled in the system before closing the cover.
