SATEL Transmisor universal inalámbrico AUT-200

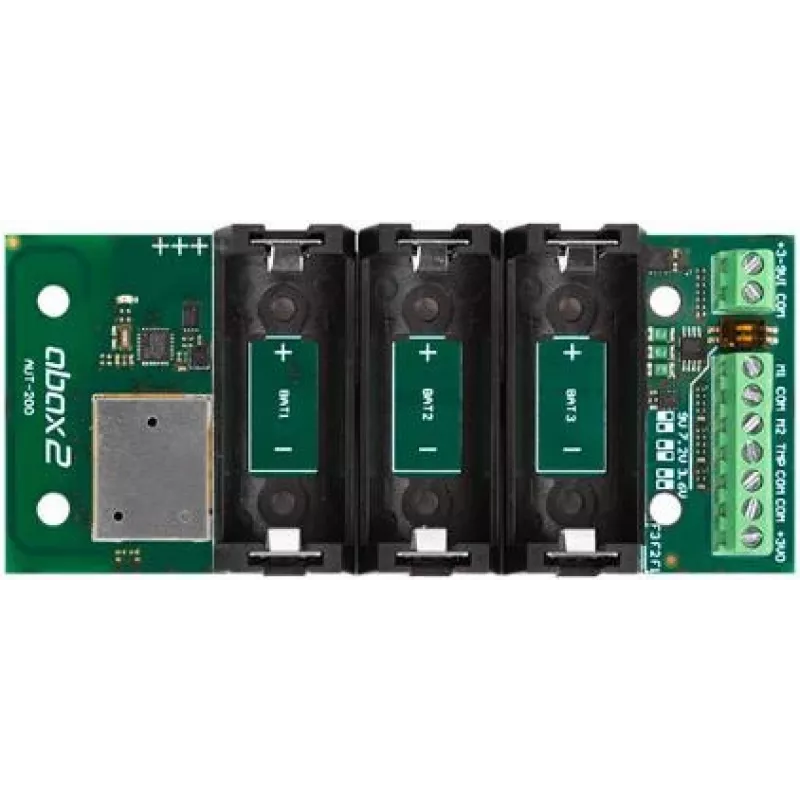

The SATEL AUT-200 is a universal wireless transmitter designed for integration with SATEL ABAX and ABAX 2 wireless systems. It provides reliable two-way communication and supports up to 2 configurable inputs (NO/NC), making it ideal for alarm systems, access control, and automation applications. Powered by a single CR123A lithium battery, it offers up to 2 years of battery life in ABAX 2 mode and features tamper protection against enclosure opening.

Advantages

Easy installation and configuration via remote programming. Long wireless range up to 2000 m in open area (ABAX 2). Low standby current consumption (0.02 mA) ensures extended battery life. Compact plastic housing suitable for indoor use.

Suitable for

• Alarm system sensors and detectors
• Access control devices
• Home and building automation
• Industrial monitoring and control

Key specifications

• Wireless System Compatibility: SATEL ABAX 2, SATEL ABAX
• Operating Frequency Band: 868 MHz
• Number of Inputs: 2 (configurable NO/NC)
• Power Supply: 1x CR123A 3V Lithium Battery
• Battery Life (ABAX 2): Up to 2 years
• Wireless Range (ABAX 2, Open Area): Up to 2000 m
• Operating Temperature Range: -10°C to +55°C
• Tamper Protection: Yes (enclosure opening)
• Communication Type: Two-way
• Alarm Memory: Yes
• Signal Strength Indication: Yes
• Remote Configuration: Yes
• Current Consumption (Standby): 0.02 mA
• Housing Material: Plastic

Recommendations

For optimal performance, use SATEL ABAX 2 controllers and ensure proper antenna placement. Test signal strength during installation. Replace battery when low battery indication appears.
