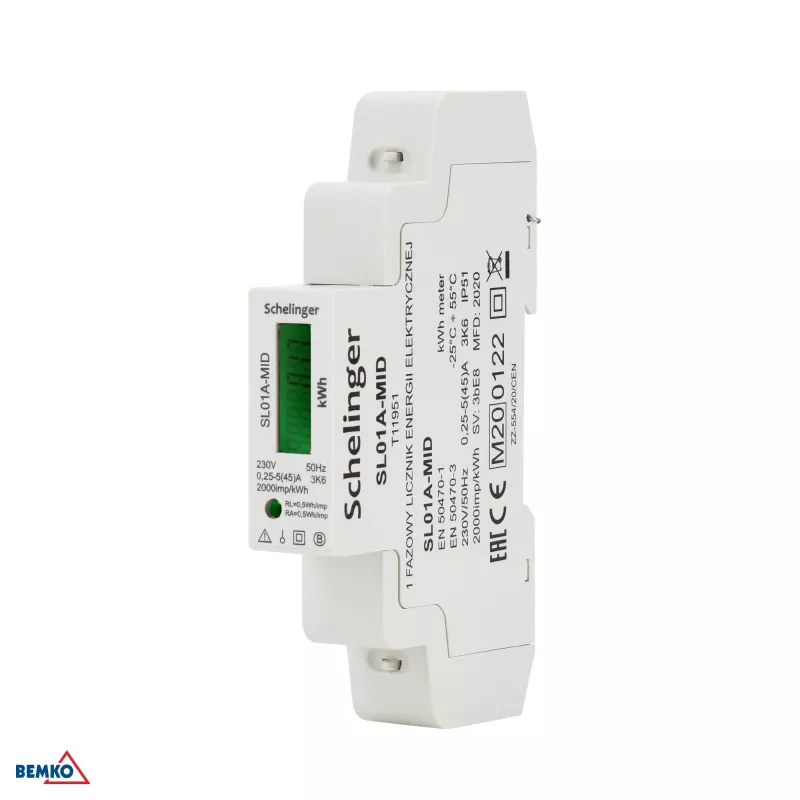

SCHELINGER A31-SL01A-MID Contador de energía monofásico MID 45A

The SCHELINGER A31-SL01A-MID is a high-quality single-phase energy meter designed for accurate measurement of active energy in residential and commercial applications. Certified according to the MID Directive 2014/32/EU, this meter ensures compliance with European standards for billing purposes. With a maximum current of 45A and a compact DIN rail mounting design, it is ideal for sub-metering and energy monitoring systems.

Advantages

MID certification guarantees legal metrological performance for billing. The clear LCD display with blue backlight provides easy reading even in low light. The S0 pulse output enables remote reading and integration with energy management systems. Class B accuracy ensures precise measurement.

Suitable for

• Residential energy billing
• Commercial sub-metering
• Energy monitoring and management systems
• DIN rail distribution boards

Key specifications

• Single-phase, 230 V AC, 50 Hz
• Nominal current: 5 A, Maximum current: 45 A
• Accuracy Class B (Class 1)
• LCD display with blue backlight
• S0 pulse output (1000 imp/kWh)
• DIN rail mounting (1 module)
• Operating temperature: -25°C to +55°C
• Protection rating: IP20
• Power consumption: < 2 W / 10 VA
• Standards: EN 50470-1/3, IEC 62053-21/23

Recommendations

For optimal performance, install the meter in a clean, dry environment within the specified temperature range. Ensure proper connection of the S0 pulse output to a compatible data logger or energy management system. This meter is suitable for direct connection up to 45 A; for higher currents, use a current transformer.
