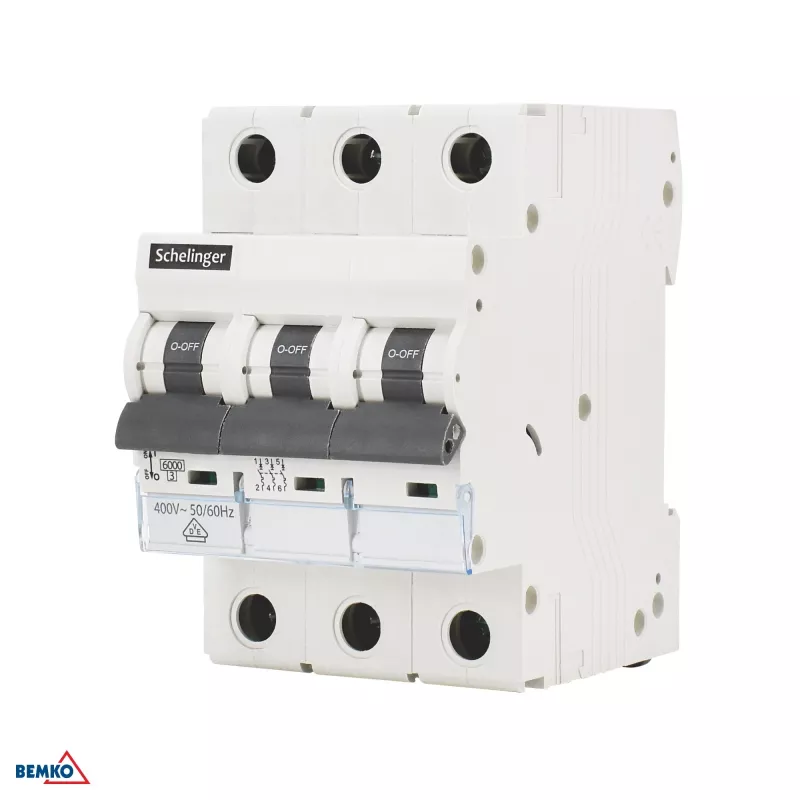

SCHELINGER Interruptor automático 6kA 3P C 6A VDE

SCHELINGER Interruptor automático 6kA 3P C 6A VDE
SCHELINGER Interruptor automático 6kA 3P C 6A VDE
9,98 €
PDF
PDF
Stock 12 Código 3101118 Modelo A02-G8-3P-C06 Garantía 3 años

Envíos y devoluciones

Entrega estimada martes, 1 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

The SCHELINGER A02-G8-3P-C06 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent and short-circuit protection in electrical installations. With a 6kA breaking capacity and C-curve tripping characteristic, it is ideal for protecting circuits with moderate inrush currents, such as lighting and general power distribution.

Advantages

This MCB offers robust protection with a compact 3-module design, easy DIN rail mounting, and screw terminals for secure wiring. It is VDE and CE certified, ensuring compliance with international safety standards. The C-curve provides optimal protection for inductive loads, while the high breaking capacity ensures safety under fault conditions.

Suitable for

  • Residential and commercial electrical panels
  • Lighting circuits
  • General power distribution
  • Inductive load protection (e.g., motors, transformers)

Key specifications

  • Product Type: Miniature Circuit Breaker (MCB)
  • Number of Poles: 3P
  • Rated Current: 6 A
  • Tripping Characteristic: C-curve
  • Short-circuit Breaking Capacity: 6 kA
  • Rated Voltage: 230/400 V AC
  • Frequency: 50/60 Hz
  • Mounting: DIN Rail
  • Standard: EN 60898-1
  • Certification: VDE, CE
  • Terminal Capacity (Rigid): Up to 35 mm²
  • Terminal Capacity (Flexible): Up to 25 mm²
  • Electrical Endurance: 10,000 cycles
  • Mechanical Endurance: 20,000 cycles
  • Protection Degree (Terminals): IP20
  • Protection Degree (Front): IP40
  • Operating Temperature: -25°C to +55°C
  • Energy Limiting Class: 3
  • Connection Type: Screw terminals
  • Module Width: 3 modules (52.5 mm)

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This MCB is suitable for use in distribution boards and sub-distribution boards. Always verify compatibility with your system's voltage and current requirements.

Especificaciones

Especificaciones
Cantidad por paquete
1
Categoría
Interruptor magnetotérmico (MCB)
Certificación
VDE, CE
Certificados de conformidad
EN 60898-1
EAN
5900280970947
Marca
SCHELINGER
Modelo
A02-G8-3P-C06
MPN
A02-G8-3P-C06
Peso
0.33 kg
