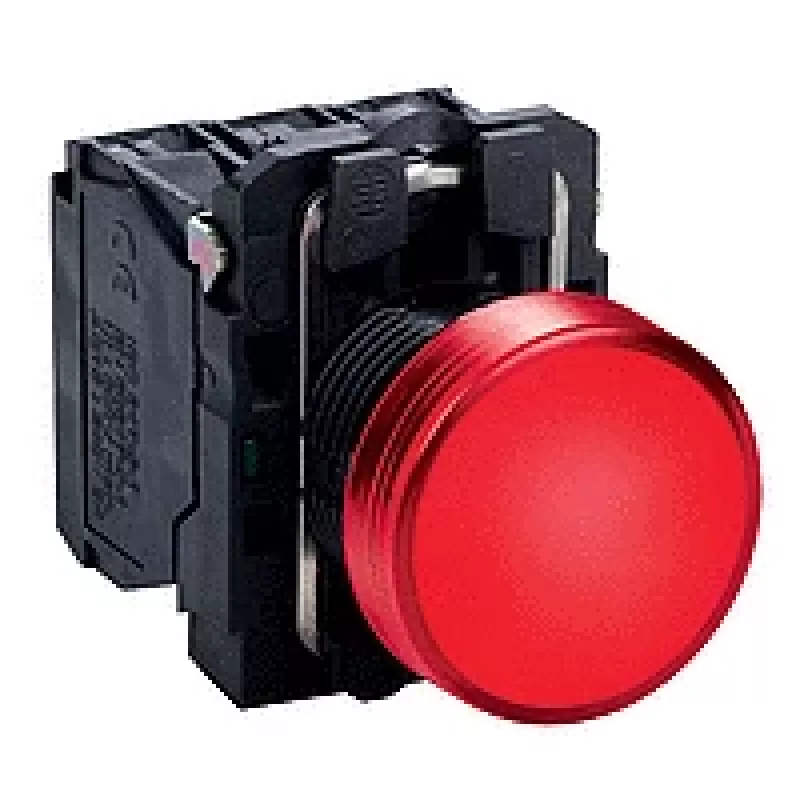

Schneider Electric XB5AVB4 pulsador luminoso, 22 mm, 24 V AC/DC, LED rojo, 1 NO, IP66

The Schneider Electric XB5AVB4 is a high-quality illuminated push button from the Harmony XB5 series, designed for reliable control and signaling in industrial environments. With a 22 mm mounting diameter and a flush, round operator, this momentary push button features an integral red LED for clear visual indication. It operates at 24 V AC/DC and includes one normally open (NO) contact. The front panel offers robust protection with IP66, IP67, IP69, and IP69K ratings, as well as NEMA 13 and 4X, making it suitable for harsh conditions. Screw clamp terminals ensure secure and easy wiring.

Advantages

This illuminated push button provides exceptional durability with a mechanical life of 10,000,000 cycles and electrical durability of 1,000,000 cycles. Its high ingress protection ratings allow use in demanding environments such as food processing, automotive, and chemical industries. The integral LED eliminates the need for external lighting, simplifying installation and reducing maintenance. Compliance with international standards (CE, UL, CSA, CCC, EAC) ensures global acceptance.

Suitable for

• Industrial control panels
• Machine control stations
• Process automation systems
• Building management systems
• Marine and offshore applications

Key specifications

• Product Type: Illuminated Push Button
• Series: Harmony XB5
• Mounting Diameter: 22 mm
• Operator Type: Flush, Round
• Operator Action: Momentary (Spring Return)
• Illumination: Integral LED, Red
• Supply Voltage: 24 V AC/DC
• Contact Configuration: 1 NO
• IP Rating: IP66, IP67, IP69, IP69K
• NEMA Rating: NEMA 13, 4X
• Terminal Type: Screw Clamp
• Bezel Material: Plastic
• Operating Temperature: -25 to 70 °C
• Mechanical Durability: 10,000,000 cycles
• Electrical Durability: 1,000,000 cycles
• Standards: EN/IEC 60947-5-1
• Short Circuit Protection: 10 A cartridge fuse
• Shock Resistance: 30 gn

Recommendations

For optimal performance, pair this push button with Schneider Electric's Harmony XB5 range of accessories, such as contact blocks and legend plates. Ensure the supply voltage matches the device rating (24 V AC/DC) and use appropriate fusing for short circuit protection. This product is ideal for applications requiring robust, illuminated control in wet or dusty environments.
