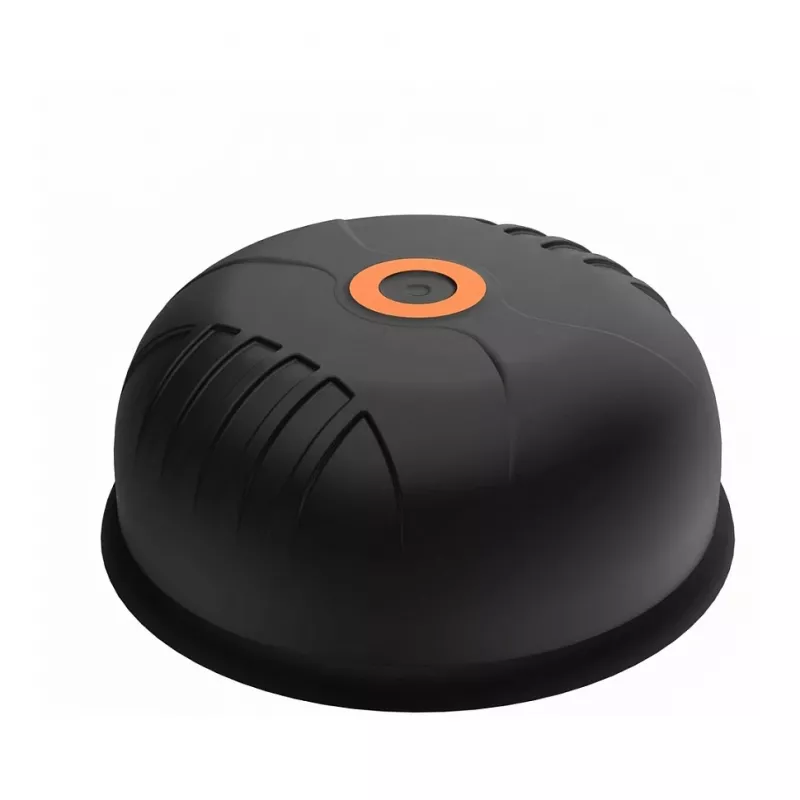

Poynting A-MIMO-0004-V2-17-B Antena MIMO 5G/LTE/Wi-Fi para vehículo y marina, negro, 4 conectores SMA macho, cable de 2 m, IP68

The Poynting A-MIMO-0004-V2-17-B is a high-performance multi-band MIMO antenna designed for 5G/LTE, Wi-Fi, and GPS/GLONASS applications in vehicle, marine, and industrial IoT environments. This robust antenna delivers reliable connectivity with 2x2 MIMO for cellular and Wi-Fi, ensuring enhanced data speeds and signal quality. With an IP68 and IK10 rating, it withstands harsh outdoor conditions. The antenna includes four SMA male connectors and 2-meter HDF 195 cables for easy installation.

Advantages

Supports 5G/LTE, Wi-Fi 6E, and GPS/GLONASS in a single compact unit. High gain up to 7.5 dBi for extended range. Rugged UV-stable ASA radome and IP68 protection ensure durability in extreme environments. Easy mounting via spigot or adhesive surface mount.

Suitable for

• Vehicle (car, truck, RV, emergency vehicle)
• Marine (boat, yacht)
• Industrial IoT and remote monitoring
• Public safety and fleet management

Key specifications

• Antenna Type: Multi-Band MIMO Antenna
• Cellular Frequency: 617-960 MHz, 1710-2700 MHz, 3400-4200 MHz
• Wi-Fi Frequency: 2400-2500 MHz, 5000-6000 MHz
• Max Cellular Gain: 6 dBi
• Max Wi-Fi Gain: 7.5 dBi
• MIMO: 2x2 Cellular, 2x2 Wi-Fi
• Connectors: 4x SMA Male
• Cable Length: 2 meters per cable
• Cable Type: HDF 195
• Mounting: Spigot mount, surface mount (adhesive)
• IP Rating: IP68
• IK Rating: IK10
• Operating Temperature: -40°C to +80°C
• Polarization: Linear Vertical
• VSWR: < 2.5:1
• Radome Material: UV Stable ASA
• Color: Black

Recommendations

For optimal performance, pair with a compatible 5G/LTE router or modem. Ensure proper grounding and cable routing to minimize signal loss. Suitable for both roof and deck mounting.
