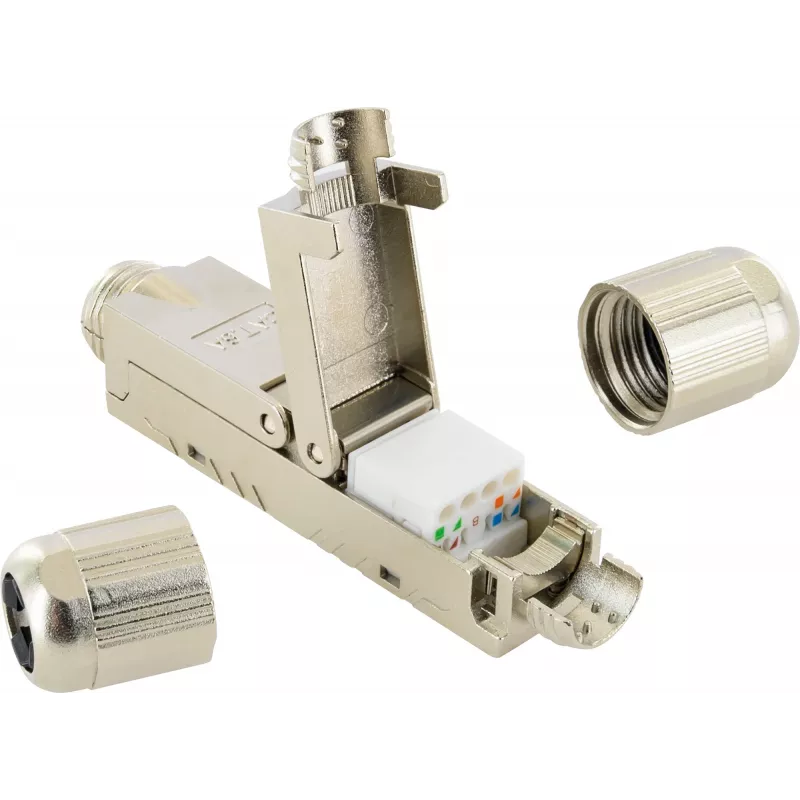

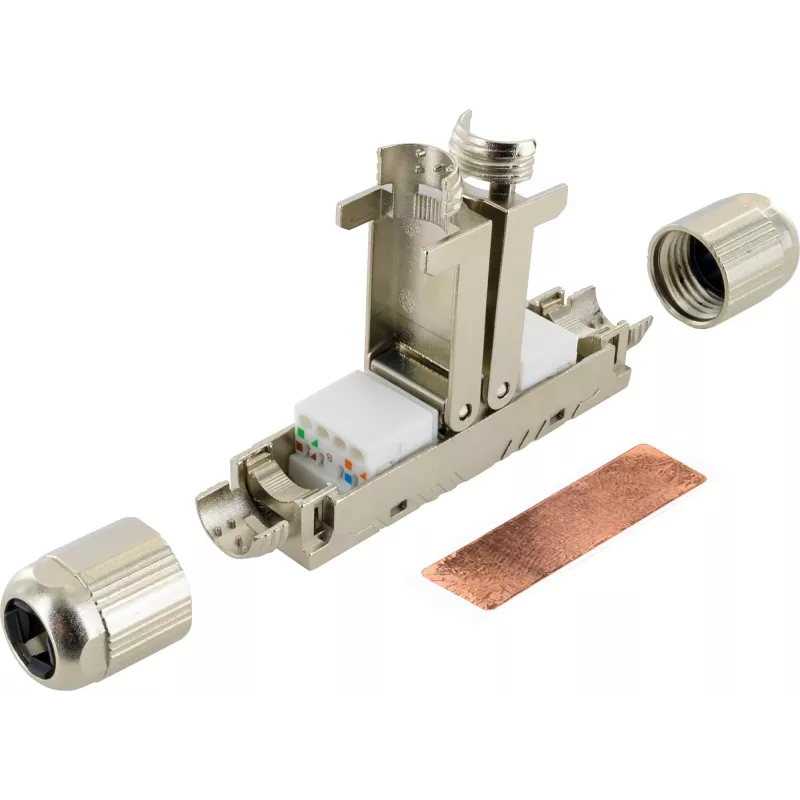

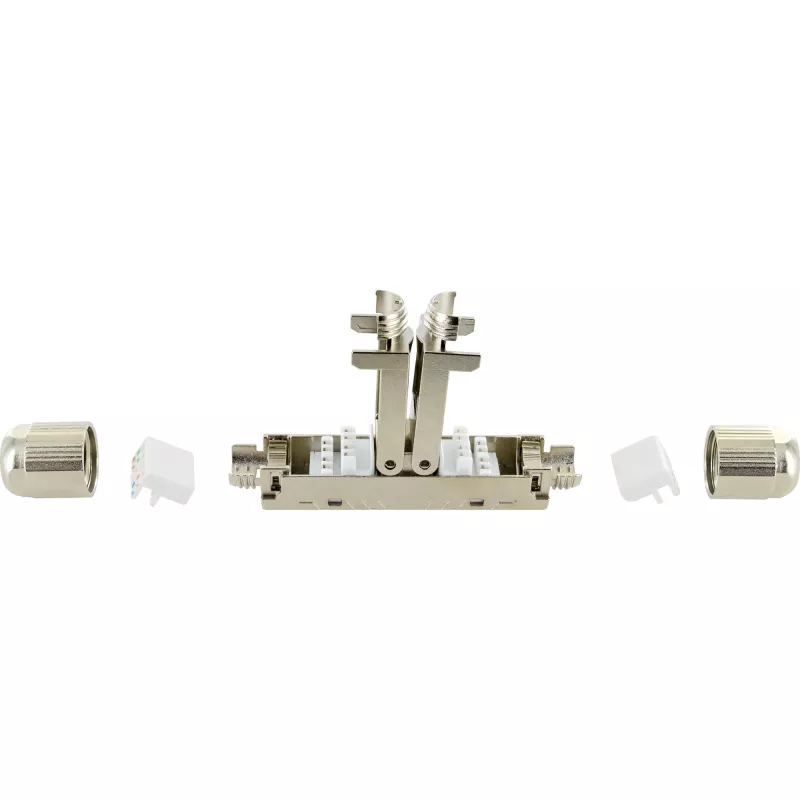

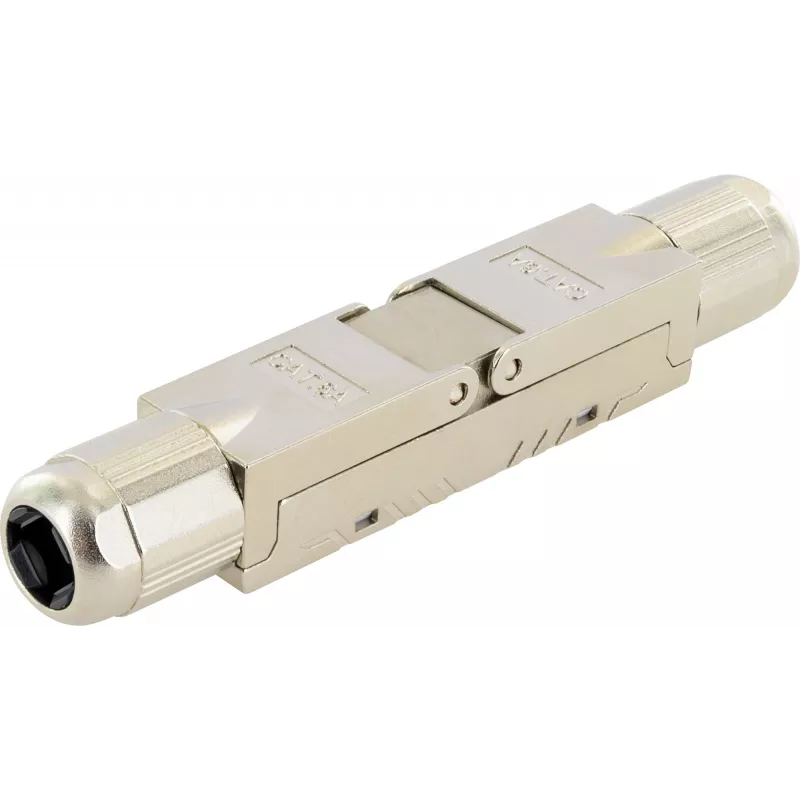

Schwaiger conector de cable de red Keystone CAT 6A blindado módulo RJ45 sin herramientas

The Schwaiger Keystone Network Cable Connector CAT 6A is a high-performance keystone module designed for reliable 10 Gigabit Ethernet connections. This shielded (FTP/STP) module supports bandwidth up to 500 MHz and is ideal for structured cabling in patch panels, wall outlets, and surface mount boxes.

Advantages

Tool-free termination simplifies installation, saving time and effort. The zinc die-cast housing provides excellent shielding against electromagnetic interference, ensuring stable data transmission. Gold-plated contacts (50µ) guarantee long-term reliability and corrosion resistance.

Suitable for

• Data centers and server rooms requiring high-speed network infrastructure
• Office and home network installations with CAT 6A cabling
• Integration into keystone-compatible patch panels and faceplates

Key specifications

• Product Type: Keystone Module
• Network Standard: CAT 6A (Category 6A)
• Shielding: Shielded (FTP/STP)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Front Connector: RJ45 Female
• Rear Connector: IDC (Insulation Displacement Connector)
• Termination Method: Tool-free
• Conductor Compatibility: AWG 22-26 (Solid & Stranded)
• Wiring Scheme: TIA/EIA 568A/B
• Housing Material: Zinc Die-Cast (Shielding), Plastic
• Contact Plating: Gold-plated (50µ)
• Mounting Type: Snap-in (Keystone Standard)
• Application: Patch Panels, Wall Outlets, Surface Mount Boxes
• Certifications: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Operating Temperature: -10°C to +60°C
• Color: Silver / Black

Recommendations

For optimal performance, pair this module with CAT 6A shielded cables and compatible keystone patch panels. Ensure proper grounding of the shielding for maximum EMI protection.
