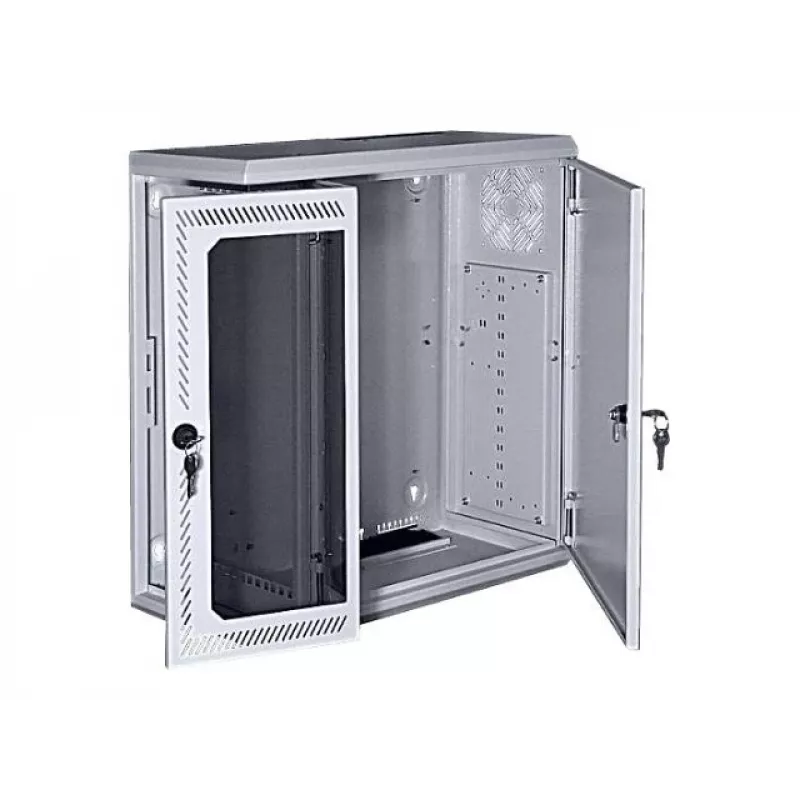

SCHWEITZER SYSTEMTECHNIK MultiFix caja de pared 19" 3U 48,3 cm (19") gris claro RAL 7035

The SCHWEITZER SYSTEMTECHNIK MultiFix 19-inch Wall Mount Enclosure is a robust and versatile housing solution designed for secure wall mounting of 19-inch rack equipment. With a 3U height and a width of 48.3 cm (19 inches), this enclosure provides ample space for networking, audio/video, or industrial components. Its light grey (RAL 7035) steel sheet construction ensures durability and a professional appearance, while the glass door with cylinder lock offers visibility and security. Ideal for IT rooms, workshops, or commercial environments, this enclosure combines functionality with ease of installation.

Advantages

This enclosure offers a space-saving wall-mounted design that frees up floor space, making it perfect for areas with limited room. The glass door allows for quick visual inspection of equipment without opening the enclosure, while the cylinder lock provides reliable security with two included keys. Pre-punched cable entries at the top and bottom simplify cable management, and the passive ventilation ensures adequate airflow for most applications. With a maximum load capacity of 20 kg, it can accommodate a variety of devices.

Suitable for

• Networking equipment such as switches, patch panels, and routers
• A/V components like amplifiers, receivers, and media players
• Industrial control systems and automation hardware
• Server and IT infrastructure in small to medium-sized installations

Key specifications

• Product Type: 19-inch Wall Mount Enclosure
• Rack Units: 3U
• Rack Width: 19 inch (48.3 cm)
• External Dimensions (W x H x D): 540 x 170 x 300 mm
• Usable Depth: Approx. 250 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel Sheet
• Door Type: Glass Door with Cylinder Lock
• Number of Keys: 2
• Cable Entry: Top and Bottom (pre-punched)
• Protection Class: IP20
• Mounting Type: Wall Mounting
• Max. Load Capacity: 20 kg
• Ventilation: Passive

Recommendations

For optimal performance, ensure the enclosure is mounted on a solid wall capable of supporting the total weight of the enclosure and installed equipment. Use appropriate screws and wall anchors (not included). This enclosure is designed for indoor use only.
