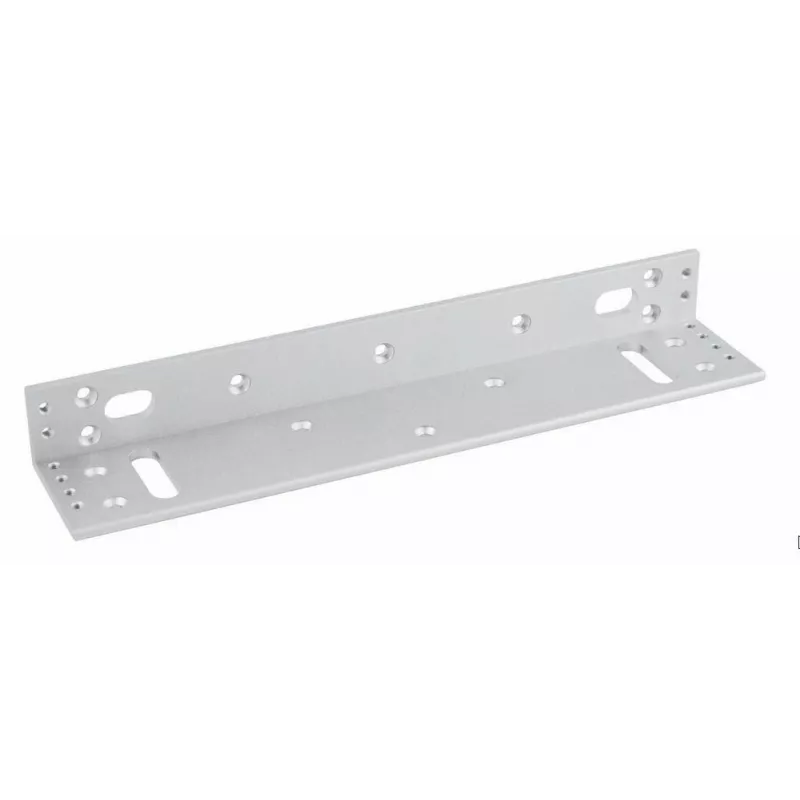

SCOT BK-800L2 Escuadra de montaje tipo L para puertas de apertura hacia fuera

The SCOT BK-800L2 is a high-quality L-type mounting bracket designed specifically for securing electromagnetic locks on outward opening doors. Crafted from high-strength aluminum alloy with an anodized finish, this bracket ensures durability and corrosion resistance for long-lasting performance. It is compatible with electromagnetic locks holding up to 280 kg (600 lbs) and includes all necessary mounting hardware for easy surface installation on the door frame.

Advantages

This bracket provides a robust and reliable mounting solution for electromagnetic locks, ensuring secure attachment and optimal alignment of the armature plate. Its L-type design is tailored for outward opening doors, offering a perfect fit and easy installation. The anodized aluminum construction resists corrosion and wear, making it suitable for both indoor and outdoor environments.

Suitable for

• Outward opening doors requiring electromagnetic lock mounting
• Access control systems in commercial, industrial, and residential buildings
• Installations where high holding force (up to 280 kg) is needed

Key specifications

• Bracket Type: L-Type
• Material: High-Strength Aluminum Alloy
• Finish: Anodized
• Color: Silver
• Compatible Lock Holding Force: 280 kg (600 lbs)
• Mounting Type: Surface Mount
• Mounting Position: Door Frame
• Operating Temperature: -10°C to +55°C
• Humidity Range: 0-95% (non-condensing)
• Included Hardware: Mounting screws and accessories

Recommendations

For optimal performance, ensure the bracket is securely fastened to the door frame using the provided hardware. Verify compatibility with your electromagnetic lock model before installation. Regular inspection is recommended to maintain secure mounting.
