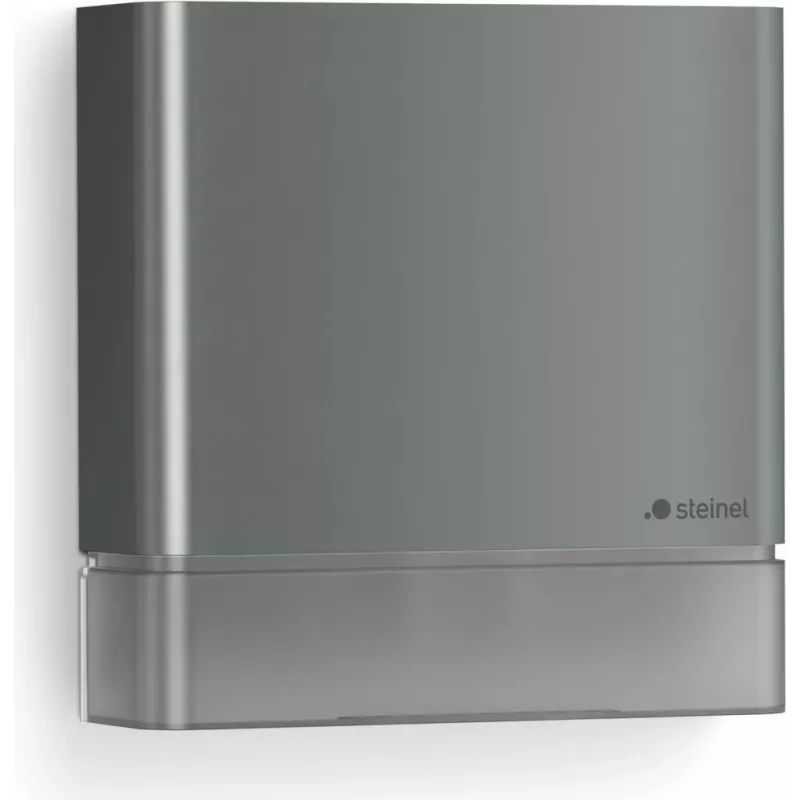

Sensor láser STEINEL IS 180 con cable de pared Antracita Exterior

The STEINEL IS 180 Wired Wall Anthracite Outdoor is a wired outdoor laser sensor designed for wall mounting. It features a flat, straight-lined housing with discreet lens optics that integrate seamlessly into the case, giving the sensor an unobtrusive appearance. The device operates on 220–240 V with a standby power consumption of approximately 0.6 W and has compact dimensions of 116 mm × 116 mm × 42 mm. Built for reliable outdoor detection, the IS 180 digi combines refined design with advanced infrared detection technology and Bluetooth connectivity for configuration.

Advantages

The IS 180 digi offers enhanced detection precision through a 180° detection field and newly developed mirror technology that improves response to both tangential and radial movements. Zone-by-zone digital configuration and individually adjustable sensitivity for three zones simplify commissioning compared with older infrared sensors. Its integrated lens design produces a discreet exterior suitable for unobtrusive wall mounting, and Bluetooth support with the STEINEL Connect App allows easy setup, operation and networking.

Suitable for

• Outdoor wall-mounted motion detection for residential buildings
• Perimeter monitoring of entrances, walkways and patios
• Integration with outdoor lighting and alarm systems

Key specifications

• Brand: Steinel
• Model: IS 180 (IS 180 digi)
• MPN: 067274
• EAN: 4007841067274
• Power: 220–240 V
• Power consumption (standby): 0.6 W
• Detection angle: 180°
• Detection range: up to 8 m (direction of movement irrelevant within this radius)
• Dimensions: 116 × 116 × 42 mm
• Finish: Anthracite
• Mounting: Wired wall mount (outdoor)
• Connectivity: Bluetooth (STEINEL Connect App)

How to use

Mount the IS 180 Wired Wall sensor on a suitable outdoor wall surface following local electrical regulations and connect to the 220–240 V supply. Use the STEINEL Connect App over Bluetooth to perform zone-by-zone digital delimitation, set sensitivity independently for each of the three zones, and adjust other parameters. After configuration, test the detection field up to a radius of about 8 m to confirm coverage and make fine adjustments as needed.

Recommendations

Install the sensor at a height and angle that avoid facing heat sources or direct sunlight to maintain detection accuracy. For reliable operation outdoors, ensure the mounting location is sheltered from heavy water ingress and perform functional tests after installation and after significant environmental changes.
