Set de montaje Bachmann 911.913 Gris

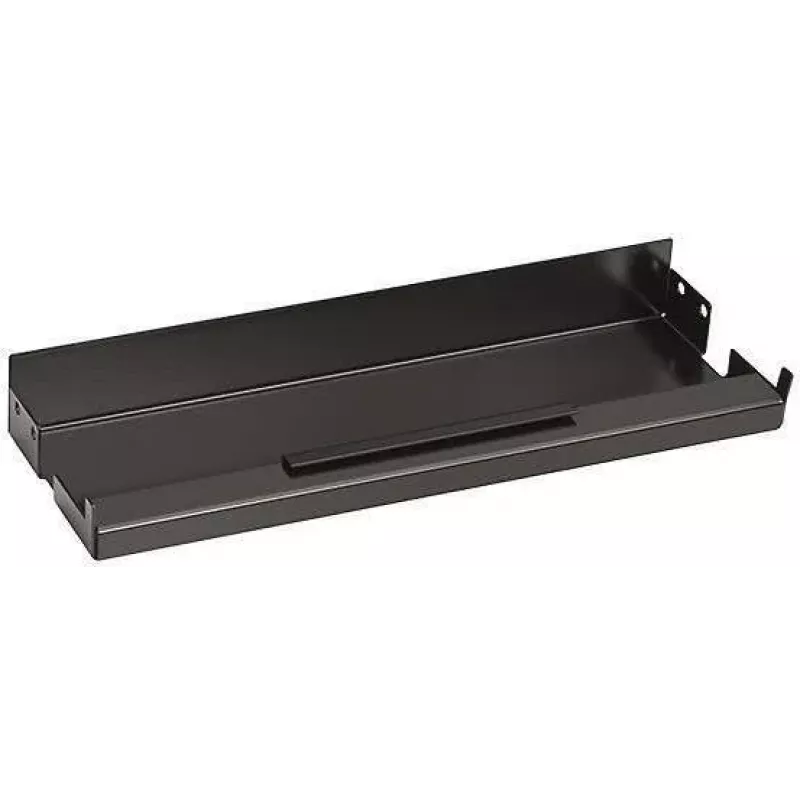

Bachmann CONI holder long (911.913) is an accessory designed for optional mounting on the long Bachmann CONI mounting frame. It provides a tidy way to stow excess cable length when connectors are in use and increases the usable recess depth behind the mounting frame by approximately 20 mm. The holder is supplied in black and is intended for use with CONI mounting frames.

Advantages

The holder allows convenient storage of cable slack when plugs are fitted and is simple to install by hooking into an already fitted mounting frame. Plastic rivets are supplied for secure attachment, and the extra built-in depth helps accommodate larger connector backs or cable loops without modifying the existing frame.

Suitable for

• Mounting with Bachmann CONI long mounting frames
• Stowing excess cable length behind wall outlets or panels
• Professional and DIY electrical installations requiring extra rear depth

Key specifications

• Manufacturer: Bachmann
• Model / MPN: 911.913
• Colour: Black (product also referenced in grey mounting kit listings)
• Additional built-in depth: approx. 20 mm
• Fixing method: hooks into CONI mounting frame; plastic rivets supplied

How to use

Hook the holder into the already fitted Bachmann CONI long mounting frame at the intended position, then secure it using the supplied plastic rivets. Route connectors and excess cable into the holder so that slack is contained behind the mounting frame. Ensure the holder is properly seated in the frame and the rivets are fully engaged to maintain secure attachment.

Recommendations

Use this holder with the matching Bachmann CONI long mounting frame; verify compatibility of connector sizes and cable bundles before installation to ensure the extra 20 mm depth is sufficient.
