Set de soporte Brodit 215792 Plástico negro

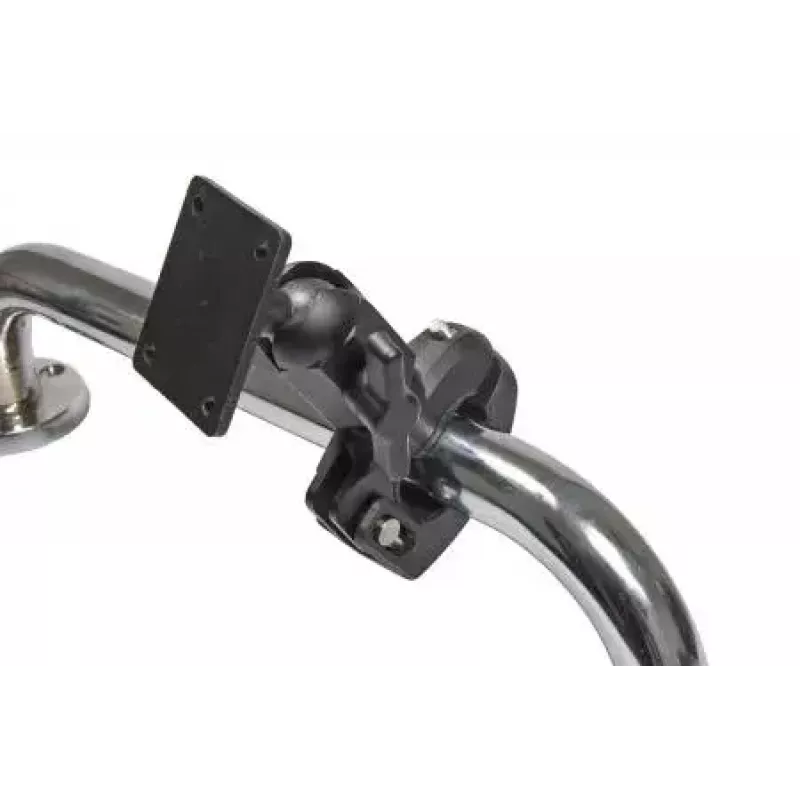

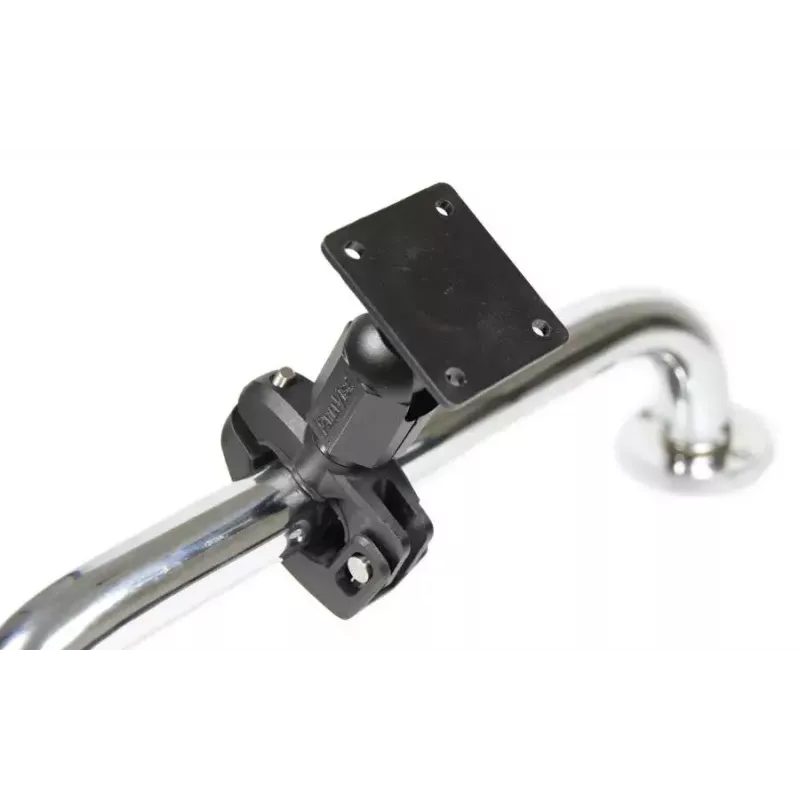

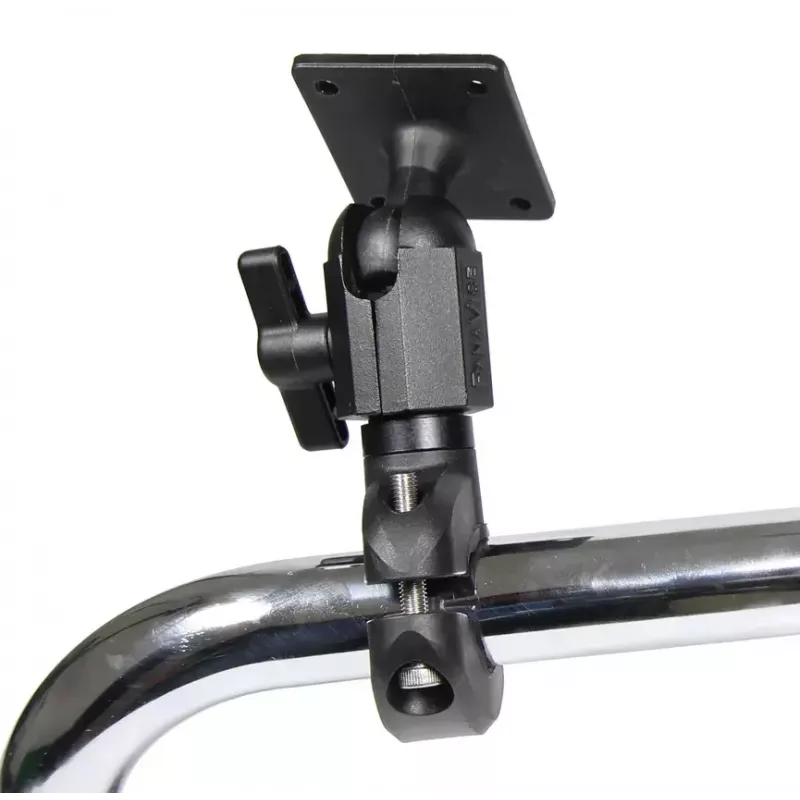

Pipe Mount with mounting plate for secure attachment of devices to round or oblong bars. The Brodit 215792 is made of black plastic and includes a 50x42 mm mounting plate with pre-drilled AMPS holes. The clamp fits round tubes with diameters from 22 to 31 mm and oblong bars between 19x25 mm and 22x35 mm. The plate is connected to a tilt swivel that provides 210° tilt and 360° rotation for flexible positioning.

Advantages

The mounting kit is lightweight yet robust, made of durable black plastic to resist everyday use. Pre-drilled AMPS holes on the 50x42 mm plate simplify attachment of compatible device holders and accessories. The wide adjustment range for round and oblong bars and the tilt-and-rotate swivel deliver versatile mounting positions for varied installation environments.

Suitable for

• Motorcycles
• Boats
• Carts and trolleys
• Stands and display rigs
• Wheelchairs
• Aircraft interiors

Key specifications

• Model: Brodit 215792
• Material: Black plastic
• Mounting plate size: 50 x 42 mm
• Plate holes: Pre-drilled AMPS pattern
• Round bar compatibility: 22–31 mm diameter
• Oblong bar compatibility: 19 x 25 mm to 22 x 35 mm
• Swivel/tilt: 360° rotation, 210° tilt
• Brand: Brodit
• MPN: 215792
• EAN: 7320282157920

How to use

Choose a compatible round or oblong bar and open the clamp to fit around the tube or bar. Secure the clamp at the required position using the integrated fasteners. Attach the device holder or accessory to the 50x42 mm mounting plate using the AMPS screw pattern. Adjust tilt up to 210° and rotate the plate up to 360° to achieve the desired viewing angle, then tighten all fasteners to lock the position.

Recommendations

Ensure the chosen bar falls within the specified diameter or oblong dimensions before installation. Tighten all fasteners firmly but avoid over-torquing plastic components. Regularly check the mount and fasteners for wear or loosening, especially in high-vibration environments such as motorcycles or boats.
