ShiverPeaks conector hembra mono de 3,5 mm 51352 — conexión de audio mono, conector hembra jack de 3,5 mm

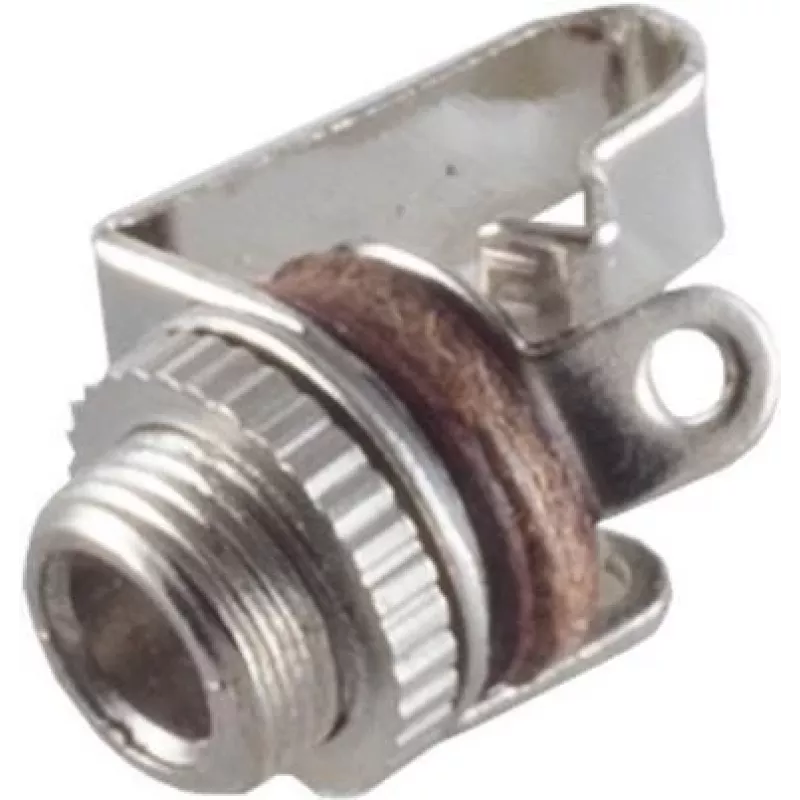

The ShiverPeaks Mono 3.5 mm Socket 51352 is a mono audio jack socket intended for single-channel 3.5 mm connections. It provides a compact physical interface for transmitting mono audio signals between devices such as instruments, portable players, amplifiers or custom electronic projects. The design supports panel or PCB mounting in applications where a single-channel input or output is required and where a robust mechanical contact is needed for signal routing, repair or prototyping.

Advantages

This 3.5 mm mono socket offers a compact footprint and straightforward mechanical connection for mono audio lines. Its construction is suitable for mounting on panels or printed circuit boards, which simplifies installation in enclosures and prototypes. The socket is designed to provide reliable contact for consistent signal transmission and to facilitate maintenance or replacement in repair tasks.

Suitable for

• Single-channel audio connections between instruments and amplifiers
• Panel-mounted mono input or output jacks on devices and enclosures
• PCB-mounted prototypes and small electronic audio projects
• Repair and replacement of existing mono 3.5 mm sockets

Key specifications

• Connector type: mono 3.5 mm socket
• Channel count: single-channel (mono)
• Mounting options: panel or PCB mounting compatible
• Application: audio signal transmission for instruments, devices and electronics

How to use

Mount the ShiverPeaks 3.5 mm mono socket according to the chosen mounting method: fit into a panel cutout or solder to the designated pads on a printed circuit board. Ensure correct mechanical fixation to prevent movement during jack insertion and removal. Connect the audio wiring or PCB traces to the socket terminals following the device’s signal and ground routing. After installation, test the connection using the intended mono audio source and destination to verify consistent signal transmission.

Recommendations

For reliable performance, use compatible 3.5 mm mono plugs and avoid exposing the socket to excessive mechanical stress or moisture. When soldering to PCB pads, follow appropriate soldering temperatures and procedures to protect the socket and board. For panel installations, ensure the cutout and fastening method match the socket dimensions to maintain secure mounting.
