Panel de parcheo 1U S/CONN 75065

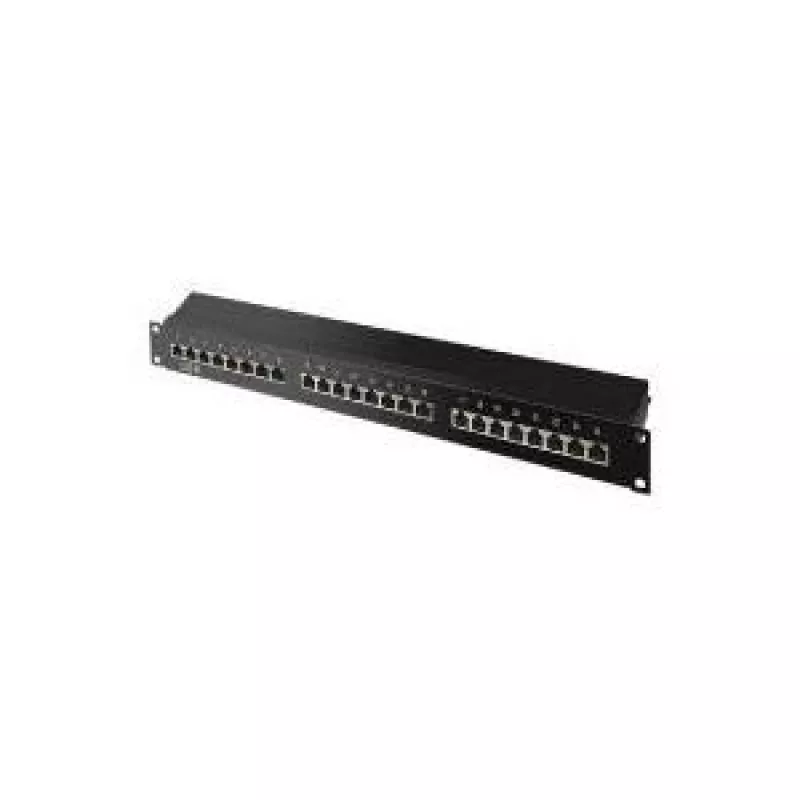

The ShiverPeaks Patch Panel 1U S/CONN 75065 is a 1U rack-mountable panel designed to terminate and organize CAT6 network cabling with RJ-45 connectors. Its compact black housing fits standard 19-inch racks and provides a central, accessible point for connecting and managing multiple network links in server rooms, wiring closets, and office racks. The panel supports structured cabling practices and helps maintain neat cable runs while preserving signal integrity for Gigabit Ethernet networks.

Advantages

This patch panel offers a space-efficient 1U form factor compatible with standard racks, enabling high-density port organization. The panel is designed for CAT6 cabling and RJ-45 terminations, ensuring proper electrical performance for up to Gigabit Ethernet. Its front-facing ports provide easy access for patching and reconfiguration, while the durable black chassis resists wear in professional environments. The component simplifies moves, adds, and changes by centralizing connections.

Suitable for

• Server rooms and data centers requiring organized CAT6 patching
• Office network racks and telecommunications cabinets
• Network closets and wiring panels for structured cabling systems
• Environments where front-access patching and quick reconfiguration are needed

Key specifications

• Form factor: 1U, rack-mountable for standard 19-inch racks
• Cable category support: CAT6
• Connector type: RJ-45 ports for patch cables
• Finish: black chassis suitable for professional rack environments
• Port accessibility: front-facing ports for easy patching and maintenance

How to use

Install the patch panel into a standard 19-inch rack using the included mounting points and secure it at the desired height within the rack (1U). Terminate CAT6 horizontal or backbone cables to the rear termination points following the appropriate wiring standard (T568A or T568B). Use compatible RJ-45 patch cables to connect devices to the front ports. Label ports as required to maintain clear identification of network runs and to facilitate troubleshooting or reconfiguration.

Recommendations

Route and separate power and data cabling where possible to reduce interference, and use proper cable management (ties, panels, or rings) to maintain bend radii and avoid stress at termination points. Verify wiring standard consistency across the network and test each terminated link with an appropriate network cable tester to confirm continuity and performance before commissioning.
