Panel de parcheo 1U S/CONN 75069

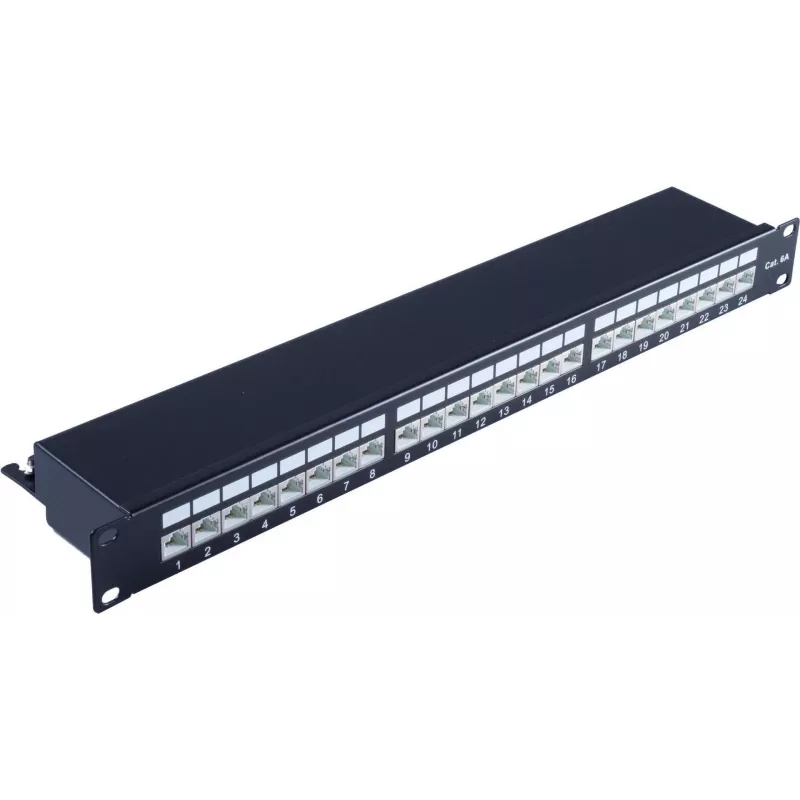

The ShiverPeaks Patch Panel 1U S/CONN 75069 is a 1U rack-mounted panel engineered for structured cabling in network racks. It supports 10 Gigabit Ethernet connections via RJ-45 ports and is designed to fit standard 19-inch racks. The panel's black finish and compact single-rack-unit size allow organized cable routing and simplified port identification in server rooms, wiring closets, and network cabinets.

Advantages

The patch panel provides high-speed connectivity for 10 Gigabit Ethernet environments while keeping a low profile at 1U height. RJ-45 connectors offer compatibility with common copper Ethernet cables, enabling straightforward termination and patching. Its standard rack form factor ensures easy integration into existing infrastructure and contributes to improved cable management and reduced clutter.

Suitable for

• Data centers and server rooms requiring 10 Gigabit Ethernet patching
• Small and medium business network cabinets
• Telecommunications closets and equipment racks
• Structured cabling installations in offices and commercial buildings

Key specifications

• Form factor: 1U rack-mount panel compatible with 19-inch racks
• Supported data rate: up to 10 Gbit/s (10000 Mbit/s)
• Connector type: RJ-45 copper ports
• Color and finish: black panel surface

How to use

Install the patch panel into a standard 19-inch rack using appropriate mounting hardware so the panel occupies a single rack unit. Terminate horizontal copper cabling to the rear of the RJ-45 ports following the T568A or T568B wiring scheme as required by your network design. Use standard patch cords to connect equipment and switches to the front RJ-45 ports. Label ports clearly to maintain accurate documentation and simplify future changes.

Recommendations

For optimal performance, use quality Cat6a or higher-rated copper cabling to support full 10 Gigabit throughput and minimize crosstalk. Ensure proper cable management with horizontal managers or Velcro straps to avoid excessive bending and stress on terminations. Perform continuity and certification tests after installation to verify link performance.
