Panel de parcheo S-Conn BS75065

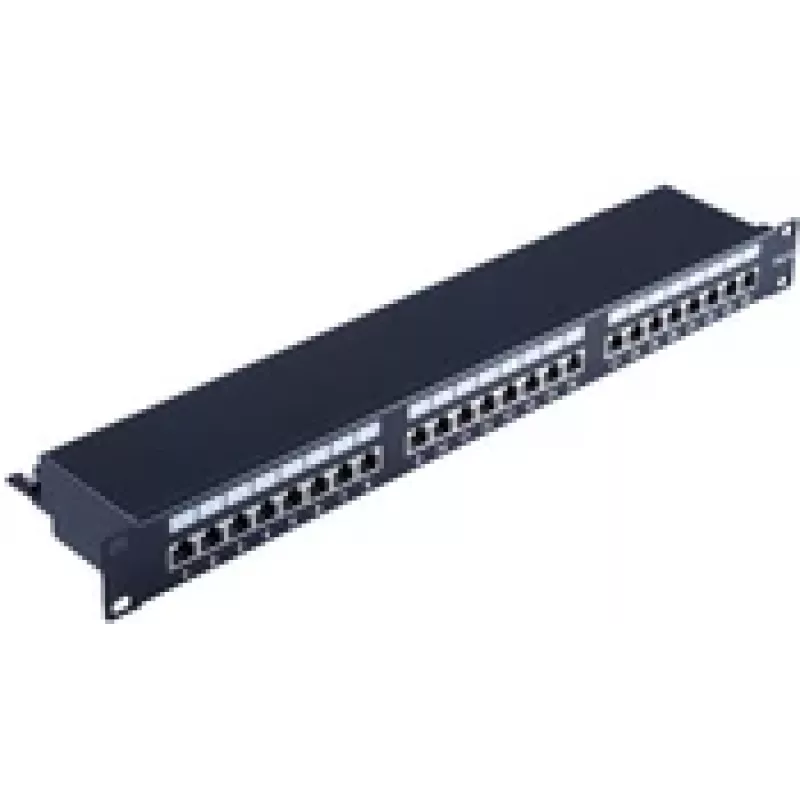

The S-Conn BS75065 patch panel by ShiverPeaks is a 24-port, rack-mount network component designed for organized cable termination and management. Built for use with Cat6 cabling, this black panel provides a compact footprint suitable for standard 19-inch racks and cabinets. Its durable metal construction supports consistent performance in both residential and small to medium professional network installations, helping to centralize connections and reduce cable clutter.

Advantages

The patch panel offers a straightforward solution for terminating Cat6 cables and consolidating network ports in a single location. Its 24-port layout simplifies patching and reconfiguration while the robust construction ensures long-term mechanical stability. The compact design conserves rack space and the standardized mounting aligns with common rack infrastructure, enabling quick integration into existing network setups.

Suitable for

• Small and medium-sized office networks
• Home networks requiring Cat6 organization
• Server rooms and telecommunications cabinets
• Structured cabling installations and network upgrades

Key specifications

• Number of ports: 24
• Cable category supported: Cat6
• Colour: Black
• Form factor: 19-inch rack compatible, compact depth
• Material: Durable metal construction

How to use

Mount the patch panel into a standard 19-inch rack or cabinet using appropriate screws and cage nuts. Terminate Cat6 cables on the rear IDC or punch-down connections according to the T568A or T568B wiring standard, ensuring consistent pairing and pair twisting. Route and secure incoming and outgoing cables with cable ties or management brackets to maintain clear separation and reduce strain on terminations. Label ports for easy identification and connect patch cords on the front ports to network switches or other active equipment.

Recommendations

To preserve signal integrity and maintain performance with Cat6 cabling, avoid over-tightening cable ties near terminations, maintain bend radius guidelines, and keep patch runs within recommended length limits. Periodically inspect terminations and mounting hardware to ensure continued reliability.
