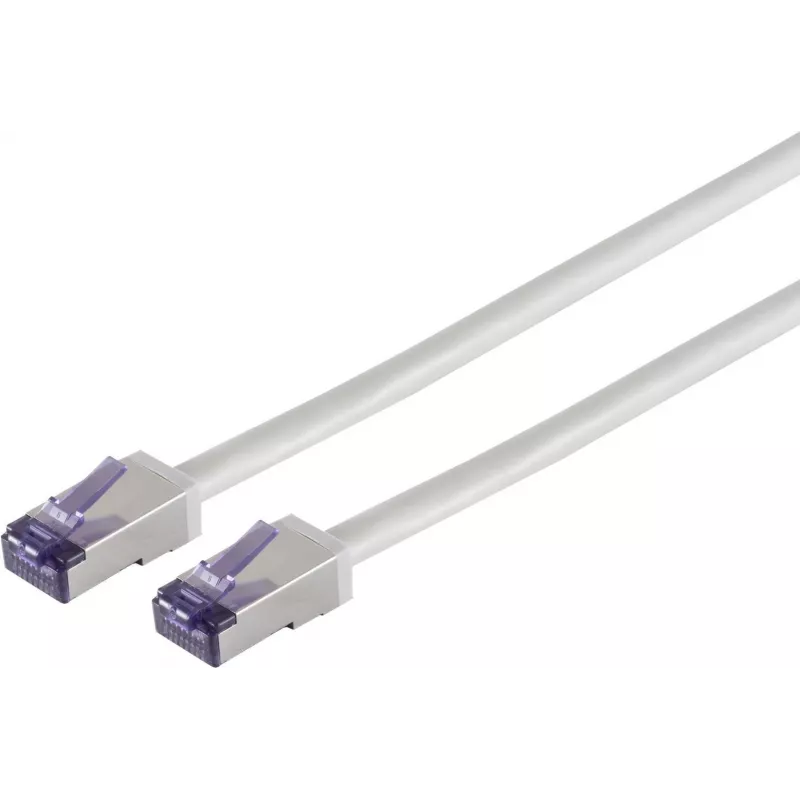

SHIVERPEAKS S/CONN maximum connectivity cable patch Cat. 6A Flex S/FTP, 1,0 m, gris 08-28020

In high-density network environments, standard patch cables often fail when space is tight and flexibility is paramount. The SHIVERPEAKS S/CONN maximum connectivity Cat. 6A Flex S/FTP Patch Cable solves this by combining superior shielding with an exceptionally pliable design, ensuring reliable 10 Gigabit links even in cramped racks or behind furniture.

Who is it for

Network administrators, IT professionals, and demanding home users who need a dependable, flexible cable for 10GBASE-T connections in data centers, server rooms, or structured cabling systems. Its LSZH jacket also makes it ideal for public buildings and areas with strict fire safety regulations.

Main features

• Cat. 6A performance with S/FTP shielding (PiMF) for maximum immunity to alien crosstalk and EMI.
• Highly flexible stranded copper conductors (AWG 26/7) allow tight bend radii without damage.
• Gold-plated RJ45 connectors ensure corrosion resistance and reliable contact over thousands of mating cycles.
• Supports Power over Ethernet up to 4PPoE (IEEE 802.3bt), delivering both data and power over a single cable.
• LSZH (Low Smoke Zero Halogen) jacket emits low smoke and no toxic halogens in case of fire.

Specifications

• Cable standard: Category 6A (Class EA)
• Shielding: S/FTP (Screened Foiled Twisted Pair, PiMF)
• Length: 1.0 m
• Colour: Grey
• Connectors: RJ45 (8P8C) male to RJ45 (8P8C) male, gold-plated contacts
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor: Stranded copper (Cu), AWG 26/7
• Jacket: LSZH (Low Smoke Zero Halogen)
• Wiring: TIA/EIA-568B, 4 twisted pairs
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Backward compatible with Cat. 6, Cat. 5e, Cat. 5

Tips

For optimal performance, avoid bending the cable tighter than four times its outer diameter. When used in PoE applications, ensure your power sourcing equipment supports the required standard. The grey colour blends seamlessly into most office and industrial environments.
