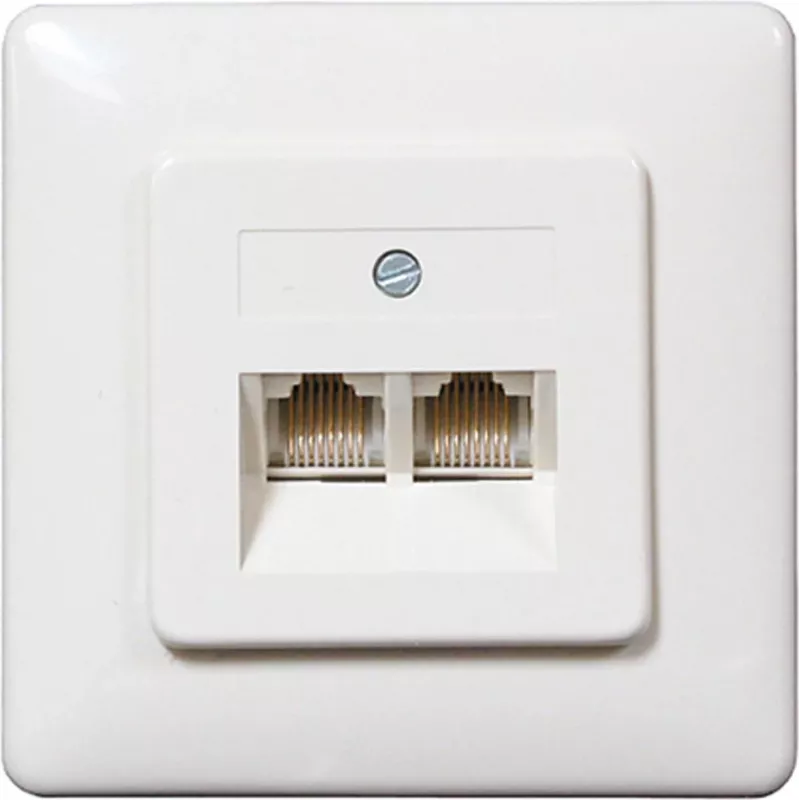

SHIVERPEAKS Toma de pared ISDN, 2 conectores hembra RJ45, empotrada, resistencia de terminación desconectable, blanca 69989

ISDN wall outlet with two RJ45 sockets for flush-mount installation, featuring a switchable 100-ohm termination resistor for reliable S0 bus termination. The outlet uses LSA-Plus insulation displacement connectors for tool-free wiring and has a rear cable entry for a clean installation.

Advantages

Switchable termination resistor allows flexible configuration as the last device on the ISDN bus. Gold-plated contacts ensure long-term signal integrity. Compact 80 x 80 mm cover plate fits standard European flush-mount boxes.

Suitable for

• Connecting ISDN terminals, NTBA units, or PBX systems to the S0 bus
• Residential and commercial telecommunications installations
• Flush-mount wall boxes with a mounting depth of at least 30 mm

Key specifications

• 2 x RJ45 sockets (8P8C)
• Switchable 100-ohm termination resistor
• LSA-Plus insulation displacement connectors
• Rear cable entry
• Flush-mount installation
• Unshielded (UTP)
• Colour: Pure White (RAL 9010)
• Cover plate dimensions: 80 x 80 mm
• Mounting depth: 30 mm

Recommendations

Ideal for terminating ISDN S0 bus lines in wall outlets. Ensure the termination resistor is switched on only at the last outlet on the bus to prevent signal reflections.
