Shuttle Slim AI PC DN11H5 Intel Core Ultra 5 125H, gráfica Intel Arc, 2xHDMI, 2x DP, 4x 2.5Gbit LAN, VESA, funcionamiento continuo 24/7

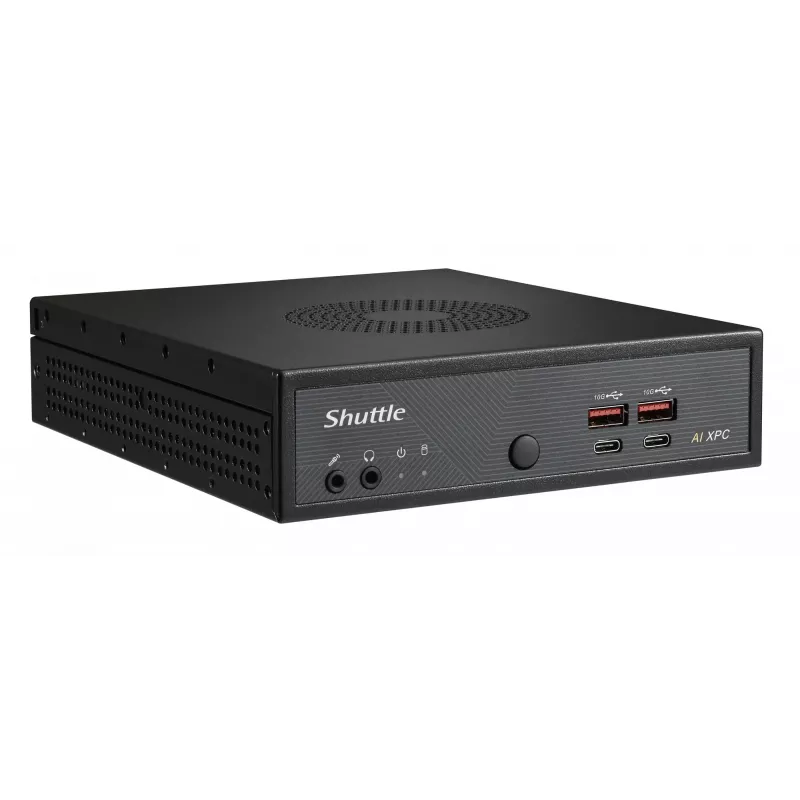

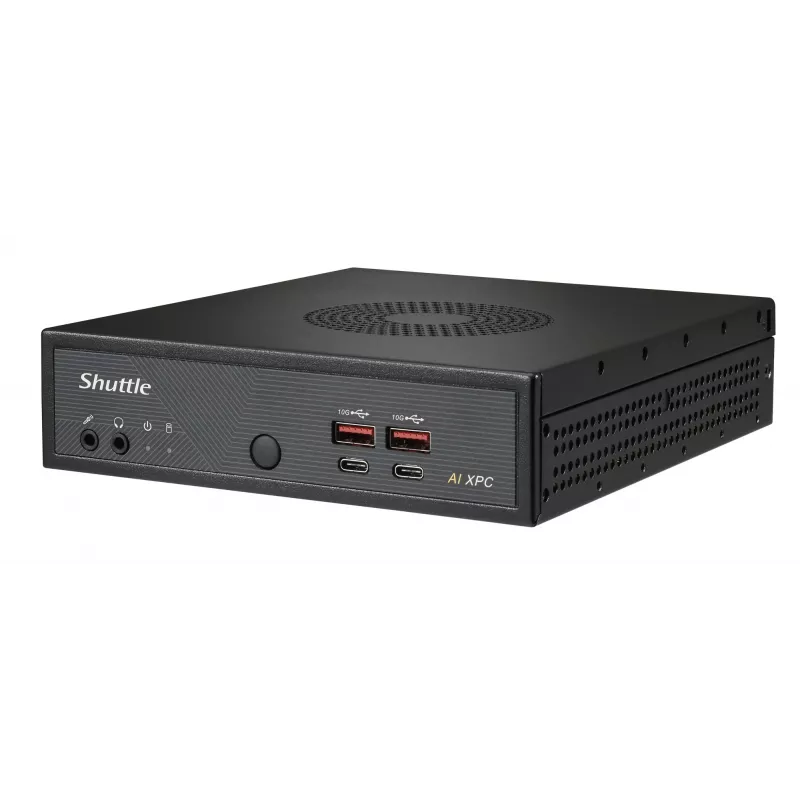

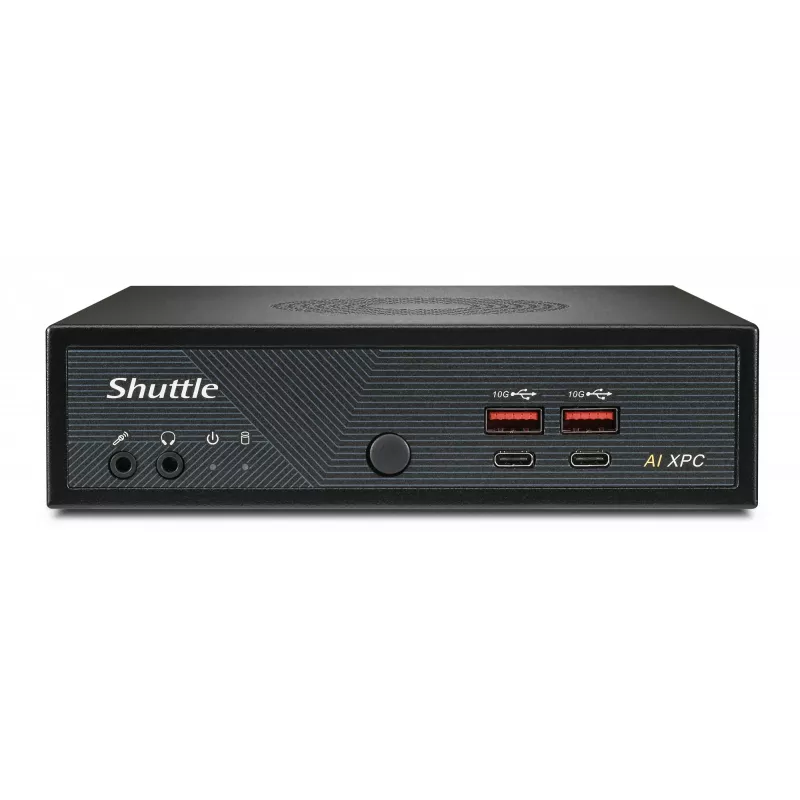

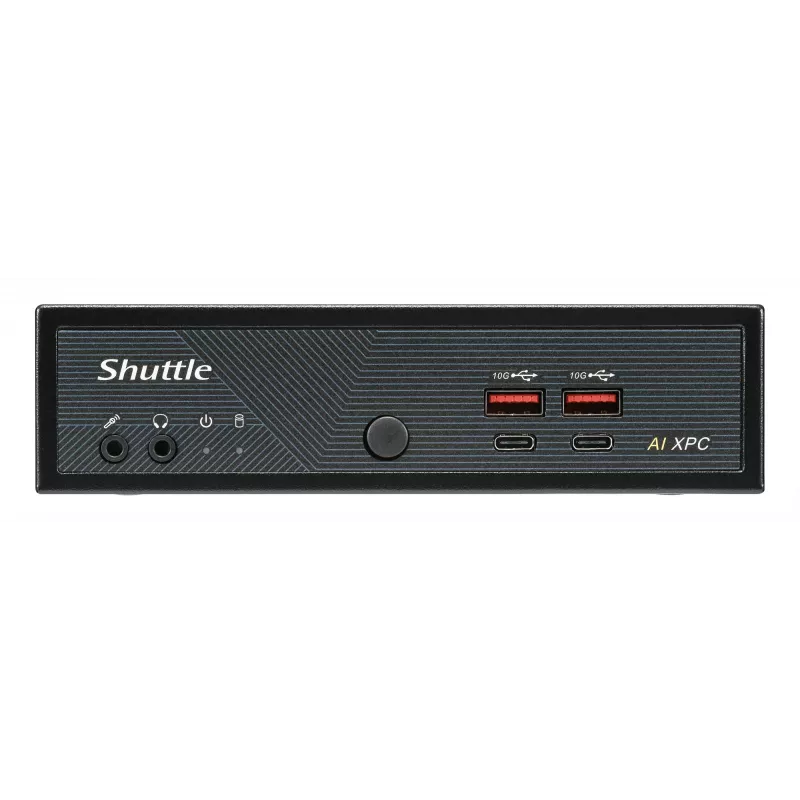

The Shuttle DN11H5 Mini PC is a 1.35‑liter barebone system powered by an Intel Core Ultra 5 125H processor with Intel Arc graphics. Designed for continuous 24/7 operation, it supports up to 96 GB of DDR5 RAM and multiple high-speed interfaces, offering a compact solution for AI-accelerated computing, multimedia tasks and business applications. The platform combines CPU, GPU and a dedicated NPU to deliver up to 34 TOPS of system inference performance and includes four 2.5G LAN ports, multiple display outputs and three M.2‑2280 slots for fast SSD storage.

Advantages

The Shuttle Slim AI DN11H5 provides a balance of performance and compactness: a high-efficiency Intel Core Ultra 5 125H CPU, Intel Arc graphics and an integrated NPU for neural network acceleration. Its rich connectivity—four 2.5Gbit LAN ports, two HDMI, two DisplayPort, eight high-speed USB-C/USB-A ports and three M.2 slots—supports data‑intensive and multi-display setups. The 1.35 L chassis, active cooling and support for up to 96 GB DDR5 RAM make it suitable for continuous operation in business and industrial environments.

Suitable for

• Edge AI inference and neural network acceleration
• Network video recording and multi‑camera surveillance systems
• Image processing, visualization and machine vision
• Virtual reality simulations and multimedia production
• Industrial control, automation and monitoring

Key specifications

• Processor family: Intel Core Ultra 5 (model 125H, boost up to 4.5 GHz)
• Graphics: Intel Arc integrated graphics plus dedicated NPU (up to 34 TOPS system performance)
• Memory support: up to 96 GB DDR5 RAM

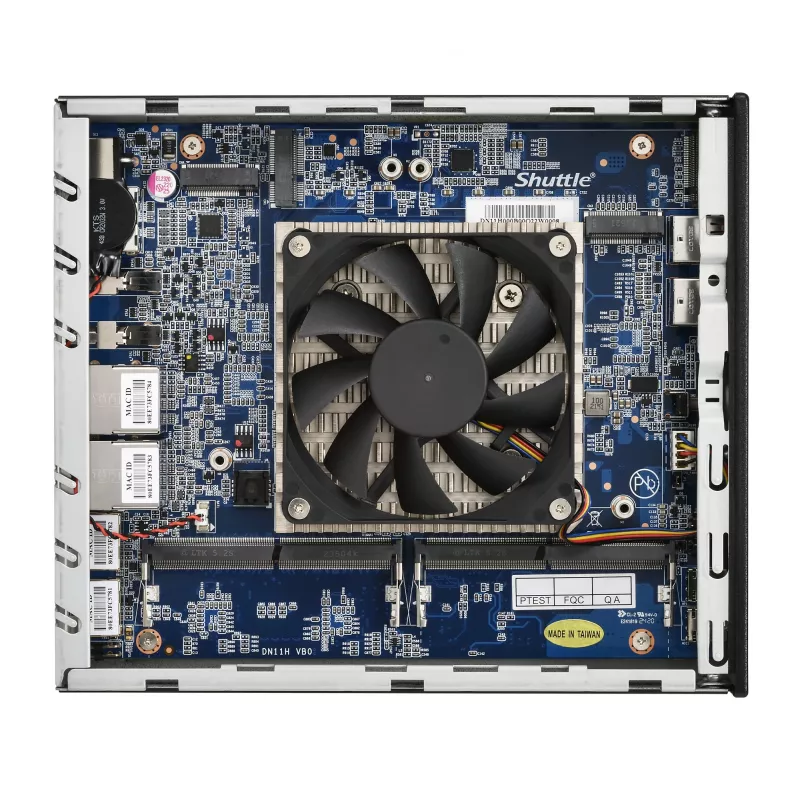

• Storage: three M.2‑2280 slots (PCIe for NVMe SSDs)
• Networking: 4 × 2.5Gbit LAN ports

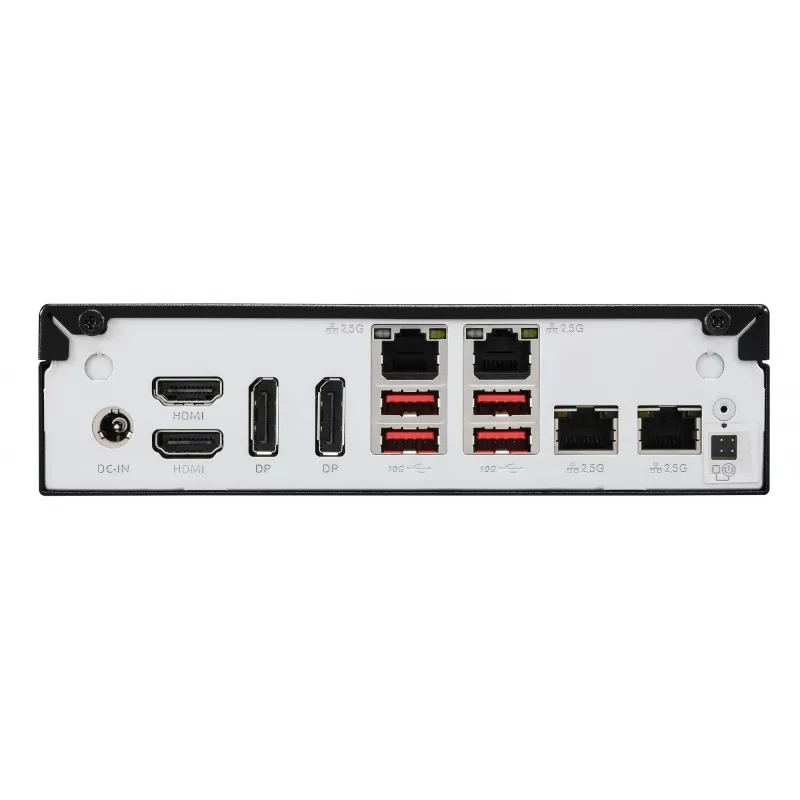

• Display outputs: 2 × HDMI, 2 × DisplayPort (UHD capable)
• USB: multiple high-speed USB‑C and USB‑A ports (total up to eight)
• Chassis volume and weight: ~1.35 L, weight 1.23 kg
• Color: Black

How to use

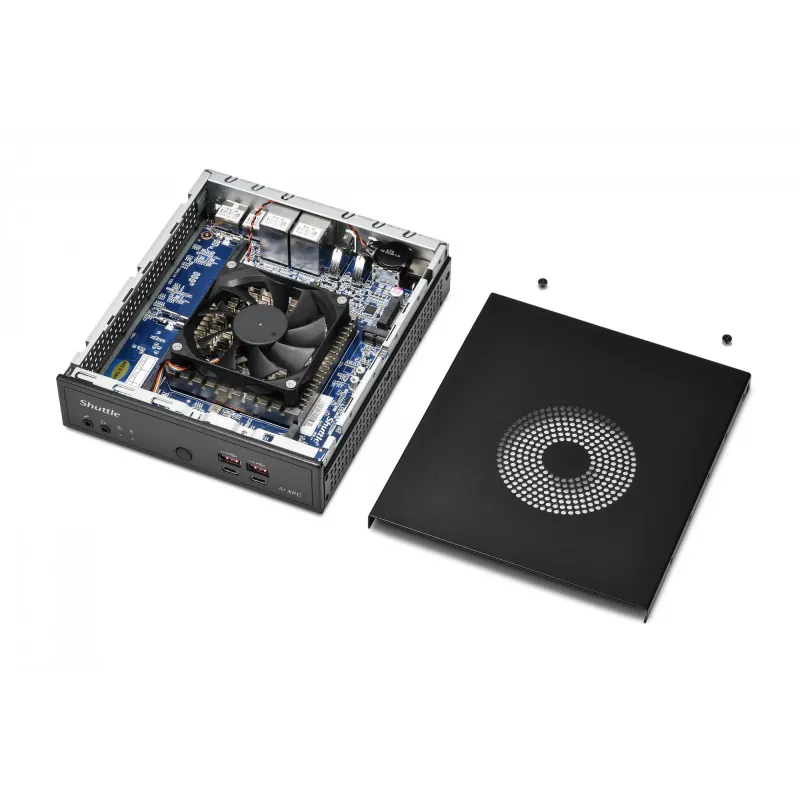

Install memory modules and M.2 SSDs according to the Shuttle DN11H5 service manual, connect displays to HDMI or DisplayPort outputs and attach network cables to the 2.5G LAN ports for high-bandwidth connectivity. Install your operating system and AI or multimedia applications; configure the BIOS/firmware settings for performance or power profiles as required. For multi‑display or GPU‑accelerated workloads, verify driver and runtime support for Intel Arc and the onboard NPU to ensure compatibility with your software stack.

Recommendations

Use active cooling clearance around the mini PC and place it in a ventilated environment for stable 24/7 operation. For AI inference and storage‑intensive tasks, populate available M.2 slots with NVMe SSDs and install sufficient DDR5 RAM (up to 96 GB). Keep firmware and drivers up to date to maintain compatibility and performance.
