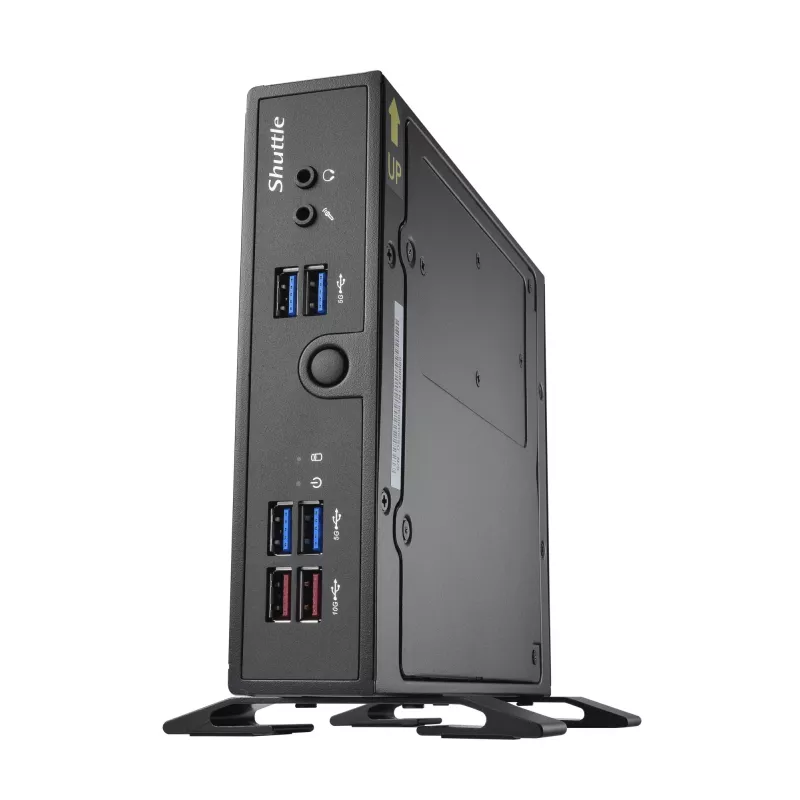

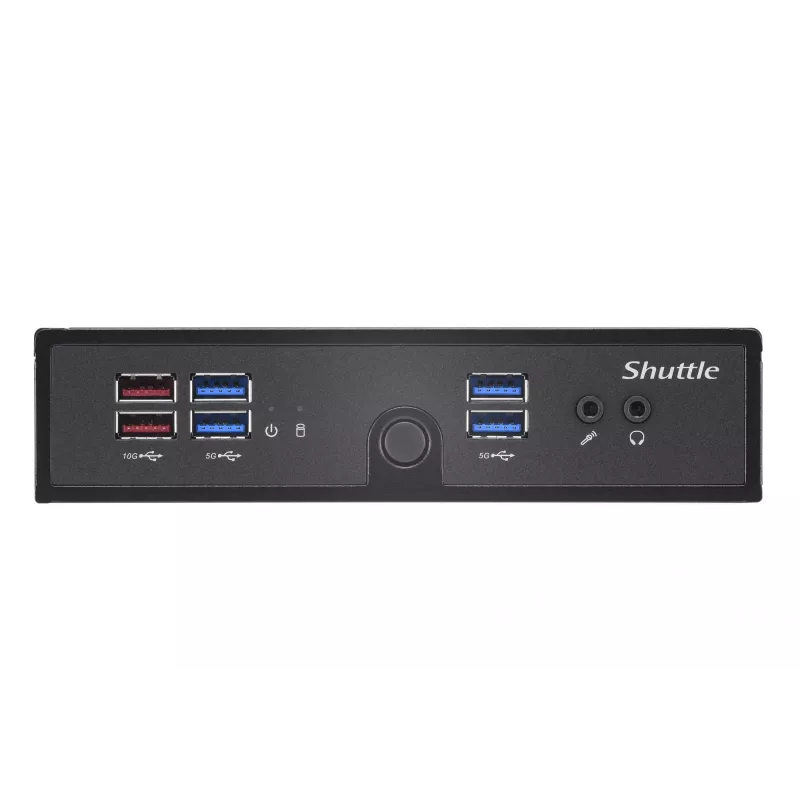

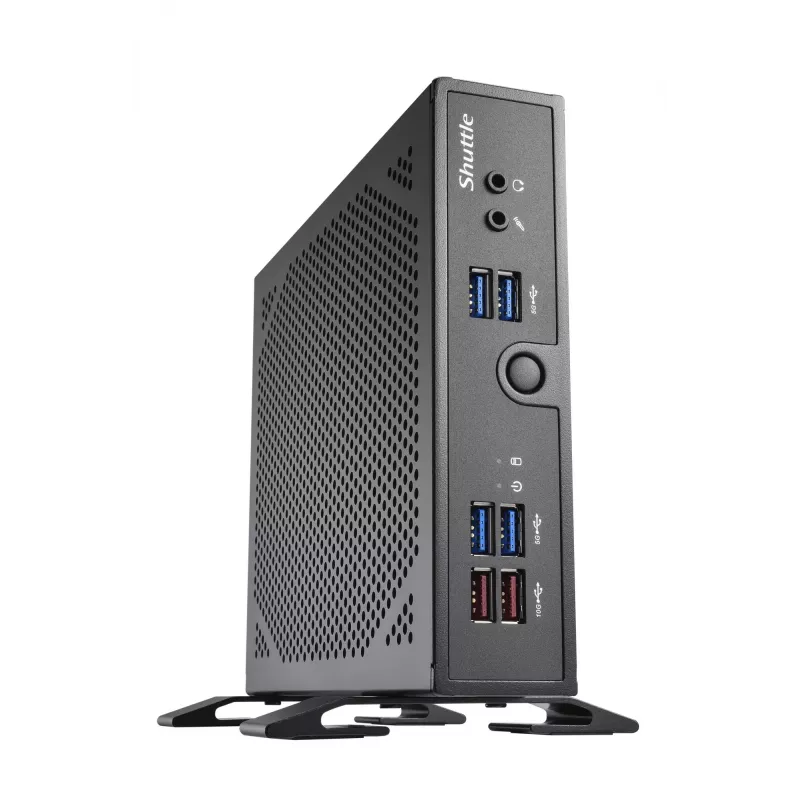

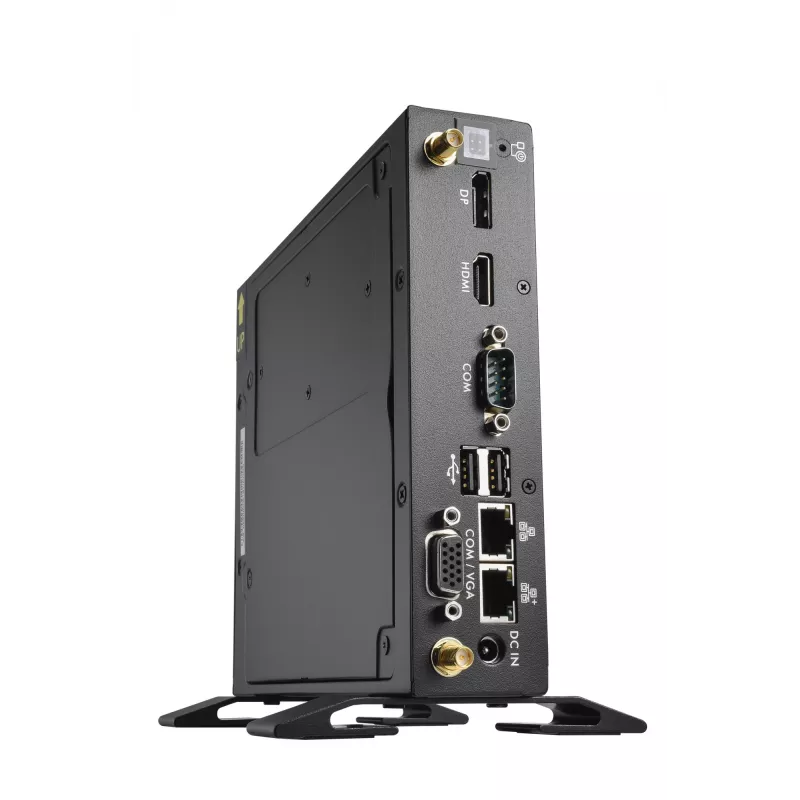

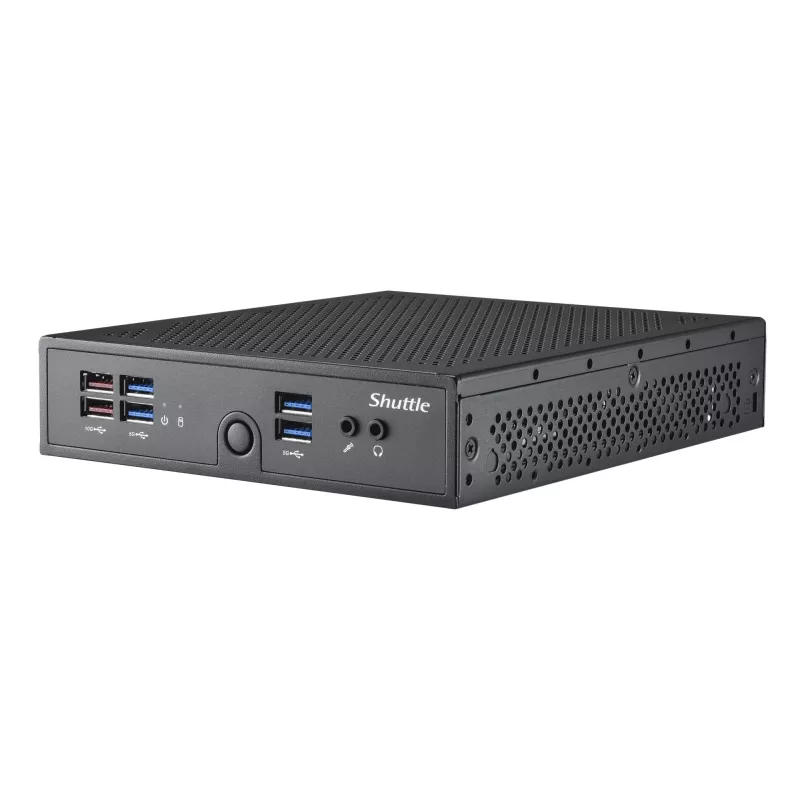

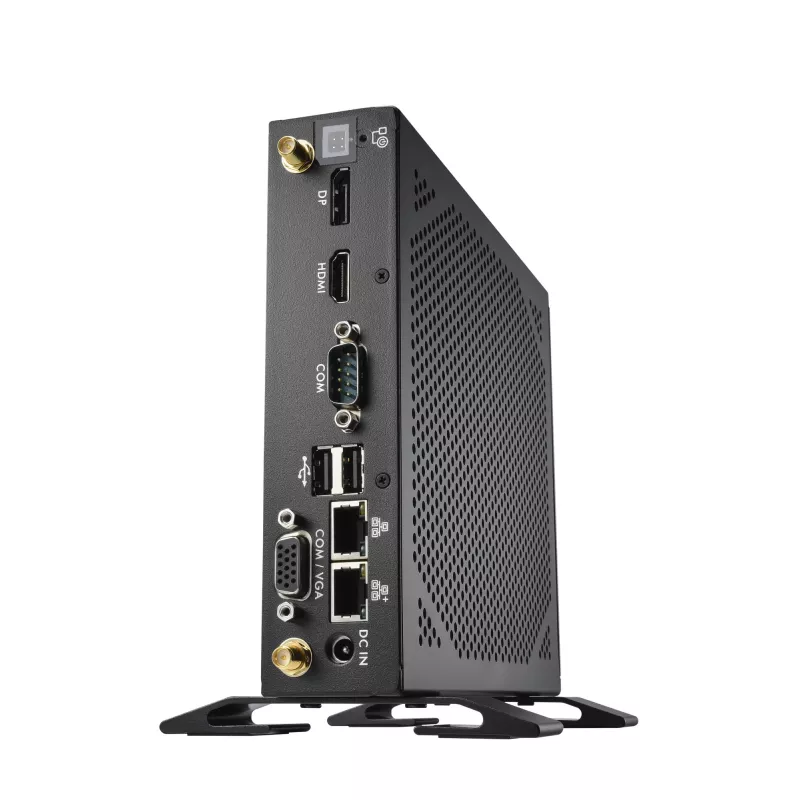

Shuttle XPC slim Barebone DS50U7, i7-1355U, 2x LAN (1x 2,5 Gbit, 1x 1 Gbit), 1x COM, 1x HDMI, 1x DP, 1x VGA, sin ventilador, funcionamiento continuo 24/7

The Shuttle XPC slim DS50U7 is a fanless slim mini PC in a 1.3-litre metal chassis, equipped with an Intel i7-1355U (12th/13th gen architecture) ULV processor. It supports up to 64 GB DDR5 memory, room for one 2.5" drive and two M.2-2280 SSDs, and provides multiple video outputs (HDMI, DisplayPort and VGA) as well as dual LAN ports (1x 2.5 Gbit and 1x 1 Gbit). Passive cooling enables quiet, energy-efficient operation suitable for continuous 24/7 use in professional environments.

Advantages

The DS50U7 combines a compact metal housing with a fanless design for silent and maintenance-light operation. Its Intel i7-1355U processor delivers sufficient performance for 4K/2160p60 video playback while supporting up to 64 GB DDR5 RAM and multiple storage options. Connectivity includes dual network ports, three video outputs and an optional 4G/5G module via an M.2 slot, making the system versatile for industrial and commercial installations.

Suitable for

• Digital signage and multimedia playback (UHD/4K)
• Point of Sale (POS) systems and kiosks
• Thin client and office PC deployments
• Industrial control panels and 24/7 monitoring stations

Key specifications

• Processor: Intel i7-1355U (ULV, up to 5 GHz boost)
• Memory support: up to 64 GB DDR5 (two SO-DIMM slots)
• Storage: 1x 2.5" drive bay + 2x M.2-2280 SSD slots

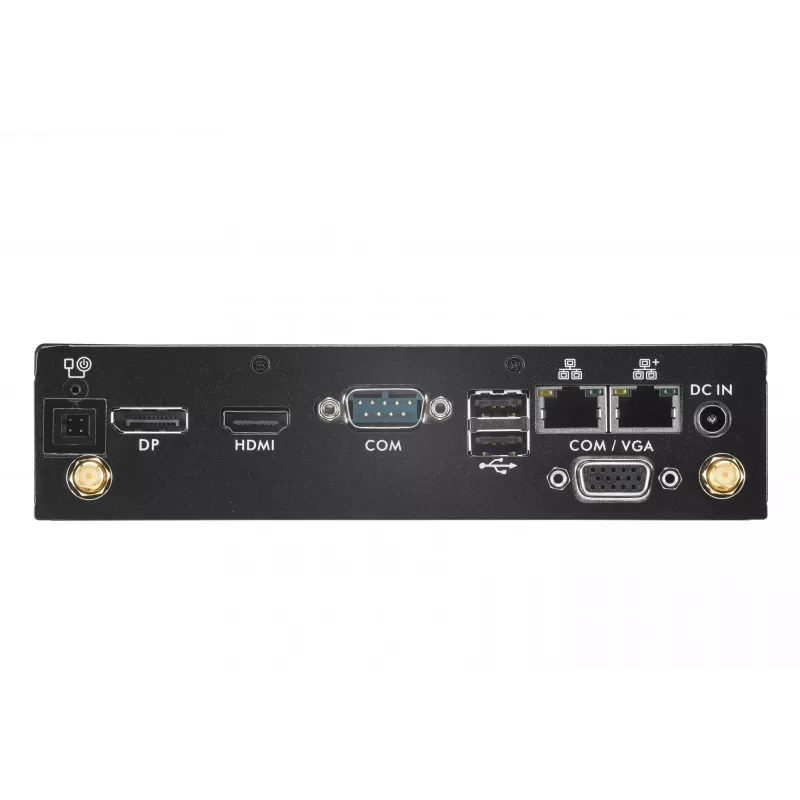

• Video outputs: HDMI, DisplayPort, VGA (D-Sub) — supports UHD/4K @60 Hz
• Network: 1x 2.5 Gbit LAN, 1x 1 Gbit LAN
• Cooling: fanless (passive cooling), suitable for 24/7 operation
• Chassis: 1.3-litre metal housing, weight ~1.6 kg, colour: black

How to use

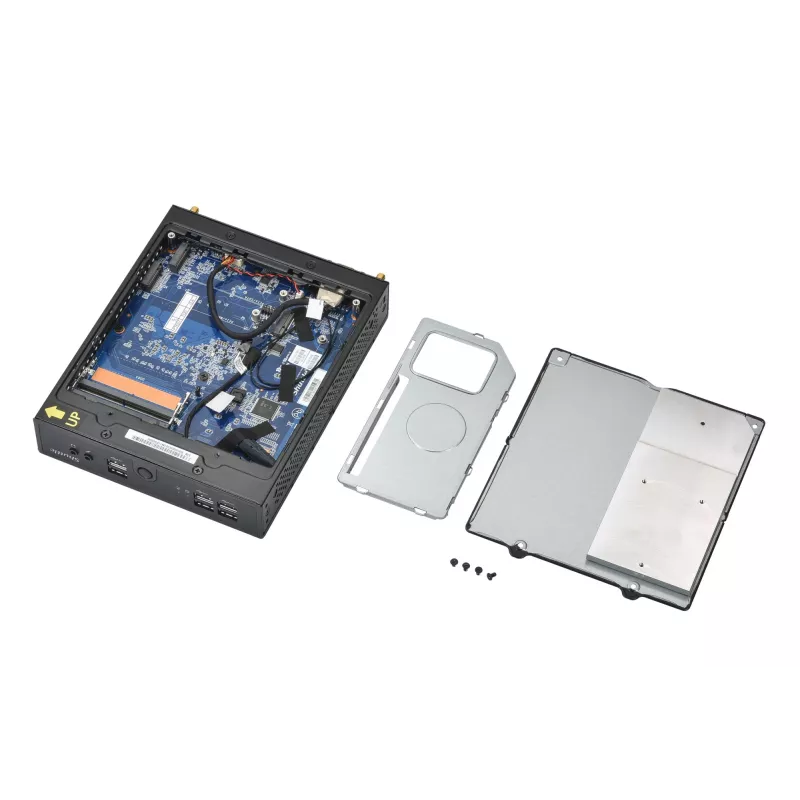

Install memory modules and storage devices into the available slots: two DDR5 SO-DIMM modules, one 2.5" drive and up to two M.2-2280 SSDs. Connect displays using HDMI, DisplayPort or VGA as required and attach network cables to the appropriate LAN ports. If mobile broadband is needed, install an optional 4G/5G module in the second M.2 slot using the compatible WWN04 accessory. Power on and install the desired operating system and drivers; the barebone ships without an OS preinstalled.

Recommendations

For reliable long-term operation, use low-voltage DDR5 SO-DIMM modules from reputable manufacturers, ensure adequate ventilation around the chassis despite passive cooling, and confirm compatibility of any 4G/5G module with the DS50U7 before installation.
