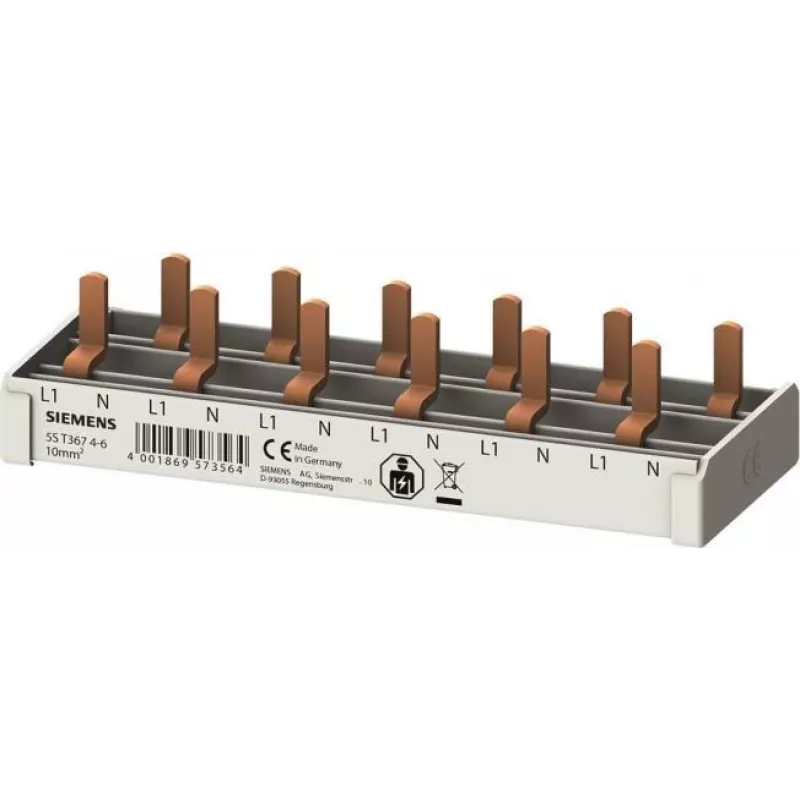

Siemens 5ST36746 Peine de conexión de clavijas compacto 10mm² 6TE monofásico 63A

The Siemens 5ST36746 is a high-quality compact pin busbar designed for use with Siemens SENTRON modular installation devices. It provides a reliable and efficient power distribution solution for electrical installations, ensuring secure connections and easy wiring.

Advantages

This pin busbar offers a compact design that saves space in distribution boards. With a conductor cross-section of 10 mm² and a rated current of 63 A, it supports high power loads. The 1-phase configuration and 6 module widths (6TE) allow for flexible connection of up to 6 single-pole devices. Made from copper conductor with plastic insulation, it ensures durability and safety.

Suitable for

• Modular electrical installations in residential and commercial buildings
• Power distribution for lighting, heating, and general electrical circuits
• Use with Siemens SENTRON circuit breakers, RCDs, and other modular devices

Key specifications

• Busbar Type: Pin Busbar
• Design: Compact
• Number of Phases: 1-phase
• Conductor Cross-section: 10 mm²
• Number of Module Widths: 6 TE
• Rated Operational Current (Ie): 63 A
• Rated Operational Voltage (Ue): 230/400 V AC
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Number of Poles: 6
• Connection Type: Pin
• Material: Copper (conductor), Plastic (insulation)
• Mounting Type: For modular devices on DIN rail
• Compatibility: Siemens SENTRON modular installation devices
• Degree of Protection (IP): IP20 (when installed)
• Flammability Class (Insulation): UL 94 V-0

Recommendations

For optimal performance, ensure compatibility with your specific Siemens SENTRON devices. Always follow local electrical codes and regulations during installation.
