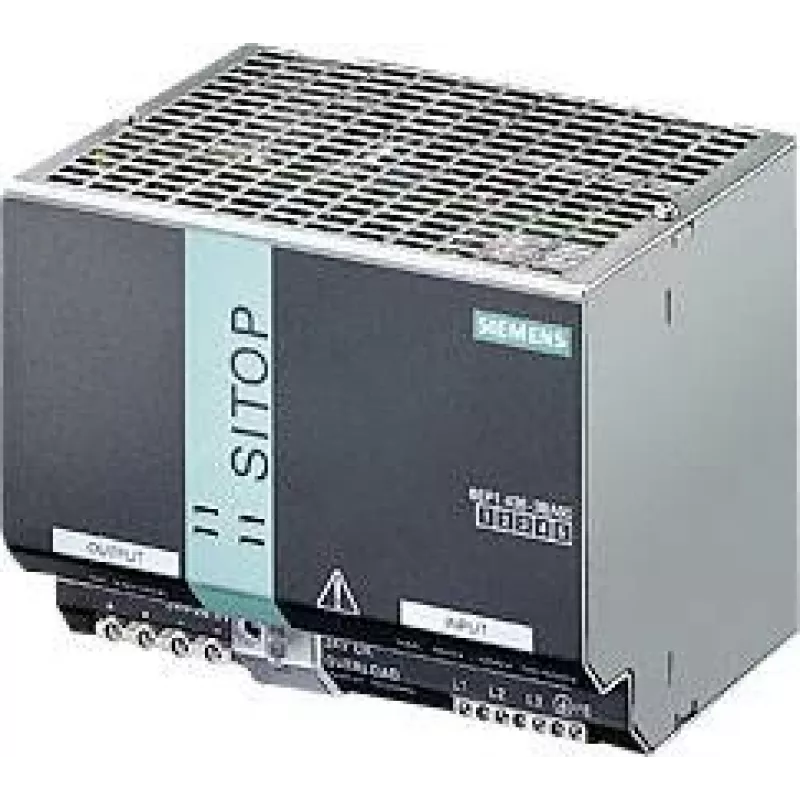

Siemens fuente de alimentación para carril DIN 6EP1436-3BA00-8AA0 | 24V DC 10A 240W

Industrial control engineers and panel builders rely on the Siemens 6EP1436-3BA00-8AA0 DIN rail power supply to deliver stable 24 V DC power in automation cabinets, machine tools, and process control systems. This single-phase unit converts 85–264 V AC input into a regulated 24 V DC output with a nominal current of 10 A and 240 W power, ensuring dependable operation for PLCs, sensors, actuators, and other industrial loads.

Key specifications

• Input voltage: 85–264 V AC (1-phase)
• Input frequency: 47–63 Hz
• Nominal output voltage: 24 V DC
• Adjustable output voltage: 22–28 V DC
• Nominal output current: 10 A
• Output power: 240 W
• Efficiency: up to 90%
• Mounting: DIN rail (35 mm)
• Operating temperature: -25 to +70 °C (derating above +60 °C)
• Overload protection: constant current, auto-recovery
• Short-circuit protection: yes
• Parallel operation: yes, for increased power
• MTBF: > 1,000,000 h
• Input current: 2.5 A at 230 V AC / 4.5 A at 120 V AC
• Output ripple and noise: < 100 mVpp
• Connection: screw terminals

Why choose it

The unit’s wide input voltage range and high efficiency make it suitable for global industrial environments, while its robust overload and short-circuit protection ensure continuous operation even under demanding load conditions. The adjustable output allows fine-tuning for specific application requirements.

Ideal use cases

• Powering PLC and automation systems
• Supplying sensors and actuators in control panels
• Machine building and process control applications
• Parallel operation for higher power needs

Good to know

The power supply mounts on standard 35 mm DIN rails and uses screw terminals for secure wiring. It is designed for operation in temperatures from -25 °C to +70 °C, with derating above +60 °C to maintain reliability.
