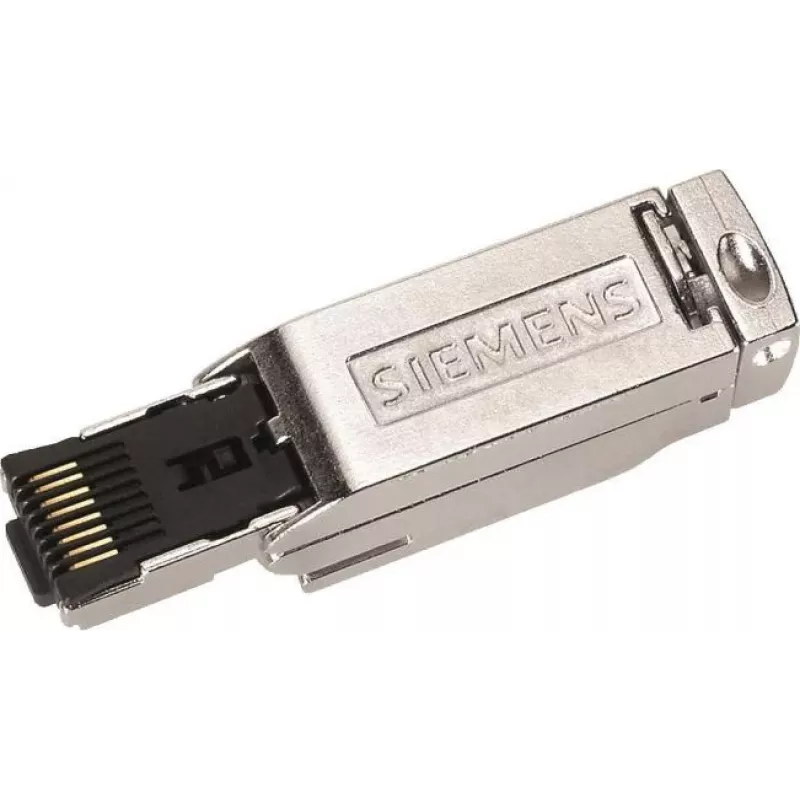

Siemens IE FC Conector RJ45 Carcasa metálica 6GK19011BB112AA0

The Siemens IE FC RJ45 Connector with metal housing is a robust, high-performance field-terminable RJ45 plug designed for Industrial Ethernet and PROFINET networks. It enables fast and reliable cable assembly without special tools, using the FastConnect insulation displacement contact (IDC) technology. The metal housing provides excellent shielding and durability, making it ideal for harsh industrial environments.

Advantages

Fast and easy field termination without special tools; fully shielded metal housing for superior EMC protection; supports Gigabit Ethernet (10/100/1000 Mbit/s); robust design for industrial use; high mating cycle life (>500).

Suitable for

• Industrial Ethernet networks
• PROFINET installations
• Connecting Siemens IE FC Cable 2x2
• Applications requiring high shielding and durability

Key specifications

• Connector Type: RJ45 Plug
• Cable Outlet Angle: 180°
• Data Rate: 10/100/1000 Mbit/s
• Cable Compatibility: Siemens IE FC Cable 2x2
• Termination Method: FastConnect (IDC)
• Housing Material: Metal
• Shielding: Fully shielded
• IP Protection Class: IP20
• Operating Temperature: -40 to +70 °C
• Approvals: CE, UL, cUL, RoHS
• Colour: Silver/Metallic

Recommendations

For optimal performance, use with Siemens IE FC Cable 2x2 and ensure proper strain relief. Suitable for use in control cabinets and junction boxes.
