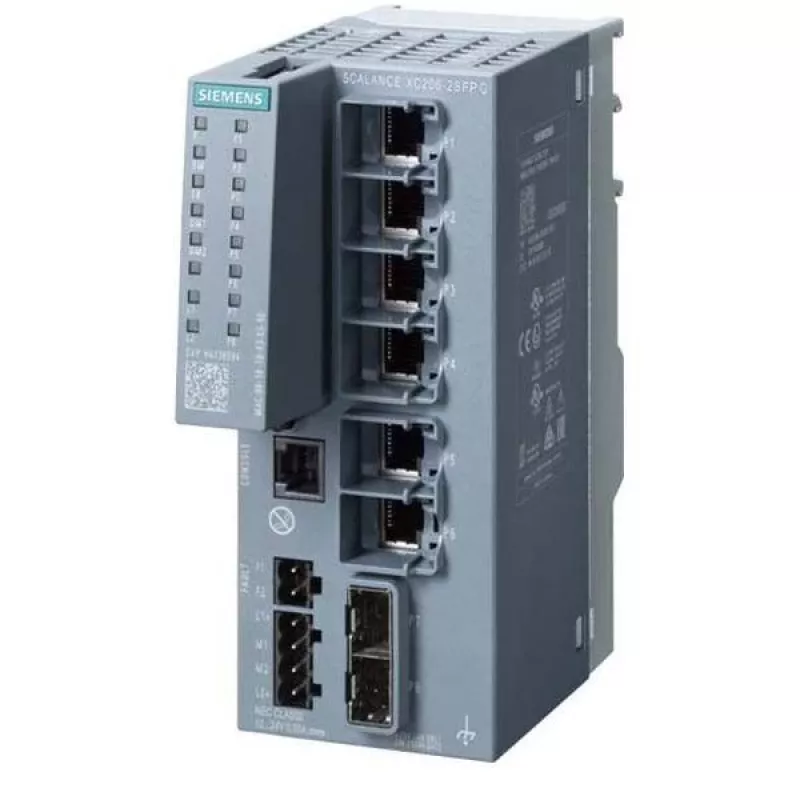

Siemens SCALANCE XC206-2SFP G Switch Ethernet industrial gestionado, 6x Gigabit RJ45, 2x SFP, carril DIN, 24V DC, -40 a 70°C 6GK52062GS002AC2

With a switching capacity of 16 Gbit/s, the Siemens SCALANCE XC206-2SFP G delivers high-performance industrial networking in a compact metal housing. This managed switch offers six Gigabit RJ45 ports and two SFP slots for fiber optic connectivity, making it suitable for demanding automation environments.

Overview

The SCALANCE XC206-2SFP G is a managed industrial Ethernet switch designed for reliable data communication in harsh conditions. It supports PROFINET IO device functionality and is compliant with PROFINET Conformance Class CC-B, ensuring seamless integration into Siemens automation systems.

What stands out

• Redundant 24 V DC power supply for high availability
• Wide operating temperature range from -40 °C to +70 °C
• Supports MRP, RSTP, and HRP redundancy protocols
• VLAN, QoS, and IGMP snooping for efficient traffic management
• Metal housing for durability in industrial settings

Technical details

• Device type: Managed industrial Ethernet switch
• Ethernet ports: 6 x 10/100/1000 Mbit/s RJ45
• Fiber optic ports: 2 x 100/1000 Mbit/s SFP slots
• Management: Web-based, SNMP, PROFINET IO device
• Redundancy protocols: MRP, RSTP, HRP
• Power supply: Redundant 24 V DC (18.5–32 V DC)
• Mounting: DIN rail
• Operating temperature: -40 °C to +70 °C
• Protection class: IP20
• Supported protocols: PROFINET, EtherNet/IP, Modbus/TCP, LLDP, NTP, DHCP, SNMPv1/v2c/v3
• Switching capacity: 16 Gbit/s
• VLAN support: IEEE 802.1Q
• QoS support: Yes
• IGMP snooping: IGMPv1/v2/v3
• Housing material: Metal
• Power consumption: Max. 8.5 W
• PROFINET conformance class: CC-B
• Certifications: CE, UL, cULus, FM, ATEX, IECEx, DNV GL, ABS, LR, RINA, BV, NK, KR, CCS

Our verdict

A robust managed switch for industrial networks, offering high port density, fiber uplinks, and extensive redundancy features in a compact form factor.
