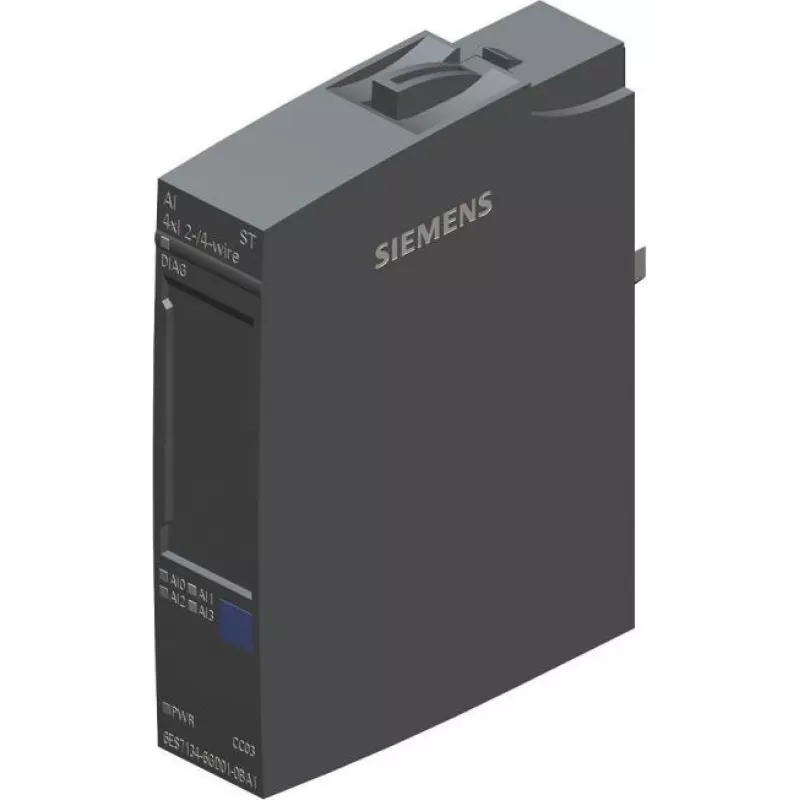

Siemens SIMATIC ET 200SP módulo de entrada analógica AI 4XI 2/4 hilos Standard 6ES7134-6GD01-0BA1

With 16-bit resolution and a ±0.1% basic error limit, this analog input module delivers exceptional measurement accuracy for demanding industrial automation. The Siemens SIMATIC ET 200SP AI 4XI 2-/4-Wire Standard (6ES7134-6GD01-0BA1) is a high-feature module designed for precise acquisition of voltage and current signals in distributed control systems.

Overview

Part of the SIMATIC ET 200SP series, this module provides four analog input channels, each configurable for 2-wire or 4-wire connection. It supports a wide range of signal types, including voltage (±10V, ±5V, ±2.5V, 1-5V, 0-10V) and current (±20mA, 0-20mA, 4-20mA), making it versatile for various sensors and transmitters. The module features galvanic isolation between channels and the backplane bus, ensuring reliable operation in noisy environments. Comprehensive diagnostics include wire break, short circuit, overflow/underflow, and supply voltage monitoring, enabling rapid fault detection and reduced downtime.

What stands out

• High resolution: 16-bit (including sign) for precise measurements
• Low basic error limit: ±0.1% at 25°C for both voltage and current
• Flexible input ranges: supports common voltage and current signals
• Robust diagnostics: wire break, short circuit, overflow/underflow, supply voltage monitoring
• Galvanic isolation between channels and backplane bus
• Wide operating temperature range: -30°C to +60°C (horizontal installation)
• Low power consumption: max 0.8 W
• High Feature (HF) for advanced functionality

Technical details

• Module type: Analog input module
• Series: SIMATIC ET 200SP
• Number of analog inputs: 4
• Input signal types: Voltage, current
• Voltage input ranges: ±10V, ±5V, ±2.5V, 1-5V, 0-10V
• Current input ranges: ±20mA, 0-20mA, 4-20mA
• Resolution: 16 bit (including sign)
• Basic error limit (voltage): ±0.1% at 25°C
• Basic error limit (current): ±0.1% at 25°C
• Isolation: Yes, between channels and backplane bus
• Diagnostic functions: Wire break, short circuit, overflow/underflow, supply voltage monitoring, module diagnostics
• Supply voltage (internal): 24V DC (via backplane bus)
• Power consumption: Max 0.8 W
• Operating temperature range: -30°C to +60°C (horizontal installation)
• Mounting type: ET 200SP BaseUnit
• Configuration software: TIA Portal
• Firmware update: Yes
• High Feature (HF): Yes

Our verdict

An excellent choice for precise analog signal acquisition in ET 200SP systems, offering high accuracy, robust diagnostics, and flexible configuration.
